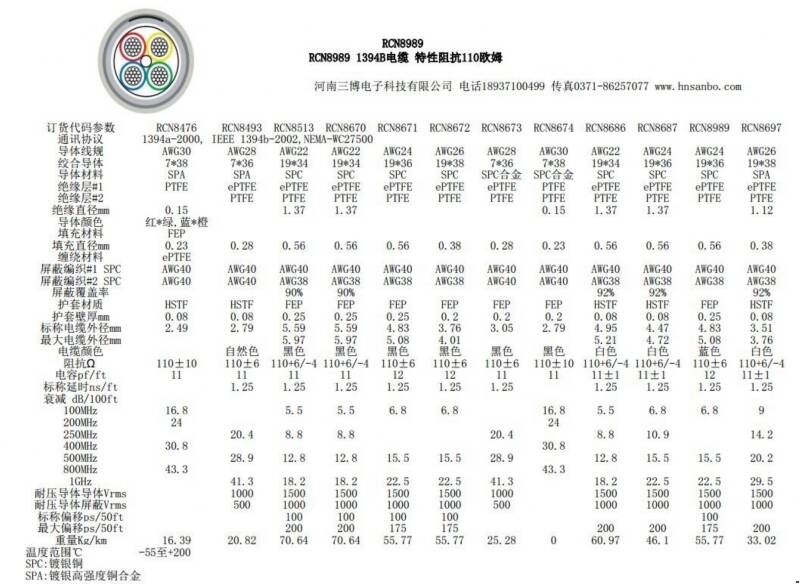

RCN8989 1394B电缆 特性阻抗110欧姆
| 订货代码参数 |
RCN8476 |
RCN8493 |
RCN8513 |
RCN8670 |
RCN8671 |
RCN8672 |
RCN8673 |
RCN8674 |
RCN8686 |
RCN8687 |
RCN8989 |
RCN8697 |
| 通讯协议 |
MIL-1394,IEEE 1394-1995, IEEE 1394a-2000, IEEE 1394b-2002,NEMA-WC27500 |
| 导体线规 |
AWG30 |
AWG28 |
AWG22 |
AWG22 |
AWG24 |
AWG26 |
AWG28 |
AWG30 |
AWG22 |
AWG24 |
AWG24 |
AWG26 |
| 绞合导体 |
7*38 |
7*36 |
19*34 |
19*34 |
19*36 |
19*38 |
7*36 |
7*38 |
19*34 |
19*36 |
19*36 |
19*38 |
| 导体材料 |
SPA |
SPA |
SPC |
SPC |
SPC |
SPC |
SPC合金 |
SPC合金 |
SPC |
SPC |
SPC |
SPA |
| 绝缘层#1 |
PTFE |
ePTFE |
ePTFE |
ePTFE |
ePTFE |
ePTFE |
ePTFE |
PTFE |
ePTFE |
ePTFE |
ePTFE |
ePTFE |
| 绝缘层#2 |
|
PTFE |
PTFE |
PTFE |
PTFE |
PTFE |
PTFE |
PTFE |
PTFE |
PTFE |
PTFE |
PTFE |
| 绝缘直径mm |
0.15 |
|
1.37 |
1.37 |
|
|
|
0.15 |
1.37 |
1.37 |
|
1.12 |
| 导体颜色 |
红*绿,蓝*橙 |
| 填充材料 |
FEP |
| 填充直径mm |
0.23 |
0.28 |
0.56 |
0.56 |
0.56 |
0.38 |
0.28 |
0.23 |
0.56 |
0.56 |
0.56 |
0.38 |
| 缠绕材料 |
ePTFE |
| 屏蔽编织#1 SPC |
AWG40 |
AWG40 |
AWG40 |
AWG40 |
AWG40 |
AWG40 |
AWG40 |
AWG40 |
AWG40 |
AWG40 |
AWG40 |
AWG40 |
| 屏蔽编织#2 SPC |
AWG40 |
AWG40 |
AWG38 |
AWG38 |
AWG38 |
AWG38 |
AWG40 |
AWG40 |
AWG38 |
AWG38 |
AWG38 |
AWG38 |
| 屏蔽覆盖率 |
|
|
90% |
90% |
|
|
|
|
92% |
92% |
|
92% |
| 护套材质 |
HSTF |
HSTF |
FEP |
FEP |
FEP |
FEP |
FEP |
FEP |
HSTF |
HSTF |
FEP |
HSTF |
| 护套壁厚mm |
0.08 |
0.08 |
0.25 |
0.25 |
0.25 |
0.2 |
0.2 |
0.2 |
0.08 |
0.08 |
0.25 |
0.08 |
| 标称电缆外径mm |
2.49 |
2.79 |
5.59 |
5.59 |
4.83 |
3.76 |
3.05 |
2.79 |
4.95 |
4.47 |
4.83 |
3.51 |
| 最大电缆外径mm |
|
|
5.97 |
5.97 |
5.08 |
4.01 |
|
|
5.21 |
4.72 |
5.08 |
3.76 |
| 电缆颜色 |
|
自然色 |
黑色 |
黑色 |
黑色 |
黑色 |
黑色 |
黑色 |
白色 |
白色 |
蓝色 |
白色 |
| 阻抗Ω |
110±10 |
110±6 |
110+6/-4 |
110+6/-4 |
110±6 |
110±6 |
110±6 |
110±10 |
110+6/-4 |
110+6/-4 |
110±6 |
110+6/-4 |
| 电容pf/ft |
11 |
11 |
11 |
11 |
12 |
12 |
11 |
11 |
11±1 |
11±1 |
12 |
11±1 |
| 标称延时ns/ft |
|
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
1.25 |
|
1.25 |
1.25 |
1.25 |
1.25 |
| 衰减 dB/100ft |
| 100MHz |
16.8 |
|
5.5 |
5.5 |
6.8 |
6.8 |
|
16.8 |
5.5 |
6.8 |
6.8 |
9 |
| 200MHz |
24 |
|
|
|
|
|
|
24 |
|
|
|
|
| 250MHz |
|
20.4 |
8.8 |
8.8 |
|
|
20.4 |
|
8.8 |
10.9 |
|
14.2 |
| 400MHz |
30.8 |
|
|
|
|
|
|
30.8 |
|
|
|
|
| 500MHz |
|
28.9 |
12.8 |
12.8 |
15.5 |
15.5 |
28.9 |
|
12.8 |
15.5 |
15.5 |
20.2 |
| 800MHz |
43.3 |
|
|
|
|
|
|
43.3 |
|
|
|
|
| 1GHz |
|
41.3 |
18.2 |
18.2 |
22.5 |
22.5 |
41.3 |
|
18.2 |
22.5 |
22.5 |
29.5 |
| 耐压导体导体Vrms |
|
1000 |
1500 |
1500 |
1500 |
1500 |
1000 |
|
1500 |
1500 |
1500 |
1500 |
| 耐压导体屏蔽Vrms |
|
500 |
1000 |
1000 |
1000 |
1000 |
500 |
|
1000 |
1000 |
1000 |
1000 |
| 标称偏移ps/50ft |
|
|
100 |
100 |
100 |
100 |
|
|
|
|
100 |
|
| 最大偏移ps/50ft |
|
|
200 |
200 |
175 |
175 |
|
|
200 |
200 |
175 |
200 |
| 重量Kg/km |
16.39 |
20.82 |
70.64 |
70.64 |
55.77 |
55.77 |
25.28 |
0 |
60.97 |
46.1 |
55.77 |
33.02 |
| 温度范围℃ |
-55至+200 |
| SPC:镀银铜 |
| SPA:镀银高强度铜合金 |
|
