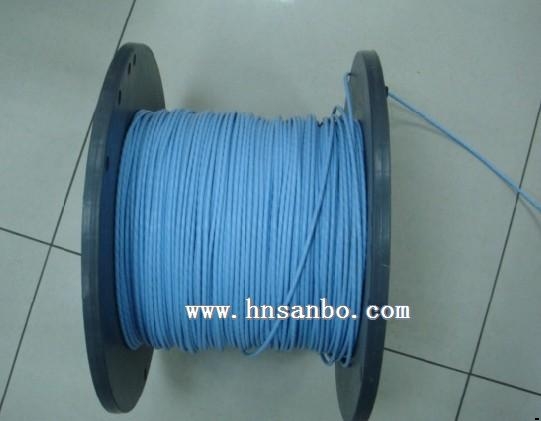

ABS0972KB24
四同轴屏蔽100欧姆，高速数据传输（以太网络）100 Mbit / s和飞行中的娱乐应用。
导体
19×0.13毫米的银铜绞线AWG24
绝缘材料：FEP，∅= 1.40±0.05毫米
颜色：蓝，红，黄，绿
天然FEP填料
屏蔽包装胶带，0.10毫米的银铜编织带，直径=3.90±0.15毫米
护套
清澈碧蓝的紫外线FEP护套，可激光打标
电缆外径：∅= 4.40±0.20毫米
最小弯曲半径 静态= 20毫米
|
|
| DIMENSIONAL CHARACTERISTICS |
|---|
| Approximate weight |
40.28g/m |
| ELECTRICAL CHARACTERISTICS |
|---|
| Operating voltage |
600V |
| USAGE CHARACTERISTICS |
|---|
| Operating temperature, range |
-55 .. 125°C |
| Storage temperature, range |
-55 .. 200°C |
| Flame retardant |
FAR/JAR part 25 sec 25.869 (a)(4) Appendix F part 1 (3) |
Loop resistance at 20°C (Max)
|
19.2 Ω/100 m
|
Insulation resistance at 20°C
|
1500 MΩ.km
|
Impedance
|
100 Ω ± 15 Ω from 1 to 100 MHz
|
Velocity of propagation
|
≥69%
|
N.E.X.T.
|
> 68 -15 x log (F) dB from 1 to 100 MHz
|
Attenuation at
|
1 MHz
|
2.1 dB/100m
|
4 MHz
|
4.1 dB/100m
|
10 MHz
|
6.5 dB/100m
|
16 MHz
|
8.2 dB/100m
|
20 MHz
|
9.3 dB/100m
|
31.25 MHz
|
11.7 dB/100m
|
62.5 MHz
|
17 dB/100m
|
100 MHz
|
22 dB/100m
|
Identification
Inkjet marking pitch length ≈ 300 mm
Pitch length between the two next marking ≈ 150 mm
AB KB 24 FR F “year of manufacturing”
|
