耐弯曲应用MIL-DTL-3432军标柔性电缆

作者：admin 来源： 日期：2015/6/16 16:56:46

MIL-DTL-3432 CO电缆
CO缆线是符合MIL-DTL-3432军标柔性电缆。 CO代表“分量线。”它的目的是抵御恶劣的环境和粗暴的使用在军事和弯曲应用中遇到的。 CO线可在轻型，中型和满足UL 62重型结构。

MIL-C-3432 CO线的部件号生成器
M3432中型“CO”电缆
M3432重型“CO”电缆
M3432轻型“CO”电缆
重型CO电缆和中型MIL-DTL-3432电线额定电压为600伏。轻型M3432电缆的额定300伏。 CO电缆是半柔性的，灵活的，并且额外的柔性版本来满足不同应用的需要。它们还提供在耐热，抗油，屏蔽和非屏蔽构造。

除了M3432规格，这些电缆符合MIL-I-631，MIL-I-3930，MIL-P-24216，MIL-STD-104，MIL-STD-686，FED-STD-228，AA-59551 ，LP-390，和UL 62。

CO缆线被列为联邦供应类6145的一部分。

MIL-DTL-3432，MIL-C-3432（M3432）

CO缆线

相当于UL 62

电源和特种电缆

300 V和600 V


MIL-C-3432 CO缆线是一种军用规格覆盖便携式电源和控制电缆。 CO缆线可用于广泛的电气和电子应用，并能够承受身体上的虐待。重型电缆可用于在那里他们可以通过重型车辆辗过，旨在承受剧烈弯曲。申请重型电缆包括重型便携式工具和设备，充电电缆和电源和控制线。中型电缆应能承受相同的使用，除非它们不应该被车辆辗过或经受严重的影响。轻型电缆将承受严重弯曲，但不应该被踩到或受到严重影响。轻型电缆主要用在轻巧便携的工具和发电机。所有的MIL-C-3432 CO电缆抵御极端温度。


电力电缆被限制在2，3和4线，8 AWG到500 MCM。控制电缆可以屏蔽，屏蔽或任何组合。

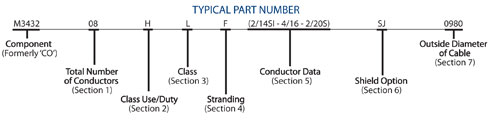

CO Cable M3432 Part Make-Up

Table 1: Duty of Mil-C-3432 CO Cable


Code Duty Voltage Nom. Jacket
Thickness (in)
L Light 300 0.020 to 0.050
M Medium 600 0.027 to 0.172
H Heavy 600 0.035 to 0.345



Table 2: Mil-C-3432 CO Cable Insulation


Code Class of Insulation Type of Insulation Temperature Range
G General Purpose, Med. Low Temp. Thermoplastic (TPE) -40°C to 75°C
O Oil Resistant, Med. Low Temp. Thermoplastic (TPE) -40°C to 75°C
L Heat Resistant, Low Temp. Thermoplastic (TPE) -55°C to 75°C
D Heat & Oil Resistant, Low Temp. Thermoplastic (TPE) -55°C to 75°C
H Heat & Weather Resistant, Low Temp. Thermoplastic (TPE) -55°C to 90°C
B Oil & Weather Resistant, Low Temp. Thermosetting -55°C to 80°C
C Heat & Oil Resistant, Low Temp. Thermosetting -55°C to 80°C
K Oil, Heat & Weather Resistant, Low Temp. Thermoplastic (TPE) -55°C to 80°C
N Heat & Oil Resistant, Low Temp. Thermosetting -55°C to 90°C
E Heat, Oil, Ozone & Weather Resistant, Low Temp. Thermoplastic (TPE) -55°C to 90°C



Table 3: Flexibility of Mil-C-3432 CO Cable


Code Flexibility
S Semi-Flexible
F Flexible
E Extra-Flexible



Table 4: Mil-C-3432 CO Cable Conductor Data


Type Explanation Example
Number and Size of Individual Conductors The number of individual conductors of the same wire size are designated by that number, followed by a slash and a number indicating the conductor wire size. When there are multiple wire sizes, each is represented as described, separated by a dash. Example 1. "3/22" indicates 3 number 22 AWG conductors.
Example 2. "6/14-1/8" represents 6 number 14 AWG conductors and 1 number 8 AWG conductor.
Unshielded Grouped Conductors Desigated immediately following the wire size by "x" followed by the number of conductor groups in the cable. Example 1. "2/20x1" indicates 2 number 20 AWG conductors twisted together to form 1 pair.
Example 2. "3/22x4" represents 4 groups of 3 number 22 AWG conductors twisted together to form a triple.
Grouped Shielding When one or more groups of conductors have a common shield over each conductor group, the designator "Sx(number of groups)" follows the wire size.
If a single group has a common shield, the "x1" is to be omitted.		 Example 1. "2/22Sx6" indicates 6 pairs of 22 AWG conductors, with a shield over each pair.
Example 2. "2/20S" indicates 1 shielded twisted pair of 20 AWG conductors.
Individual Shielding When each conductor of the same size is individually shielded, the letter "I" follows the letter "S". A shielded individual conductor is to be designated by "S" instead of "SI". Example 1. "3/14SI" indicates 3 individually shielded 14 AWG conductors.
Example 2. "1/18S" indicates 1 shielded 18 AWG conductor.
Uninsulated Ground Drain Wires Desiganated by the letter "R" and are not counted in th total number of conductors. Example 1. "3/8R" indicates 3 number 8 AWG ground wires.
Parallel Configuration Two conductors laid parallel is desiganated by the letter "F" which is to be followed by the conductor number. Example 1. "2F/8" indicates 2 number 8 AWG conductors laid parallel.



Table 5: Mil-C-3432 CO Cable Overall Shielding


Code Shielding
N/A No Shield - No letters are used
SJ Single Overall Shield
SSJ Double Overall Shield



Table 6: Outside Diameter of Mil-C-3432 CO Cable


Code Shielding Example
Typical Cable Indicated by four significant figures expressing the diameter in mils (thousandths of an inch) to the nearest figure divisble by 5. "...)0640" respresents an Outer Diameter (O.D.) of 0.064 inches.
Tolerance Exists Indicated by placing the tolerance immediately after the O.D. as descibed in the typical case. "...)1040±.025" respresents an Outer Diameter (O.D.) of 1.04 inches and a tolerance of 0.025 inches.
Parallel Conductor Cables Designated by listing the major diameter, followed by a slant, followed by the minor diameter, all expressed as described in the typical case. "...)0920±.050/0510" respresents a parellel cable having a major diameter of 0.92 inches with a tolerance of 0.05 inches and a minor diameter of 0.51 inches.

M3432 Medium Duty "CO" Cables


    M3432 Medium Duty CO Wire
    600V

    CO Cable, Medium Duty Approvals:

    • Military Specifications:
      • MIL-DTL-3432
      • MIL-I-631
      • MIL-I-3930
      • MIL-P-24216
      • MIL-STD-104
    • Federal Specifications:
      • L-P-390
      • A-A-59551
      • FED-STD-228
      • MIL-STD-686
    • Industry Specifications:
      • UL 62

    Medium Duty M3432 Cable Characteristics:

    Part numbers are designed to give more information about the parts. In each part number, there is a three-letter code starting with "M." Letters of the code indicate the following characteristics:

    • 1st Letter = Duty:
      • M: Medium Duty, rated 600 volts
    • 2nd Letter = Class:
      • G: General Purpose, Medium Low Temperature (-40°C to 75°C)
      • O: Oil-Resistant, Medium Low Temperature (-40°C to 75°C)
      • L: Heat Resistant, Low Temperature (-55°C to 75°C)
      • D: Oil and Heat Resistant, Low Temperature (-55°C to 75°C)
    • 3rd Letter = Flexibility:
      • S: Semi-Flexible
      • F: Flexible
      • E: Extra Flexible

    *Note: CO Wires with "SJ" in their part numbers are shielded (ex. M3432-03 MGF (3/12) SJ 0515)

    Part Number AWG Size No. of Cond. Nom. O.D. (in) Approx LBS/MFT Mil-Spec #
    CO-03 MGF(3/18) 0340 18 3 0.340 59 M3432-03 MGF(3/18) 0340
    CO-03 MGF(3/16) 0360 16 3 0.365 69 M3432-03 MGF(3/16) 0360
    CO-03 MGF(3/14) 0460 14 3 0.460 150 M3432-03 MGF(3/14) 0460
    CO-03 MGF(3/12) 0500 12 3 0.500 202 M3432-03 MGF(3/12) 0500
    CO-03 MGF (3/12) SJ 0515 12 3 0.515 245 M3432-03 MGF (3/12) SJ 0515
    CO-03 MDF (3/12) SJ 0515 12 3 0.515 164 M3432-03 MDF (3/12) SJ 0515
    CO-04 MOF (4/14) 0500 14 4 0.500 149 M3432-04 MOF (4/14) 05
    CO-03 MOF(3/16) 0635 16 3 0.635 70 M3432-03 MOF(3/16) 0635
    CO-03 MGF(3/16) 0335 16 3 0.365 54 M3432-03 MGF(3/16) 0335
    CO-04 MOF(4/12) SJ 0600 12 4 0.600 210 M3432-04 MOF(4/12) SJ 0600
    CO-04 MOF(4/14) 0500 14 4 0.500 141 M3432-04 MOF(4/14) 0500
    CO-05 MGF( 5/16) 0490 16 5 0.490 125 M3432-05 MGF( 5/16) 0490

    M3432 Heavy Duty "CO" Cable

      M3432 Heavy Duty CO Cable
      600V

      CO Cable, Heavy Duty Approvals:

      • Military Specifications:
        • MIL-DTL-3432
        • MIL-I-631
        • MIL-I-3930
        • MIL-P-24216
        • MIL-STD-104
      • Federal Specifications:
        • L-P-390
        • A-A-59551
        • FED-STD-228
        • MIL-STD-686
      • Industry Specifications:
        • UL 62

      Heavy Duty M3432 Cable Characteristics:

      Part numbers are designed to give more information about the parts. In each part number, there is a three-letter code starting with "H." Letters of the code indicate the following characteristics:

      • 1st Letter = Duty:
        • H: Heavy Duty, rated 600 volts
      • 2nd Letter = Class:
        • G: General Purpose, Medium Low Temperature (-40°C to 75°C)
        • O: Oil-Resistant, Medium Low Temperature (-40°C to 75°C)
        • L: Heat Resistant, Low Temperature (-55°C to 75°C)
        • D: Oil and Heat Resistant, Low Temperature (-55°C to 75°C)
      • 3rd Letter = Flexibility:
        • S: Semi-Flexible
        • F: Flexible
        • E: Extra Flexible

      *Note: CO Cables with "SJ" in their part numbers are shielded (ex. M3432-05 HDE(2/4) SJ 1120)

        Part Number AWG Size No. of Cond. Nom. O.D. (in) Approx LBS/MFT Mil-Spec #
        CO-03 HGF(3/10) 0690 10 3 0.760 262 M3432-03 HGF(3/10) 0690
        CO-04 HDF (4/6) 1100 6 4 1.10 694 M3432-04 HDF (4/6) 1100
        CO-04 HDF (4/6-4/12R) 1100 6 4 1.10 909 M3432-04 HDF (4/6-4/12R) 1100
        CO-03 HLF (3/4-3/10R) 1170 4 3 1.17 865 M3432-03 HLF (3/4-3/10R) 1170
        CO-04 HLF (4/4) 1340 4 4 1.34 952 M3432-04 HLF (4/4) 1340
        CO-04 HLF(4/2) 1480 2 4 1.48 890 M3432-04 HLF(4/2) 1480
        CO-04 HLF (4/6) 1140 6 4 1.14 610 M3432-04 HLF (4/6) 1140
        CO-03 HGF (3/16) 0435 16 3 0.435 88 M3432-03 HGF (3/16) 0435
        CO-04 HLF(4/8) 1000 8 4 1.0 660 M3432-04 HLF(4/8) 1000
        CO-03 HLF(3/12) 0635 12 3 0.635 210 M3432-03 HLF(3/12) 0635
        CO-03 HLF(3/10) 0710 10 3 0.710 270 M3432-03 HLF(3/10) 0710
        CO-04 HGF(4/10) 0745 10 4 0.745 325 M3432-04 HGF(4/10) 0745
        CO-04 HOF(4/2) 1400 2 4 1.4 810 M3432-04 HOF(4/2) 1400
        CO-03 HOF (3/6) 1010 6 3 1.01 492 M3432-03 HOF (3/6) 1010
        CO-03 HDF(3/10) 0690 10 3 0.690 265 M3432-03 HDF(3/10) 0690
        CO-04 HDF(4/2-4/9R) 1435 2 4 1.435 938 M3432-04 HDF(4/2-4/9R) 1435
        CO-04 HDF(4/1-4/8R) 1620 1 4 1.62 2338 M3432-04 HDF(4/1-4/8R) 1620
        CO-04 HDF(4/0000-4/4R) 2380 4/0 4 2.38 2712 M3432-04 HDF(4/0000-4/4R) 2380
        CO-04 HOF(4/0) 1890 1/0 4 1.89 1468 M3432-04 HOF(4/0) 1890
        CO-03 HGF(3/14) 0565 14 3 0.565 165 M3432-03 HGF(3/14) 0565
        CO-04 HDF(4/2-4/8R)1435 2 4 1.435 944 M3432-04 HDF(4/2-4/8R)1435
        CO-05 HOF(5/12) 0740 12 5 0.740 318 M3432-05 HOF(5/12) 0740
        CO-03 HOF(3/12) 0635 12 3 0.635 198 M3432-03 HOF(3/12) 0635
        CO-03 HOF(3/6) 1010 6 3 1.01 515 M3432-03 HOF(3/6) 1010
        CO-06 HOF (6/12) 0800 12 6 0.80 330 M3432-06 HOF (6/12) 0800
        CO-05 HDE(2/4) SJ 1120 4 2 1.12 1580 M3432-05 HDE(2/4) SJ 1120
        CO-04 HDE (4/0-4/4R) 1900 1/0 4 1.9 2820 M3432-04 HDE (4/0-4/4R) 1900
        CO-04 HDF( 4/1-4/8R) 1620 1 4 1.62 1998 M3432-04 HDF( 4/1-4/8R) 1620
        CO-03 HLF( 3/4-3/10R) 1170 4 3 1.17 865 M3432-03 HLF( 3/4-3/10R) 1170
        CO-04 HDF(4/0000-4/4R) 2285 4/0 4 2.285 4670 M3432-04 HDF(4/0000-4/4R) 2285
        CO-04 HDE(4/0000-4/4R) 2380 4/0 4 2.38 5370 M3432-04 HDE(4/0000-4/4R) 2380
        CO-04 HDF(2/4-2/8R) 1100 4 2 1.10 848 M3432-04 HDF(2/4-2/8R) 1100
        CO-04 HLE(4/0000-4) 2500 4/0 4 2.5 4670 M3432-04 HLE(4/0000-4) 2500
        CO-06 HGF(6/16) 0560 16 6 0.560 160 M3432-06 HGF(6/16) 0560
        CO-03 HGE(3/10) 0690 10 3 0.690 260 M3432-03 HGE(3/10) 0690
        CO-04 HDF (4/4-4/10R) 1290 4 4 1.29 1160 M3432-04 HDF (4/4-4/10R) 1290

        M3432 Light Duty "CO" Cables


          CO Cables
          M3432 Light Duty Cable
          300V

          CO Cable, Light Duty Approvals:

          • Military Specifications:
            • MIL-DTL-3432
            • MIL-I-631
            • MIL-I-3930
            • MIL-P-24216
            • MIL-STD-104
          • Federal Specifications:
            • L-P-390
            • A-A-59551
            • FED-STD-228
            • MIL-STD-686
          • Industry Specifications:
            • UL 62

          Light Duty M3432 Cable Characteristics:

          Part numbers are designed to give more information about the parts. In each part number, there is a three-letter code starting with "L." Letters of the code indicate the following characteristics:

          • 1st Letter = Duty:
            • L: Light Duty, rated 300 volts
          • 2nd Letter = Class:
            • G: General Purpose, Medium Low Temperature (-40°C to 75°C)
            • O: Oil-Resistant, Medium Low Temperature (-40°C to 75°C)
            • L: Heat Resistant, Low Temperature (-55°C to 75°C)
            • D: Oil and Heat Resistant, Low Temperature (-55°C to 75°C)
          • 3rd Letter = Flexibility:
            • S: Semi-Flexible
            • F: Flexible
            • E: Extra Flexible
          Part Number AWG Size No. of Cond. Nom. O.D. (in) Approx LBS/MFT Mil-Spec #
          CO-13 LDF (12/22) 0370 22 12 0.370 70 M3432-13 LDF (12/22) 0370
          CO-02 LGF(2/18) 0250 18 2 0.250 39 M3432-0
