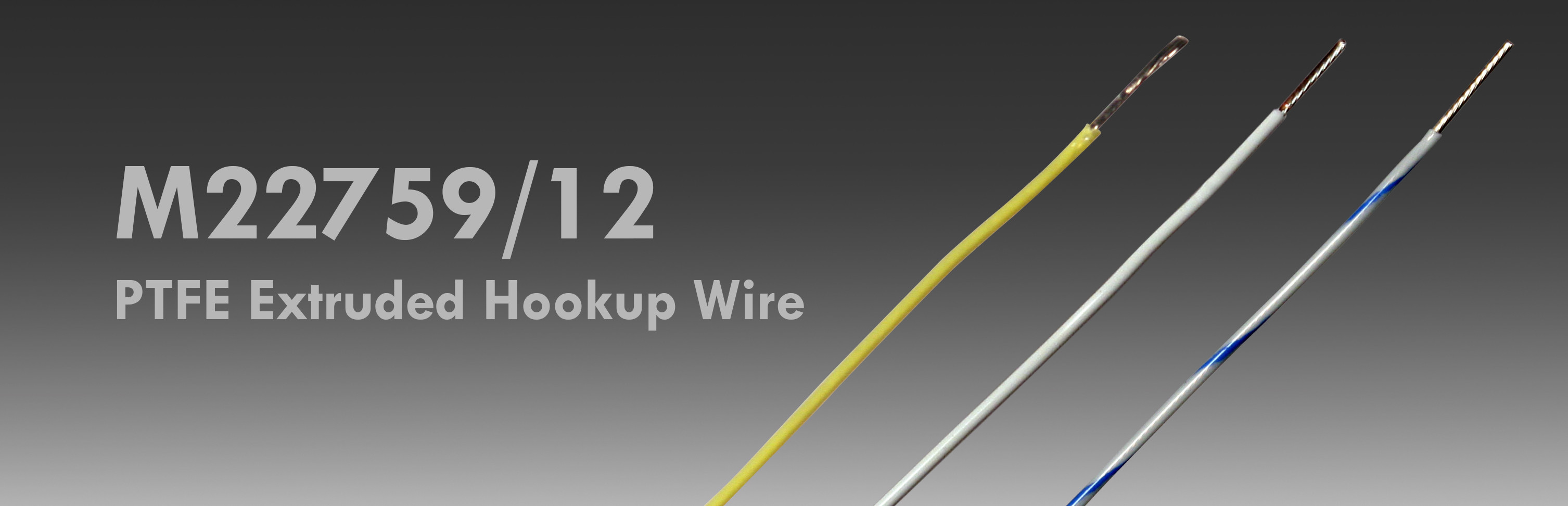

渡镍铜导体m22759/12系列航空导线

作者：admin 来源： 日期：2015/9/25 22:02:34

m22759/12系列渡镍铜导体航空导线-三博电子0371-55365505

mil-w-22759|SAE as22759/12/12

mil-w-22759/12线（m22759/12线）

sae-as22759/12

军用规格线缆

标准墙

m22759/12线构成：

导体：镀镍铜

绝缘：聚四氟乙烯无粘涂层，0.10公称壁厚

mil-w-22759/12线（m22759/12线）性能测评：

电压：600伏

温度：260°C（500°C）

mil-w-22759/12线（m22759/12线）识别：

绿色或白色印刷在绝缘体上

军标订货代码和线规号

PART NUMBER AWG Conductor Stranding Approx LBS/MFT min O.D. (in) Max O.D. (in) Cond. Material Max. Temp Voltage
M22759/12-28-0 28 7/36 2 0.031 0.035 Nickel Plated Copper 260°C 600
M22759/12-28-1 28 7/36 2 0.031 0.035 Nickel Plated Copper 260°C 600
M22759/12-28-2 28 7/36 2 0.031 0.035 Nickel Plated Copper 260°C 600
M22759/12-28-3 28 7/36 2 0.031 0.035 Nickel Plated Copper 260°C 600
M22759/12-28-4 28 7/36 2 0.031 0.035 Nickel Plated Copper 260°C 600
M22759/12-28-5 28 7/36 2 0.031 0.035 Nickel Plated Copper 260°C 600
M22759/12-28-6 28 7/36 2 0.031 0.035 Nickel Plated Copper 260°C 600
M22759/12-28-7 28 7/36 2 0.031 0.035 Nickel Plated Copper 260°C 600
M22759/12-28-8 28 7/36 2 0.031 0.035 Nickel Plated Copper 260°C 600
M22759/12-28-9 28 7/36 2 0.031 0.035 Nickel Plated Copper 260°C 600
M22759/12-26-0 26 19/38 2 0.036 0.04 Nickel Plated Copper 260°C 600
M22759/12-26-1 26 19/38 2 0.036 0.04 Nickel Plated Copper 260°C 600
M22759/12-26-2 26 19/38 2 0.036 0.04 Nickel Plated Copper 260°C 600
M22759/12-26-3 26 19/38 2 0.036 0.04 Nickel Plated Copper 260°C 600
M22759/12-26-4 26 19/38 2 0.036 0.04 Nickel Plated Copper 260°C 600
M22759/12-26-5 26 19/38 2 0.036 0.04 Nickel Plated Copper 260°C 600
M22759/12-26-6 26 19/38 2 0.036 0.04 Nickel Plated Copper 260°C 600
M22759/12-26-7 26 19/38 2 0.036 0.04 Nickel Plated Copper 260°C 600
M22759/12-26-8 26 19/38 2 0.036 0.04 Nickel Plated Copper 260°C 600
M22759/12-26-9 26 19/38 2 0.036 0.04 Nickel Plated Copper 260°C 600
M22759/12-24-0 24 19/36 3 0.041 0.045 Nickel Plated Copper 260°C 600
M22759/12-24-1 24 19/36 3 0.041 0.045 Nickel Plated Copper 260°C 600
M22759/12-24-2 24 19/36 3 0.041 0.045 Nickel Plated Copper 260°C 600
M22759/12-24-3 24 19/36 3 0.041 0.045 Nickel Plated Copper 260°C 600
M22759/12-24-4 24 19/36 3 0.041 0.045 Nickel Plated Copper 260°C 600
M22759/12-24-5 24 19/36 3 0.041 0.045 Nickel Plated Copper 260°C 600
M22759/12-24-6 24 19/36 3 0.041 0.045 Nickel Plated Copper 260°C 600
M22759/12-24-7 24 19/36 3 0.041 0.045 Nickel Plated Copper 260°C 600
M22759/12-24-8 24 19/36 3 0.041 0.045 Nickel Plated Copper 260°C 600
M22759/12-24-9 24 19/36 3 0.041 0.045 Nickel Plated Copper 260°C 600
M22759/12-22-0 22 19/34 4 0.047 0.051 Nickel Plated Copper 260°C 600
M22759/12-22-1 22 19/34 4 0.047 0.051 Nickel Plated Copper 260°C 600
M22759/12-22-2 22 19/34 4 0.047 0.051 Nickel Plated Copper 260°C 600
M22759/12-22-3 22 19/34 4 0.047 0.051 Nickel Plated Copper 260°C 600
M22759/12-22-4 22 19/34 4 0.047 0.051 Nickel Plated Copper 260°C 600
M22759/12-22-5 22 19/34 4 0.047 0.051 Nickel Plated Copper 260°C 600
M22759/12-22-6 22 19/34 4 0.047 0.051 Nickel Plated Copper 260°C 600
M22759/12-22-7 22 19/34 4 0.047 0.051 Nickel Plated Copper 260°C 600
M22759/12-22-8 22 19/34 4 0.047 0.051 Nickel Plated Copper 260°C 600
M22759/12-22-9 22 19/34 4 0.047 0.051 Nickel Plated Copper 260°C 600
M22759/12-20-0 20 19/32 6 0.056 0.06 Nickel Plated Copper 260°C 600
M22759/12-20-1 20 19/32 6 0.056 0.06 Nickel Plated Copper 260°C 600
M22759/12-20-2 20 19/32 6 0.056 0.06 Nickel Plated Copper 260°C 600
M22759/12-20-3 20 19/32 6 0.056 0.06 Nickel Plated Copper 260°C 600
M22759/12-20-4 20 19/32 6 0.056 0.06 Nickel Plated Copper 260°C 600
M22759/12-20-5 20 19/32 6 0.056 0.06 Nickel Plated Copper 260°C 600
M22759/12-20-6 20 19/32 6 0.056 0.06 Nickel Plated Copper 260°C 600
M22759/12-20-7 20 19/32 6 0.056 0.06 Nickel Plated Copper 260°C 600
M22759/12-20-8 20 19/32 6 0.056 0.06 Nickel Plated Copper 260°C 600
M22759/12-20-9 20 19/32 6 0.056 0.06 Nickel Plated Copper 260°C 600
M22759/12-18-0 18 19/30 8 0.066 0.07 Nickel Plated Copper 260°C 600
M22759/12-18-1 18 19/30 8 0.066 0.07 Nickel Plated Copper 260°C 600
M22759/12-18-2 18 19/30 8 0.066 0.07 Nickel Plated Copper 260°C 600
M22759/12-18-3 18 19/30 8 0.066 0.07 Nickel Plated Copper 260°C 600
M22759/12-18-4 18 19/30 8 0.066 0.07 Nickel Plated Copper 260°C 600
M22759/12-18-5 18 19/30 8 0.066 0.07 Nickel Plated Copper 260°C 600
M22759/12-18-6 18 19/30 8 0.066 0.07 Nickel Plated Copper 260°C 600
M22759/12-18-7 18 19/30 8 0.066 0.07 Nickel Plated Copper 260°C 600
M22759/12-18-8 18 19/30 8 0.066 0.07 Nickel Plated Copper 260°C 600
M22759/12-18-9 18 19/30 8 0.066 0.07 Nickel Plated Copper 260°C 600
M22759/12-16-0 16 19/29 10 0.073 0.077 Nickel Plated Copper 260°C 600
M22759/12-16-1 16 19/29 10 0.073 0.077 Nickel Plated Copper 260°C 600
M22759/12-16-2 16 19/29 10 0.073 0.077 Nickel Plated Copper 260°C 600
M22759/12-16-3 16 19/29 10 0.073 0.077 Nickel Plated Copper 260°C 600
M22759/12-16-4 16 19/29 10 0.073 0.077 Nickel Plated Copper 260°C 600
M22759/12-16-5 16 19/29 10 0.073 0.077 Nickel Plated Copper 260°C 600
M22759/12-16-6 16 19/29 10 0.073 0.077 Nickel Plated Copper 260°C 600
M22759/12-16-7 16 19/29 10 0.073 0.077 Nickel Plated Copper 260°C 600
M22759/12-16-8 16 19/29 10 0.073 0.077 Nickel Plated Copper 260°C 600
M22759/12-16-9 16 19/29 10 0.073 0.077 Nickel Plated Copper 260°C 600
M22759/12-14-0 14 19/27 15 0.088 0.092 Nickel Plated Copper 260°C 600
M22759/12-14-1 14 19/27 15 0.088 0.092 Nickel Plated Copper 260°C 600
M22759/12-14-2 14 19/27 15 0.088 0.092 Nickel Plated Copper 260°C 600
M22759/12-14-3 14 19/27 15 0.088 0.092 Nickel Plated Copper 260°C 600
M22759/12-14-4 14 19/27 15 0.088 0.092 Nickel Plated Copper 260°C 600
M22759/12-14-5 14 19/27 15 0.088 0.092 Nickel Plated Copper 260°C 600
M22759/12-14-6 14 19/27 15 0.088 0.092 Nickel Plated Copper 260°C 600
M22759/12-14-7 14 19/27 15 0.088 0.092 Nickel Plated Copper 260°C 600
M22759/12-14-8 14 19/27 15 0.088 0.092 Nickel Plated Copper 260°C 600
M22759/12-14-9 14 19/27 15 0.088 0.092 Nickel Plated Copper 260°C 600
M22759/12-12-0 12 19/25 23 0.108 0.114 Nickel Plated Copper 260°C 600
M22759/12-12-1 12 19/25 23 0.108 0.114 Nickel Plated Copper 260°C 600
M22759/12-12-2 12 19/25 23 0.108 0.114 Nickel Plated Copper 260°C 600
M22759/12-12-3 12 19/25 23 0.108 0.114 Nickel Plated Copper 260°C 600
M22759/12-12-4 12 19/25 23 0.108 0.114 Nickel Plated Copper 260°C 600
M22759/12-12-5 12 19/25 23 0.108 0.114 Nickel Plated Copper 260°C 600
M22759/12-12-6 12 19/25 23 0.108 0.114 Nickel Plated Copper 260°C 600
M22759/12-12-7 12 19/25 23 0.108 0.114 Nickel Plated Copper 260°C 600
M22759/12-12-8 12 19/25 23 0.108 0.114 Nickel Plated Copper 260°C 600
M22759/12-12-9 12 19/25 23 0.108 0.114 Nickel Plated Copper 260°C 600
M22759/12-10-0 10 37/26 35 0.135 0.143 Nickel Plated Copper 260°C 600
M22759/12-10-1 10 37/26 35 0.135 0.143 Nickel Plated Copper 260°C 600
M22759/12-10-2 10 37/26 35 0.135 0.143 Nickel Plated Copper 260°C 600
M22759/12-10-3 10 37/26 35 0.135 0.143 Nickel Plated Copper 260°C 600
M22759/12-10-4 10 37/26 35 0.135 0.143 Nickel Plated Copper 260°C 600
M22759/12-10-5 10 37/26 35 0.135 0.143 Nickel Plated Copper 260°C 600
M22759/12-10-6 10 37/26 35 0.135 0.143 Nickel Plated Copper 260°C 600
M22759/12-10-7 10 37/26 35 0.135 0.143 Nickel Plated Copper 260°C 600
M22759/12-10-8 10 37/26 35 0.135 0.143 Nickel Plated Copper 260°C 600
M22759/12-10-9 10 37/26 35 0.135 0.143 Nickel Plated Copper 260°C 600
M22759/12-8-0 8 133/29 66 0.2 0.208 Nickel Plated Copper 260°C 600
M22759/12-8-1 8 133/29 66 0.2 0.208 Nickel Plated Copper 260°C 600
M22759/12-8-2 8 133/29 66 0.2 0.208 Nickel Plated Copper 260°C 600
M22759/12-8-3 8 133/29 66 0.2 0.208 Nickel Plated Copper 260°C 600
M22759/12-8-4 8 133/29 66 0.2 0.208 Nickel Plated Copper 260°C 600
M22759/12-8-5 8 133/29 66 0.2 0.208 Nickel Plated Copper 260°C 600
M22759/12-8-6 8 133/29 66 0.2 0.208 Nickel Plated Copper 260°C 600
M22759/12-8-7 8 133/29 66 0.2 0.208 Nickel Plated Copper 260°C 600
M22759/12-8-8 8 133/29 66 0.2 0.208 Nickel Plated Copper 260°C 600
M22759/12-8-9 8 133/29 66 0.2 0.208 Nickel Plated Copper 260°C 600

河南三博电子是一家专业渡镍铜导体m22759/12系列航空导线的供应商，我公司经营渡镍铜导体m22759/12系列航空导线产品多年，质量口碑可靠。如果您有更多的渡镍铜导体m22759/12系列航空导线价格问题，欢迎您联系我们厂家
