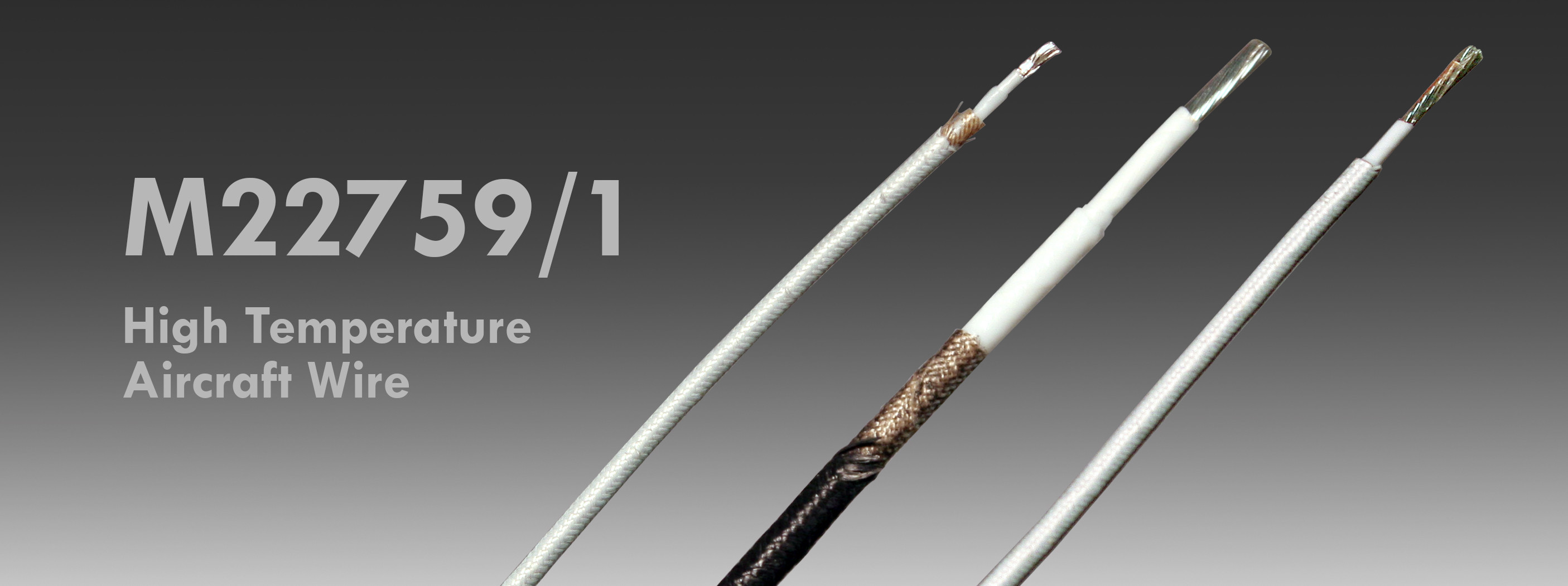

镀银铜线M22759/1系列航空导线

作者：admin 来源： 日期：2015/9/21 18:21:07

MIL-W-22759/1 Wire (M22759/1 Wire)

SAE AS22759/1 Wire

MIL Spec Wire



M22759/1 Wire Construction:



Conductor: Silver Plated Copper

Insulation: PTFE, FEP, and Glass

M22759/1 Wire Ratings:



Voltage: 600 Volts

Temperature: 200°C

M22759/1 Wire Applications:



M22759/1 wire may be used in aircraft engines and wherever abrasion is present.

Part Number AWG ConductorStranding Approx LBS/MFT Min O.D. (in) Max O.D. (in) Mil-Spec SAE Spec Cond. Material Insul. Material Jacket Material Max. Temp Shield Shield Material Voltage
M22759/1-22-0 22 19/34 7.5 0.08 0.088 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-22-1 22 19/34 7.5 0.08 0.088 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-22-2 22 19/34 7.5 0.08 0.088 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-22-3 22 19/34 7.5 0.08 0.088 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-22-4 22 19/34 7.5 0.08 0.088 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-22-5 22 19/34 7.5 0.08 0.088 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-22-6 22 19/34 7.5 0.08 0.088 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-22-7 22 19/34 7.5 0.08 0.088 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-22-8 22 19/34 7.5 0.08 0.088 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-22-9 22 19/34 7.5 0.08 0.088 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-20-0 20 19/32 9.5 0.09 0.098 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-20-1 20 19/32 9.5 0.09 0.098 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-20-2 20 19/32 9.5 0.09 0.098 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-20-3 20 19/32 9.5 0.09 0.098 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-20-4 20 19/32 9.5 0.09 0.098 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-20-5 20 19/32 9.5 0.09 0.098 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-20-6 20 19/32 9.5 0.09 0.098 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-20-7 20 19/32 9.5 0.09 0.098 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-20-8 20 19/32 9.5 0.09 0.098 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-20-9 20 19/32 9.5 0.09 0.098 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-18-0 18 19/30 13 0.1 0.11 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-18-1 18 19/30 13 0.1 0.11 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-18-2 18 19/30 13 0.1 0.11 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-18-3 18 19/30 13 0.1 0.11 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-18-4 18 19/30 13 0.1 0.11 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-18-5 18 19/30 13 0.1 0.11 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-18-6 18 19/30 13 0.1 0.11 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-18-7 18 19/30 13 0.1 0.11 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-18-8 18 19/30 13 0.1 0.11 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-18-9 18 19/30 13 0.1 0.11 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-16-0 16 19/29 16.5 0.115 0.125 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-16-1 16 19/29 16.5 0.115 0.125 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-16-2 16 19/29 16.5 0.115 0.125 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-16-3 16 19/29 16.5 0.115 0.125 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-16-4 16 19/29 16.5 0.115 0.125 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-16-5 16 19/29 16.5 0.115 0.125 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-16-6 16 19/29 16.5 0.115 0.125 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-16-7 16 19/29 16.5 0.115 0.125 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-16-8 16 19/29 16.5 0.115 0.125 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-16-9 16 19/29 16.5 0.115 0.125 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-14-0 14 19/27 23 0.133 0.143 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-14-1 14 19/27 23 0.133 0.143 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-14-2 14 19/27 23 0.133 0.143 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-14-3 14 19/27 23 0.133 0.143 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-14-4 14 19/27 23 0.133 0.143 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-14-5 14 19/27 23 0.133 0.143 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-14-6 14 19/27 23 0.133 0.143 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-14-7 14 19/27 23 0.133 0.143 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-14-8 14 19/27 23 0.133 0.143 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-14-9 14 19/27 23 0.133 0.143 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-12-0 12 37/28 32.1 0.152 0.162 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-12-1 12 37/28 32.1 0.152 0.162 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-12-2 12 37/28 32.1 0.152 0.162 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-12-3 12 37/28 32.1 0.152 0.162 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-12-4 12 37/28 32.1 0.152 0.162 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-12-5 12 37/28 32.1 0.152 0.162 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-12-6 12 37/28 32.1 0.152 0.162 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-12-7 12 37/28 32.1 0.152 0.162 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-12-8 12 37/28 32.1 0.152 0.162 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-12-9 12 37/28 32.1 0.152 0.162 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-10-0 10 37/16 47 0.174 0.188 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-10-1 10 37/16 47 0.174 0.188 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-10-2 10 37/16 47 0.174 0.188 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-10-3 10 37/16 47 0.174 0.188 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-10-4 10 37/16 47 0.174 0.188 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-10-5 10 37/16 47 0.174 0.188 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-10-6 10 37/16 47 0.174 0.188 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-10-7 10 37/16 47 0.174 0.188 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-10-8 10 37/16 47 0.174 0.188 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-10-9 10 37/16 47 0.174 0.188 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-8-0 8 133/29 82 0.241 0.255 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-8-1 8 133/29 82 0.241 0.255 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-8-2 8 133/29 82 0.241 0.255 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-8-3 8 133/29 82 0.241 0.255 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-8-4 8 133/29 82 0.241 0.255 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-8-5 8 133/29 82 0.241 0.255 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-8-6 8 133/29 82 0.241 0.255 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-8-7 8 133/29 82 0.241 0.255 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-8-8 8 133/29 82 0.241 0.255 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-8-9 8 133/29 82 0.241 0.255 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-6-0 6 133/27 122 0.283 0.303 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-6-1 6 133/27 122 0.283 0.303 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-6-2 6 133/27 122 0.283 0.303 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-6-3 6 133/27 122 0.283 0.303 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-6-4 6 133/27 122 0.283 0.303 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-6-5 6 133/27 122 0.283 0.303 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-6-6 6 133/27 122 0.283 0.303 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-6-7 6 133/27 122 0.283 0.303 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-6-8 6 133/27 122 0.283 0.303 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-6-9 6 133/27 122 0.283 0.303 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-4-0 4 133/25 180 0.4 0.43 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-4-1 4 133/25 180 0.4 0.43 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-4-2 4 133/25 180 0.4 0.43 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-4-3 4 133/25 180 0.4 0.43 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-4-4 4 133/25 180 0.4 0.43 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-4-5 4 133/25 180 0.4 0.43 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-4-6 4 133/25 180 0.4 0.43 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-4-7 4 133/25 180 0.4 0.43 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-4-8 4 133/25 180 0.4 0.43 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-4-9 4 133/25 180 0.4 0.43 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-2-0 2 665/30 275 0.405 0.435 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-2-1 2 665/30 275 0.405 0.435 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-2-2 2 665/30 275 0.405 0.435 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-2-3 2 665/30 275 0.405 0.435 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-2-4 2 665/30 275 0.405 0.435 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-2-5 2 665/30 275 0.405 0.435 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-2-6 2 665/30 275 0.405 0.435 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-2-7 2 665/30 275 0.405 0.435 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-2-8 2 665/30 275 0.405 0.435 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-2-9 2 665/30 275 0.405 0.435 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-1-0 1 817/30 348 0.455 0.485 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-1-1 1 817/30 348 0.455 0.485 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-1-2 1 817/30 348 0.455 0.485 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-1-3 1 817/30 348 0.455 0.485 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-1-4 1 817/30 348 0.455 0.485 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-1-5 1 817/30 348 0.455 0.485 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-1-6 1 817/30 348 0.455 0.485 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-1-7 1 817/30 348 0.455 0.485 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-1-8 1 817/30 348 0.455 0.485 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-1-9 1 817/30 348 0.455 0.485 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-01-0 1/0 1045/30 429 0.495 0.535 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-01-1 1/0 1045/30 429 0.495 0.535 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-01-2 1/0 1045/30 429 0.495 0.535 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-01-3 1/0 1045/30 429 0.495 0.535 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-01-4 1/0 1045/30 429 0.495 0.535 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-01-5 1/0 1045/30 429 0.495 0.535 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-01-6 1/0 1045/30 429 0.495 0.535 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-01-7 1/0 1045/30 429 0.495 0.535 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-01-8 1/0 1045/30 429 0.495 0.535 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-01-9 1/0 1045/30 429 0.495 0.535 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-02-0 2/0 1330/30 542 0.555 0.595 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-02-1 2/0 1330/30 542 0.555 0.595 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-02-2 2/0 1330/30 542 0.555 0.595 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-02-3 2/0 1330/30 542 0.555 0.595 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-02-4 2/0 1330/30 542 0.555 0.595 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-02-5 2/0 1330/30 542 0.555 0.595 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-02-6 2/0 1330/30 542 0.555 0.595 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-02-7 2/0 1330/30 542 0.555 0.595 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-02-8 2/0 1330/30 542 0.555 0.595 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-02-9 2/0 1330/30 542 0.555 0.595 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-03-0 3/0 1665/30 668 0.62 0.66 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-03-1 3/0 1665/30 668 0.62 0.66 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-03-2 3/0 1665/30 668 0.62 0.66 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-03-3 3/0 1665/30 668 0.62 0.66 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-03-4 3/0 1665/30 668 0.62 0.66 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-03-5 3/0 1665/30 668 0.62 0.66 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-03-6 3/0 1665/30 668 0.62 0.66 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-03-7 3/0 1665/30 668 0.62 0.66 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-03-8 3/0 1665/30 668 0.62 0.66 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-03-9 3/0 1665/30 668 0.62 0.66 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-04-0 4/0 2109/30 835 0.69 0.73 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-04-1 4/0 2109/30 835 0.69 0.73 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-04-2 4/0 2109/30 835 0.69 0.73 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-04-3 4/0 2109/30 835 0.69 0.73 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-04-4 4/0 2109/30 835 0.69 0.73 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-04-5 4/0 2109/30 835 0.69 0.73 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-04-6 4/0 2109/30 835 0.69 0.73 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-04-7 4/0 2109/30 835 0.69 0.73 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-04-8 4/0 2109/30 835 0.69 0.73 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600
M22759/1-04-9 4/0 2109/30 835 0.69 0.73 M22759/1 AS22759/1 Silver-Coated Copper FEP PTFE 200°C Impregnated Glass Braid Polytetrafluoroethylene (PTFE) Coated Fiberglass 600

河南三博电子是一家专业镀银铜线M22759/1系列航空导线的供应商，我公司经营镀银铜线M22759/1系列航空导线产品多年，质量口碑可靠。如果您有更多的镀银铜线M22759/1系列航空导线价格问题，欢迎您联系我们厂家

  • 上一篇：航空导线航空插头优势供应
  • 下一篇：镀镍铜线M22759/2系列航空线缆

    • 其他信息

    Coryright 河南三博电子科技有限公司 版权所有

    公司地址：河南省郑州市中原区颖河路76号颖河港湾11栋2单元1004 地址：www.hnsanbo.com

    电话：0371-55365505 传真：0371-86257077 邮箱：hnsanbo@163.com 网站关键词:连接器-航空线缆-航空插头、航空线缆、军品连接器、军用操作工具,军用操作工具,集成电路,电源开关生产
