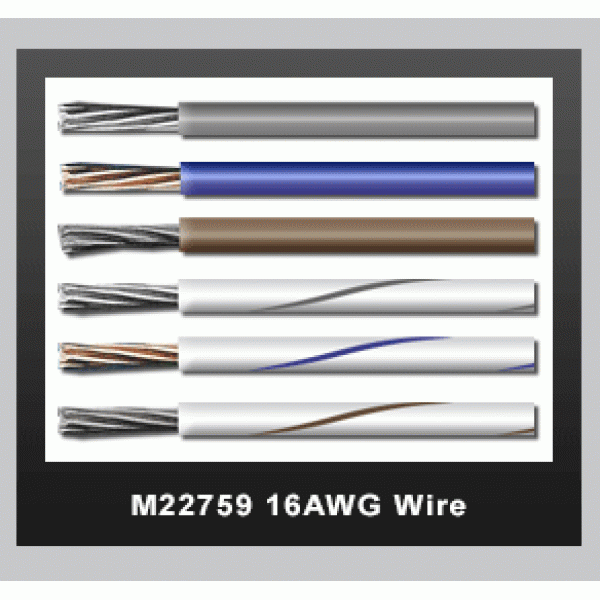

M22759/16系列航空线缆

作者：admin 来源： 日期：2015/10/9 10:42:31

mil-w-22759/16线（m22759/16线）

SAEas22759/16线

军用规格导线



m22759/16导线：

导体：镀锡铜绞线

绝缘材料：乙烯-四氟乙烯共聚物（ETFE）

m22759/16线额定值：

电压：600伏

温度：150°C

m22759/16线识别：

绝缘的绿色或白色印刷

军标部分包括AWG

PART NUMBER AWG Conductor Stranding Approx LBS/MFT min O.D. (in) Max O.D. (in) Cond. Material Max. Temp Voltage
m22759/16-24-0 24 19/36 3 0.043 0.047 Stranded Tinned Copper 150°C 600
m22759/16-24-1 24 19/36 3 0.043 0.047 Stranded Tinned Copper 150°C 600
m22759/16-24-2 24 19/36 3 0.043 0.047 Stranded Tinned Copper 150°C 600
m22759/16-24-3 24 19/36 3 0.043 0.047 Stranded Tinned Copper 150°C 600
m22759/16-24-4 24 19/36 3 0.043 0.047 Stranded Tinned Copper 150°C 600
m22759/16-24-5 24 19/36 3 0.043 0.047 Stranded Tinned Copper 150°C 600
m22759/16-24-6 24 19/36 3 0.043 0.047 Stranded Tinned Copper 150°C 600
m22759/16-24-7 24 19/36 3 0.043 0.047 Stranded Tinned Copper 150°C 600
m22759/16-24-8 24 19/36 3 0.043 0.047 Stranded Tinned Copper 150°C 600
m22759/16-24-9 24 19/36 3 0.043 0.047 Stranded Tinned Copper 150°C 600
m22759/16-22-0 22 19/34 4 0.05 0.054 Stranded Tinned Copper 150°C 600
m22759/16-22-1 22 19/34 4 0.05 0.054 Stranded Tinned Copper 150°C 600
m22759/16-22-2 22 19/34 4 0.05 0.054 Stranded Tinned Copper 150°C 600
m22759/16-22-3 22 19/34 4 0.05 0.054 Stranded Tinned Copper 150°C 600
m22759/16-22-4 22 19/34 4 0.05 0.054 Stranded Tinned Copper 150°C 600
m22759/16-22-5 22 19/34 4 0.05 0.054 Stranded Tinned Copper 150°C 600
m22759/16-22-6 22 19/34 4 0.05 0.054 Stranded Tinned Copper 150°C 600
m22759/16-22-7 22 19/34 4 0.05 0.054 Stranded Tinned Copper 150°C 600
m22759/16-22-8 22 19/34 4 0.05 0.054 Stranded Tinned Copper 150°C 600
m22759/16-22-9 22 19/34 4 0.05 0.054 Stranded Tinned Copper 150°C 600
m22759/16-20-0 20 19/32 5 0.058 0.062 Stranded Tinned Copper 150°C 600
m22759/16-20-1 20 19/32 5 0.058 0.062 Stranded Tinned Copper 150°C 600
m22759/16-20-2 20 19/32 5 0.058 0.062 Stranded Tinned Copper 150°C 600
m22759/16-20-3 20 19/32 5 0.058 0.062 Stranded Tinned Copper 150°C 600
m22759/16-20-4 20 19/32 5 0.058 0.062 Stranded Tinned Copper 150°C 600
m22759/16-20-5 20 19/32 5 0.058 0.062 Stranded Tinned Copper 150°C 600
m22759/16-20-6 20 19/32 5 0.058 0.062 Stranded Tinned Copper 150°C 600
m22759/16-20-7 20 19/32 5 0.058 0.062 Stranded Tinned Copper 150°C 600
m22759/16-20-8 20 19/32 5 0.058 0.062 Stranded Tinned Copper 150°C 600
m22759/16-20-9 20 19/32 5 0.058 0.062 Stranded Tinned Copper 150°C 600
m22759/16-18-0 18 19/30 8 0.069 0.073 Stranded Tinned Copper 150°C 600
m22759/16-18-1 18 19/30 8 0.069 0.073 Stranded Tinned Copper 150°C 600
m22759/16-18-2 18 19/30 8 0.069 0.073 Stranded Tinned Copper 150°C 600
m22759/16-18-3 18 19/30 8 0.069 0.073 Stranded Tinned Copper 150°C 600
m22759/16-18-4 18 19/30 8 0.069 0.073 Stranded Tinned Copper 150°C 600
m22759/16-18-5 18 19/30 8 0.069 0.073 Stranded Tinned Copper 150°C 600
m22759/16-18-6 18 19/30 8 0.069 0.073 Stranded Tinned Copper 150°C 600
m22759/16-18-7 18 19/30 8 0.069 0.073 Stranded Tinned Copper 150°C 600
m22759/16-18-8 18 19/30 8 0.069 0.073 Stranded Tinned Copper 150°C 600
m22759/16-18-9 18 19/30 8 0.069 0.073 Stranded Tinned Copper 150°C 600
m22759/16-16-0 16 19/29 10 0.077 0.081 Stranded Tinned Copper 150°C 600
m22759/16-16-1 16 19/29 10 0.077 0.081 Stranded Tinned Copper 150°C 600
m22759/16-16-2 16 19/29 10 0.077 0.081 Stranded Tinned Copper 150°C 600
m22759/16-16-3 16 19/29 10 0.077 0.081 Stranded Tinned Copper 150°C 600
m22759/16-16-4 16 19/29 10 0.077 0.081 Stranded Tinned Copper 150°C 600
m22759/16-16-5 16 19/29 10 0.077 0.081 Stranded Tinned Copper 150°C 600
m22759/16-16-6 16 19/29 10 0.077 0.081 Stranded Tinned Copper 150°C 600
m22759/16-16-7 16 19/29 10 0.077 0.081 Stranded Tinned Copper 150°C 600
m22759/16-16-8 16 19/29 10 0.077 0.081 Stranded Tinned Copper 150°C 600
m22759/16-16-9 16 19/29 10 0.077 0.081 Stranded Tinned Copper 150°C 600
m22759/16-14-0 14 19/27 15 0.091 0.095 Stranded Tinned Copper 150°C 600
m22759/16-14-1 14 19/27 15 0.091 0.095 Stranded Tinned Copper 150°C 600
m22759/16-14-2 14 19/27 15 0.091 0.095 Stranded Tinned Copper 150°C 600
m22759/16-14-3 14 19/27 15 0.091 0.095 Stranded Tinned Copper 150°C 600
m22759/16-14-4 14 19/27 15 0.091 0.095 Stranded Tinned Copper 150°C 600
m22759/16-14-5 14 19/27 15 0.091 0.095 Stranded Tinned Copper 150°C 600
m22759/16-14-6 14 19/27 15 0.091 0.095 Stranded Tinned Copper 150°C 600
m22759/16-14-7 14 19/27 15 0.091 0.095 Stranded Tinned Copper 150°C 600
m22759/16-14-8 14 19/27 15 0.091 0.095 Stranded Tinned Copper 150°C 600
m22759/16-14-9 14 19/27 15 0.091 0.095 Stranded Tinned Copper 150°C 600
m22759/16-12-0 12 37/28 22 0.111 0.117 Stranded Tinned Copper 150°C 600
m22759/16-12-1 12 37/28 22 0.111 0.117 Stranded Tinned Copper 150°C 600
m22759/16-12-2 12 37/28 22 0.111 0.117 Stranded Tinned Copper 150°C 600
m22759/16-12-3 12 37/28 22 0.111 0.117 Stranded Tinned Copper 150°C 600
m22759/16-12-4 12 37/28 22 0.111 0.117 Stranded Tinned Copper 150°C 600
m22759/16-12-5 12 37/28 22 0.111 0.117 Stranded Tinned Copper 150°C 600
m22759/16-12-6 12 37/28 22 0.111 0.117 Stranded Tinned Copper 150°C 600
m22759/16-12-7 12 37/28 22 0.111 0.117 Stranded Tinned Copper 150°C 600
m22759/16-12-8 12 37/28 22 0.111 0.117 Stranded Tinned Copper 150°C 600
m22759/16-12-9 12 37/28 22 0.111 0.117 Stranded Tinned Copper 150°C 600
m22759/16-10-0 10 37/26 33 0.136 0.142 Stranded Tinned Copper 150°C 600
m22759/16-10-1 10 37/26 33 0.136 0.142 Stranded Tinned Copper 150°C 600
m22759/16-10-2 10 37/26 33 0.136 0.142 Stranded Tinned Copper 150°C 600
m22759/16-10-3 10 37/26 33 0.136 0.142 Stranded Tinned Copper 150°C 600
m22759/16-10-4 10 37/26 33 0.136 0.142 Stranded Tinned Copper 150°C 600
m22759/16-10-5 10 37/26 33 0.136 0.142 Stranded Tinned Copper 150°C 600
m22759/16-10-6 10 37/26 33 0.136 0.142 Stranded Tinned Copper 150°C 600
m22759/16-10-7 10 37/26 33 0.136 0.142 Stranded Tinned Copper 150°C 600
m22759/16-10-8 10 37/26 33 0.136 0.142 Stranded Tinned Copper 150°C 600
m22759/16-10-9 10 37/26 33 0.136 0.142 Stranded Tinned Copper 150°C 600
m22759/16-8-0 8 133/29 62 0.196 0.202 Stranded Tinned Copper 150°C 600
m22759/16-8-1 8 133/29 62 0.196 0.202 Stranded Tinned Copper 150°C 600
m22759/16-8-2 8 133/29 62 0.196 0.202 Stranded Tinned Copper 150°C 600
m22759/16-8-3 8 133/29 62 0.196 0.202 Stranded Tinned Copper 150°C 600
m22759/16-8-4 8 133/29 62 0.196 0.202 Stranded Tinned Copper 150°C 600
m22759/16-8-5 8 133/29 62 0.196 0.202 Stranded Tinned Copper 150°C 600
m22759/16-8-6 8 133/29 62 0.196 0.202 Stranded Tinned Copper 150°C 600
m22759/16-8-7 8 133/29 62 0.196 0.202 Stranded Tinned Copper 150°C 600
m22759/16-8-8 8 133/29 62 0.196 0.202 Stranded Tinned Copper 150°C 600
m22759/16-8-9 8 133/29 62 0.196 0.202 Stranded Tinned Copper 150°C 600
m22759/16-6-0 6 133/27 97 0.247 0.253 Stranded Tinned Copper 150°C 600
m22759/16-6-1 6 133/27 97 0.247 0.253 Stranded Tinned Copper 150°C 600
m22759/16-6-2 6 133/27 97 0.247 0.253 Stranded Tinned Copper 150°C 600
m22759/16-6-3 6 133/27 97 0.247 0.253 Stranded Tinned Copper 150°C 600
m22759/16-6-4 6 133/27 97 0.247 0.253 Stranded Tinned Copper 150°C 600
m22759/16-6-5 6 133/27 97 0.247 0.253 Stranded Tinned Copper 150°C 600
m22759/16-6-6 6 133/27 97 0.247 0.253 Stranded Tinned Copper 150°C 600
m22759/16-6-7 6 133/27 97 0.247 0.253 Stranded Tinned Copper 150°C 600
m22759/16-6-8 6 133/27 97 0.247 0.253 Stranded Tinned Copper 150°C 600
m22759/16-6-9 6 133/27 97 0.247 0.253 Stranded Tinned Copper 150°C 600
m22759/16-4-0 4 133/25 150 0.308 0.316 Stranded Tinned Copper 150°C 600
m22759/16-4-1 4 133/25 150 0.308 0.316 Stranded Tinned Copper 150°C 600
m22759/16-4-2 4 133/25 150 0.308 0.316 Stranded Tinned Copper 150°C 600
m22759/16-4-3 4 133/25 150 0.308 0.316 Stranded Tinned Copper 150°C 600
m22759/16-4-4 4 133/25 150 0.308 0.316 Stranded Tinned Copper 150°C 600
m22759/16-4-5 4 133/25 150 0.308 0.316 Stranded Tinned Copper 150°C 600
m22759/16-4-6 4 133/25 150 0.308 0.316 Stranded Tinned Copper 150°C 600
m22759/16-4-7 4 133/25 150 0.308 0.316 Stranded Tinned Copper 150°C 600
m22759/16-4-8 4 133/25 150 0.308 0.316 Stranded Tinned Copper 150°C 600
m22759/16-4-9 4 133/25 150 0.308 0.316 Stranded Tinned Copper 150°C 600
m22759/16-2-0 2 665/30 250 0.384 0.392 Stranded Tinned Copper 150°C 600
m22759/16-2-1 2 665/30 250 0.384 0.392 Stranded Tinned Copper 150°C 600
m22759/16-2-2 2 665/30 250 0.384 0.392 Stranded Tinned Copper 150°C 600
m22759/16-2-3 2 665/30 250 0.384 0.392 Stranded Tinned Copper 150°C 600
m22759/16-2-4 2 665/30 250 0.384 0.392 Stranded Tinned Copper 150°C 600
m22759/16-2-5 2 665/30 250 0.384 0.392 Stranded Tinned Copper 150°C 600
m22759/16-2-6 2 665/30 250 0.384 0.392 Stranded Tinned Copper 150°C 600
m22759/16-2-7 2 665/30 250 0.384 0.392 Stranded Tinned Copper 150°C 600
m22759/16-2-8 2 665/30 250 0.384 0.392 Stranded Tinned Copper 150°C 600
m22759/16-2-9 2 665/30 250 0.384 0.392 Stranded Tinned Copper 150°C 600
m22759/16-1-0 1 817/30 300 0.426 0.436 Stranded Tinned Copper 150°C 600
m22759/16-1-1 1 817/30 300 0.426 0.436 Stranded Tinned Copper 150°C 600
m22759/16-1-2 1 817/30 300 0.426 0.436 Stranded Tinned Copper 150°C 600
m22759/16-1-3 1 817/30 300 0.426 0.436 Stranded Tinned Copper 150°C 600
m22759/16-1-4 1 817/30 300 0.426 0.436 Stranded Tinned Copper 150°C 600
m22759/16-1-5 1 817/30 300 0.426 0.436 Stranded Tinned Copper 150°C 600
m22759/16-1-6 1 817/30 300 0.426 0.436 Stranded Tinned Copper 150°C 600
m22759/16-1-7 1 817/30 300 0.426 0.436 Stranded Tinned Copper 150°C 600
m22759/16-1-8 1 817/30 300 0.426 0.436 Stranded Tinned Copper 150°C 600
m22759/16-1-9 1 817/30 300 0.426 0.436 Stranded Tinned Copper 150°C 600
m22759/16-01-0 1/0 1045/30 370 0.473 0.485 Stranded Tinned Copper 150°C 600
m22759/16-01-1 1/0 1045/30 370 0.473 0.485 Stranded Tinned Copper 150°C 600
m22759/16-01-2 1/0 1045/30 370 0.473 0.485 Stranded Tinned Copper 150°C 600
m22759/16-01-3 1/0 1045/30 370 0.473 0.485 Stranded Tinned Copper 150°C 600
m22759/16-01-4 1/0 1045/30 370 0.473 0.485 Stranded Tinned Copper 150°C 600
m22759/16-01-5 1/0 1045/30 370 0.473 0.485 Stranded Tinned Copper 150°C 600
m22759/16-01-6 1/0 1045/30 370 0.473 0.485 Stranded Tinned Copper 150°C 600
m22759/16-01-7 1/0 1045/30 370 0.473 0.485 Stranded Tinned Copper 150°C 600
m22759/16-01-8 1/0 1045/30 370 0.473 0.485 Stranded Tinned Copper 150°C 600
m22759/16-01-9 1/0 1045/30 370 0.473 0.485 Stranded Tinned Copper 150°C 600
m22759/16-02-0 2/0 1330/30 480 0.539 0.553 Stranded Tinned Copper 150°C 600
m22759/16-02-1 2/0 1330/30 480 0.539 0.553 Stranded Tinned Copper 150°C 600
m22759/16-02-2 2/0 1330/30 480 0.539 0.553 Stranded Tinned Copper 150°C 600
m22759/16-02-3 2/0 1330/30 480 0.539 0.553 Stranded Tinned Copper 150°C 600
m22759/16-02-4 2/0 1330/30 480 0.539 0.553 Stranded Tinned Copper 150°C 600
m22759/16-02-5 2/0 1330/30 480 0.539 0.553 Stranded Tinned Copper 150°C 600
m22759/16-02-6 2/0 1330/30 480 0.539 0.553 Stranded Tinned Copper 150°C 600
m22759/16-02-7 2/0 1330/30 480 0.539 0.553 Stranded Tinned Copper 150°C 600
m22759/16-02-8 2/0 1330/30 480 0.539 0.553 Stranded Tinned Copper 150°C 600
m22759/16-02-9 2/0 1330/30 480 0.539 0.553 Stranded Tinned Copper 150°C 600

河南三博电子是一家专业M22759/16系列航空线缆的供应商，我公司经营M22759/16系列航空线缆产品多年，质量口碑可靠。如果您有更多的M22759/16系列航空线缆价格问题，欢迎您联系我们厂家
