M22759/17 WIRE | SAE AS22759/17美军标航空导线

作者：admin 来源： 日期：2015/10/9 13:12:34
m22759/17线缆
应用：
航空航天应用，中等重量，耐磨性和机械耐久性是必需的
特性：
高链镀银高强度铜合金导线
挤塑乙烯-四氟乙烯（TEFZEL）绝缘，中等重量，按照mil-std-681颜色编码
温度：
150°
额定电压：
600伏
mil-w-22759/17（m22759/17）| SAE as22759/17


APPLICATIONS:

Aerospace applications where medium weight, abrasion resistance and mechanical durability are required
CHARACTERISTICS:

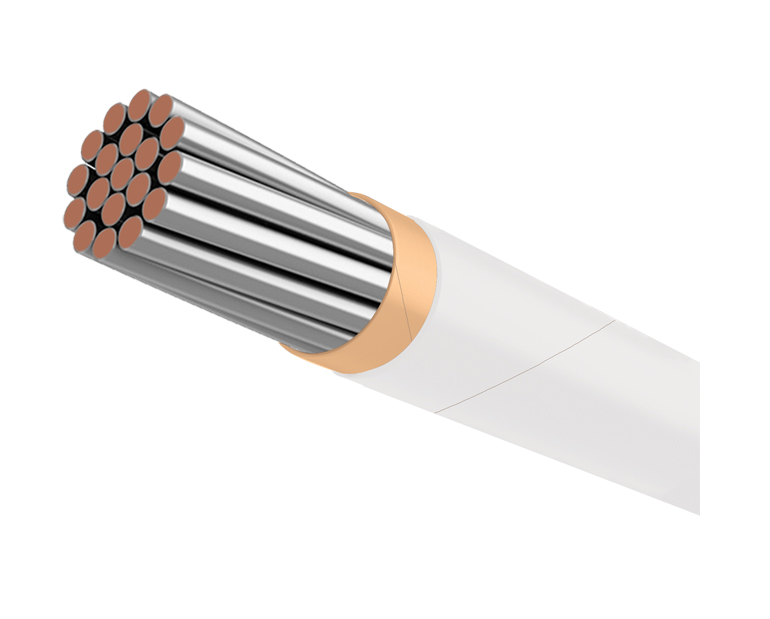

Stranded silver plated high strength copper alloy conductor
Extruded Ethylene Tetrafluoroethylene (Tefzel) insulation, medium weight, color coded in accordance with MIL-STD-681
TEMPERATURE:

150°C
VOLTAGE RATING:

600 volts
MIL-W-22759/17 (M22759/17) | SAE AS22759/17
PART NUMBER AWG Conductor Stranding Approx LBS/MFT min O.D. (in) Max O.D. (in) Cond. Material Max. Temp Voltage
m22759/17-26-0 26 19/38 1.76 0.038 0.042 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-26-1 26 19/38 1.76 0.038 0.042 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-26-2 26 19/38 1.76 0.038 0.042 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-26-3 26 19/38 1.76 0.038 0.042 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-26-4 26 19/38 1.76 0.038 0.042 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-26-5 26 19/38 1.76 0.038 0.042 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-26-6 26 19/38 1.76 0.038 0.042 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-26-7 26 19/38 1.76 0.038 0.042 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-26-8 26 19/38 1.76 0.038 0.042 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-26-9 26 19/38 1.76 0.038 0.042 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-24-0 24 19/36 2.43 0.043 0.047 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-24-1 24 19/36 2.43 0.043 0.047 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-24-2 24 19/36 2.43 0.043 0.047 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-24-3 24 19/36 2.43 0.043 0.047 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-24-4 24 19/36 2.43 0.043 0.047 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-24-5 24 19/36 2.43 0.043 0.047 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-24-6 24 19/36 2.43 0.043 0.047 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-24-7 24 19/36 2.43 0.043 0.047 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-24-8 24 19/36 2.43 0.043 0.047 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-24-9 24 19/36 2.43 0.043 0.047 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-22-0 22 19/34 3.5 0.05 0.054 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-22-1 22 19/34 3.5 0.05 0.054 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-22-2 22 19/34 3.5 0.05 0.054 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-22-3 22 19/34 3.5 0.05 0.054 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-22-4 22 19/34 3.5 0.05 0.054 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-22-5 22 19/34 3.5 0.05 0.054 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-22-6 22 19/34 3.5 0.05 0.054 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-22-7 22 19/34 3.5 0.05 0.054 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-22-8 22 19/34 3.5 0.05 0.054 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-22-9 22 19/34 3.5 0.05 0.054 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-20-0 20 19/32 5.14 0.058 0.062 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-20-1 20 19/32 5.14 0.058 0.062 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-20-2 20 19/32 5.14 0.058 0.062 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-20-3 20 19/32 5.14 0.058 0.062 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-20-4 20 19/32 5.14 0.058 0.062 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-20-5 20 19/32 5.14 0.058 0.062 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-20-6 20 19/32 5.14 0.058 0.062 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-20-7 20 19/32 5.14 0.058 0.062 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-20-8 20 19/32 5.14 0.058 0.062 Stranded silver plated high strength copper alloy 150°C 600
m22759/17-20-9 20 19/32 5.14 0.058 0.062 Stranded silver plated high strength copper alloy 150°C 600


河南三博电子是一家专业M22759/17 WIRE | SAE AS22759/17美军标航空导线的供应商，我公司经营M22759/17 WIRE | SAE AS22759/17美军标航空导线产品多年，质量口碑可靠。如果您有更多的M22759/17 WIRE | SAE AS22759/17美军标航空导线价格问题，欢迎您联系我们厂家
