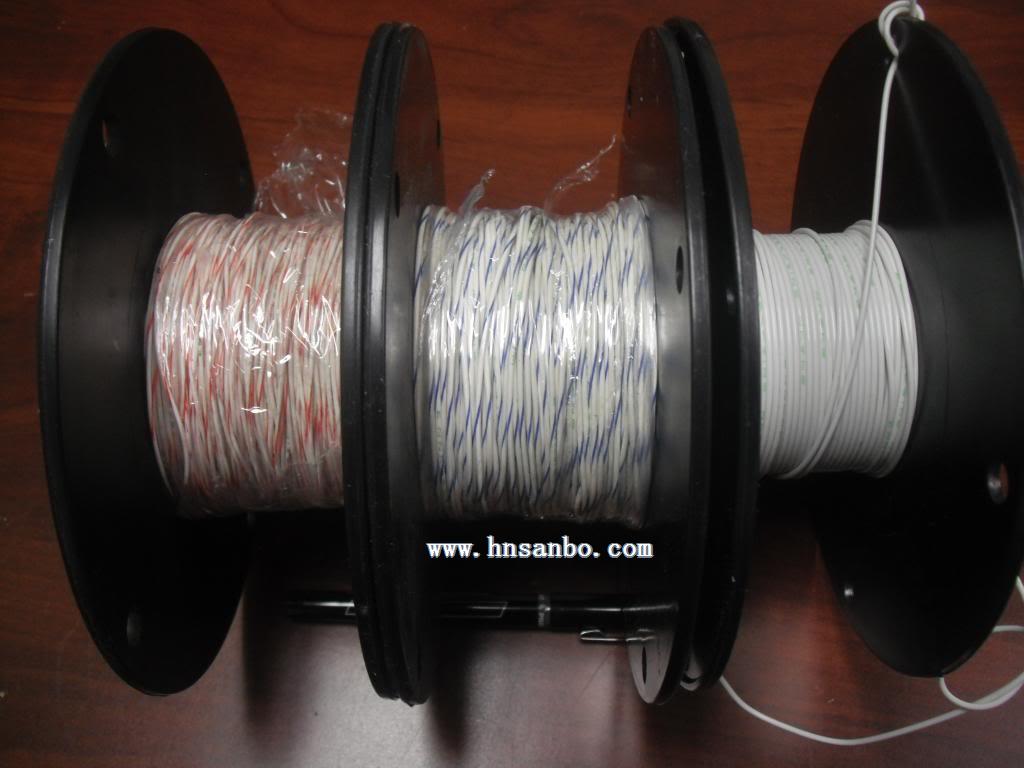

MIL-W-22759/18 (M22759/18) | SAE AS22759/18航空线缆

作者：admin 来源： 日期：2015/10/9 14:35:30
M22759/18线缆| SAE AS22759/18线缆河南三博电子科技
M22759/18线缆应用：
航空航天应用，重量轻，耐磨性和机械耐久性是必需的
特性：
产品描述：
镀锡铜导线
挤塑乙烯-四氟乙烯（TEFZEL）绝缘，重量轻，按照mil-std-681颜色编码
额定温度：
150°
额定电压：
600伏
mil-w-22759/18（m22759/18）| SAE as22759/18


APPLICATIONS:

Aerospace applications where light weight, abrasion resistance and mechanical durability are required
CHARACTERISTICS:

PRODUCT DESCRIPTION:

Stranded tin plated copper conductor
Extruded Ethylene Tetrafluoroethylene (Tefzel) insulation, light weight, color coded in accordance with MIL-STD-681
TEMPERATURE RATING:

150°C
VOLTAGE RATING:

600 volts
MIL-W-22759/18 (M22759/18) | SAE AS22759/18



Mil-Spec #                AWG  Stranding  Min O.D. (in) Max O.D. (in)  />
M22759/18-26-*       26      19/38       0.030          0.034            1.52
M22759/18-24-*       24      19/36       0.034          0.038            2.12
M22759/18-22-*       22      19/34       0.041          0.045            3.16
M22759/18-20-*       20      19/32       0.049          0.053            4.76
M22759/18-18-*       18      19/30       0.059          0.063            7.10
M22759/18-16-*       16      19/29       0.068          0.072            9.14
M22759/18-14-*       14      19/27       0.083          0.087            14.1
M22759/18-12-*       12      37/28       0.104          0.110            21.6
M22759/18-10-*       10      37/26       0.131          0.137            34.1

The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.
0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White
Example: Size 20, white - M22759/18-20-9; white with orange stripe -
M22759/18-20-93.

PART NUMBER AWG Conductor Stranding Approx LBS/MFT min O.D. (in) Max O.D. (in) Cond. Material Max. Temp Voltage
m22759/18-26-0 26 19/38 1.52 0.03 0.034 Stranded tin plated copper 150°C 600
m22759/18-26-1 26 19/38 1.52 0.03 0.034 Stranded tin plated copper 150°C 600
m22759/18-26-2 26 19/38 1.52 0.03 0.034 Stranded tin plated copper 150°C 600
m22759/18-26-3 26 19/38 1.52 0.03 0.034 Stranded tin plated copper 150°C 600
m22759/18-26-4 26 19/38 1.52 0.03 0.034 Stranded tin plated copper 150°C 600
m22759/18-26-5 26 19/38 1.52 0.03 0.034 Stranded tin plated copper 150°C 600
m22759/18-26-6 26 19/38 1.52 0.03 0.034 Stranded tin plated copper 150°C 600
m22759/18-26-7 26 19/38 1.52 0.03 0.034 Stranded tin plated copper 150°C 600
m22759/18-26-8 26 19/38 1.52 0.03 0.034 Stranded tin plated copper 150°C 600
m22759/18-26-9 26 19/38 1.52 0.03 0.034 Stranded tin plated copper 150°C 600
m22759/18-24-0 26 19/36 2.12 0.034 0.038 Stranded tin plated copper 150°C 600
m22759/18-24-1 24 19/36 2.12 0.034 0.038 Stranded tin plated copper 150°C 600
m22759/18-24-2 24 19/36 2.12 0.034 0.038 Stranded tin plated copper 150°C 600
m22759/18-24-3 24 19/36 2.12 0.034 0.038 Stranded tin plated copper 150°C 600
m22759/18-24-4 24 19/36 2.12 0.034 0.038 Stranded tin plated copper 150°C 600
m22759/18-24-5 24 19/36 2.12 0.034 0.038 Stranded tin plated copper 150°C 600
m22759/18-24-6 24 19/36 2.12 0.034 0.038 Stranded tin plated copper 150°C 600
m22759/18-24-7 24 19/36 2.12 0.034 0.038 Stranded tin plated copper 150°C 600
m22759/18-24-8 24 19/36 2.12 0.034 0.038 Stranded tin plated copper 150°C 600
m22759/18-24-9 24 19/36 2.12 0.034 0.038 Stranded tin plated copper 150°C 600
m22759/18-22-0 22 19/34 3.16 0.041 0.045 Stranded tin plated copper 150°C 600
m22759/18-22-1 22 19/34 3.16 0.041 0.045 Stranded tin plated copper 150°C 600
m22759/18-22-2 22 19/34 3.16 0.041 0.045 Stranded tin plated copper 150°C 600
m22759/18-22-3 22 19/34 3.16 0.041 0.045 Stranded tin plated copper 150°C 600
m22759/18-22-4 22 19/34 3.16 0.041 0.045 Stranded tin plated copper 150°C 600
m22759/18-22-5 22 19/34 3.16 0.041 0.045 Stranded tin plated copper 150°C 600
m22759/18-22-6 22 19/34 3.16 0.041 0.045 Stranded tin plated copper 150°C 600
m22759/18-22-7 22 19/34 3.16 0.041 0.045 Stranded tin plated copper 150°C 600
m22759/18-22-8 22 19/34 3.16 0.041 0.045 Stranded tin plated copper 150°C 600
m22759/18-22-9 22 19/34 3.16 0.041 0.045 Stranded tin plated copper 150°C 600
m22759/18-20-0 20 19/32 4.76 0.049 0.053 Stranded tin plated copper 150°C 600
m22759/18-20-1 20 19/32 4.76 0.049 0.053 Stranded tin plated copper 150°C 600
m22759/18-20-2 20 19/32 4.76 0.049 0.053 Stranded tin plated copper 150°C 600
m22759/18-20-3 20 19/32 4.76 0.049 0.053 Stranded tin plated copper 150°C 600
m22759/18-20-4 20 19/32 4.76 0.049 0.053 Stranded tin plated copper 150°C 600
m22759/18-20-5 20 19/32 4.76 0.049 0.053 Stranded tin plated copper 150°C 600
m22759/18-20-6 20 19/32 4.76 0.049 0.053 Stranded tin plated copper 150°C 600
m22759/18-20-7 20 19/32 4.76 0.049 0.053 Stranded tin plated copper 150°C 600
m22759/18-20-8 20 19/32 4.76 0.049 0.053 Stranded tin plated copper 150°C 600
m22759/18-20-9 20 19/32 4.76 0.049 0.053 Stranded tin plated copper 150°C 600
m22759/18-18-0 18 19/30 7.1 0.059 0.063 Stranded tin plated copper 150°C 600
m22759/18-18-1 18 19/30 7.1 0.059 0.063 Stranded tin plated copper 150°C 600
m22759/18-18-2 18 19/30 7.1 0.059 0.063 Stranded tin plated copper 150°C 600
m22759/18-18-3 18 19/30 7.1 0.059 0.063 Stranded tin plated copper 150°C 600
m22759/18-18-4 18 19/30 7.1 0.059 0.063 Stranded tin plated copper 150°C 600
m22759/18-18-5 18 19/30 7.1 0.059 0.063 Stranded tin plated copper 150°C 600
m22759/18-18-6 18 19/30 7.1 0.059 0.063 Stranded tin plated copper 150°C 600
m22759/18-18-7 18 19/30 7.1 0.059 0.063 Stranded tin plated copper 150°C 600
m22759/18-18-8 18 19/30 7.1 0.059 0.063 Stranded tin plated copper 150°C 600
m22759/18-18-9 18 19/30 7.1 0.059 0.063 Stranded tin plated copper 150°C 600
m22759/18-16-0 16 19/29 9.14 0.068 0.072 Stranded tin plated copper 150°C 600
m22759/18-16-1 16 19/29 9.14 0.068 0.072 Stranded tin plated copper 150°C 600
m22759/18-16-2 16 19/29 9.14 0.068 0.072 Stranded tin plated copper 150°C 600
m22759/18-16-3 16 19/29 9.14 0.068 0.072 Stranded tin plated copper 150°C 600
m22759/18-16-4 16 19/29 9.14 0.068 0.072 Stranded tin plated copper 150°C 600
m22759/18-16-5 16 19/29 9.14 0.068 0.072 Stranded tin plated copper 150°C 600
m22759/18-16-6 16 19/29 9.14 0.068 0.072 Stranded tin plated copper 150°C 600
m22759/18-16-7 16 19/29 9.14 0.068 0.072 Stranded tin plated copper 150°C 600
m22759/18-16-8 16 19/29 9.14 0.068 0.072 Stranded tin plated copper 150°C 600
m22759/18-16-9 16 19/29 9.14 0.068 0.072 Stranded tin plated copper 150°C 600
m22759/18-14-0 14 19/27 14.1 0.083 0.087 Stranded tin plated copper 150°C 600
m22759/18-14-1 14 19/27 14.1 0.083 0.087 Stranded tin plated copper 150°C 600
m22759/18-14-2 14 19/27 14.1 0.083 0.087 Stranded tin plated copper 150°C 600
m22759/18-14-3 14 19/27 14.1 0.083 0.087 Stranded tin plated copper 150°C 600
m22759/18-14-4 14 19/27 14.1 0.083 0.087 Stranded tin plated copper 150°C 600
m22759/18-14-5 14 19/27 14.1 0.083 0.087 Stranded tin plated copper 150°C 600
m22759/18-14-6 14 19/27 14.1 0.083 0.087 Stranded tin plated copper 150°C 600
m22759/18-14-7 14 19/27 14.1 0.083 0.087 Stranded tin plated copper 150°C 600
m22759/18-14-8 14 19/27 14.1 0.083 0.087 Stranded tin plated copper 150°C 600
m22759/18-14-9 14 19/27 14.1 0.083 0.087 Stranded tin plated copper 150°C 600
m22759/18-12-0 12 37/28 21.6 0.104 0.11 Stranded tin plated copper 150°C 600
m22759/18-12-1 12 37/28 21.6 0.104 0.11 Stranded tin plated copper 150°C 600
m22759/18-12-2 12 37/28 21.6 0.104 0.11 Stranded tin plated copper 150°C 600
m22759/18-12-3 12 37/28 21.6 0.104 0.11 Stranded tin plated copper 150°C 600
m22759/18-12-4 12 37/28 21.6 0.104 0.11 Stranded tin plated copper 150°C 600
m22759/18-12-5 12 37/28 21.6 0.104 0.11 Stranded tin plated copper 150°C 600
m22759/18-12-6 12 37/28 21.6 0.104 0.11 Stranded tin plated copper 150°C 600
m22759/18-12-7 12 37/28 21.6 0.104 0.11 Stranded tin plated copper 150°C 600
m22759/18-12-8 12 37/28 21.6 0.104 0.11 Stranded tin plated copper 150°C 600
m22759/18-12-9 12 37/28 21.6 0.104 0.11 Stranded tin plated copper 150°C 600
m22759/18-10-0 10 37/26 34.1 0.131 0.137 Stranded tin plated copper 150°C 600
m22759/18-10-1 10 37/26 34.1 0.131 0.137 Stranded tin plated copper 150°C 600
m22759/18-10-2 10 37/26 34.1 0.131 0.137 Stranded tin plated copper 150°C 600
m22759/18-10-3 10 37/26 34.1 0.131 0.137 Stranded tin plated copper 150°C 600
m22759/18-10-4 10 37/26 34.1 0.131 0.137 Stranded tin plated copper 150°C 600
m22759/18-10-5 10 37/26 34.1 0.131 0.137 Stranded tin plated copper 150°C 600
m22759/18-10-6 10 37/26 34.1 0.131 0.137 Stranded tin plated copper 150°C 600
m22759/18-10-7 10 37/26 34.1 0.131 0.137 Stranded tin plated copper 150°C 600
m22759/18-10-8 10 37/26 34.1 0.131 0.137 Stranded tin plated copper 150°C 600
m22759/18-10-9 10 37/26 34.1 0.131 0.137 Stranded tin plated copper 150°C 600

河南三博电子是一家专业MIL-W-22759/18 (M22759/18) | SAE AS22759/18航空线缆的供应商，我公司经营MIL-W-22759/18 (M22759/18) | SAE AS22759/18航空线缆产品多年，质量口碑可靠。如果您有更多的MIL-W-22759/18 (M22759/18) | SAE AS22759/18航空线缆价格问题，欢迎您联系我们厂家
