MIL-W-22759/21 (M22759/21) | SAE AS22759/21航空线缆

作者：admin 来源： 日期：2015/10/10 11:51:25
MIL-W-22759/21 (M22759/21) | SAE AS22759/21线线-河南三博电子科技有限公司

应用：
航空航天应用，中等重量，耐磨性和机械耐久性是必需的
特性：
高镍高强度铜合金导线
膨化聚四氟乙烯（PTFE）绝缘，按照mil-std-681颜色编码
温度：
260°
额定电压：
1000伏

APPLICATIONS:

Aerospace applications where medium weight, abrasion resistance and mechanical durability are required
CHARACTERISTICS:

Stranded nickel plated high strength copper alloy conductor
Extruded Polytetrafluoroethylene (PTFE) insulation, color coded in accordance with MIL-STD-681

TEMPERATURE:

260°C
VOLTAGE RATING:

1000 volts
MIL-W-22759/22 (M22759/22) | SAE AS22759/22
 Finished Wire
Mil-Spec #            AWG    Stranding  Min O.D. (in)  Max O.D. (in)    />
M22759/21-28-*    28       7/36           0.041          0.045             1.93
M22759/21-26-*    26      19/38          0.046          0.050              2.60
M22759/21-24-*    24      19/36          0.051          0.055              3.38
M22759/21-22-*    22      19/34          0.058          0.062              4.61
M22759/21-20-*    20      19/32          0.066          0.070              6.43
The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.

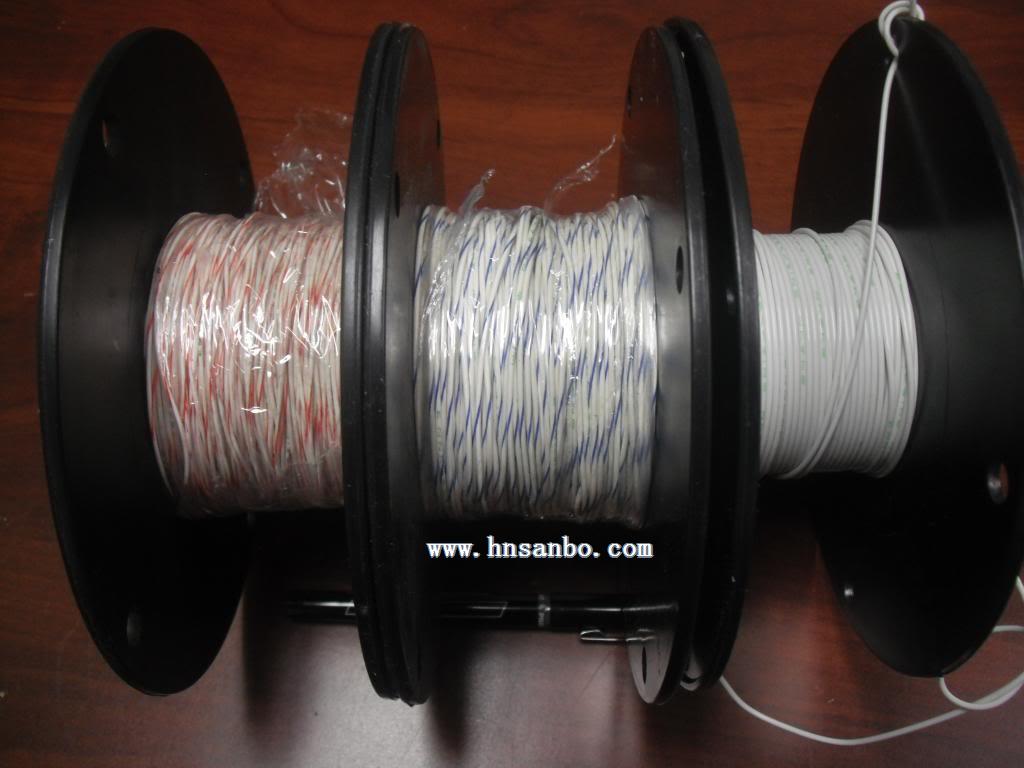

0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White
Example: Size 20, white - M22759/21-20-9; white with orange stripe -
M22759/21-20-93.

MIL-W-22759/21 | SAE AS22759/21
MIL-W-22759/21 Wire (M22759/21 Wire)
SAE AS22729/21 Wire
MIL-Spec Wire

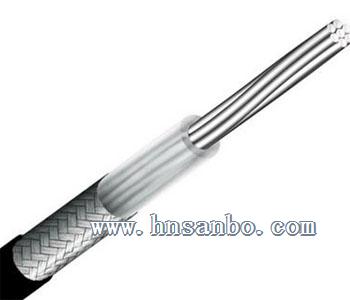

M22759/21 Wire Construction:

Conductor: Silver coated high strength copper alloy
Insulation: Extruded PTFE
M22759/21 Wire Ratings:

Voltage: 1000 Volts
Temperature Rating: 260°C

PART NUMBER AWG Conductor Stranding Approx LBS/MFT min O.D. (in) Max O.D. (in) Cond. Material Max. Temp Voltage
m22759/21-28-0 28 7/36 1.93 0.041 0.045 Silver coated high strength copper alloy 260°C 1000
m22759/21-28-1 28 7/36 1.93 0.041 0.045 Silver coated high strength copper alloy 260°C 1000
m22759/21-28-2 28 7/36 1.93 0.041 0.045 Silver coated high strength copper alloy 260°C 1000
m22759/21-28-3 28 7/36 1.93 0.041 0.045 Silver coated high strength copper alloy 260°C 1000
m22759/21-28-4 28 7/36 1.93 0.041 0.045 Silver coated high strength copper alloy 260°C 1000
m22759/21-28-5 28 7/36 1.93 0.041 0.045 Silver coated high strength copper alloy 260°C 1000
m22759/21-28-6 28 7/36 1.93 0.041 0.045 Silver coated high strength copper alloy 260°C 1000
m22759/21-28-7 28 7/36 1.93 0.041 0.045 Silver coated high strength copper alloy 260°C 1000
m22759/21-28-8 28 7/36 1.93 0.041 0.045 Silver coated high strength copper alloy 260°C 1000
m22759/21-28-9 28 7/36 1.93 0.041 0.045 Silver coated high strength copper alloy 260°C 1000
m22759/21-26-0 26 19/38 2.6 0.046 0.05 Silver coated high strength copper alloy 260°C 1000
m22759/21-26-1 26 19/38 2.6 0.046 0.05 Silver coated high strength copper alloy 260°C 1000
m22759/21-26-2 26 19/38 2.6 0.046 0.05 Silver coated high strength copper alloy 260°C 1000
m22759/21-26-3 26 19/38 2.6 0.046 0.05 Silver coated high strength copper alloy 260°C 1000
m22759/21-26-4 26 19/38 2.6 0.046 0.05 Silver coated high strength copper alloy 260°C 1000
m22759/21-26-5 26 19/38 2.6 0.046 0.05 Silver coated high strength copper alloy 260°C 1000
m22759/21-26-6 26 19/38 2.6 0.046 0.05 Silver coated high strength copper alloy 260°C 1000
m22759/21-26-7 26 19/38 2.6 0.046 0.05 Silver coated high strength copper alloy 260°C 1000
m22759/21-26-8 26 19/38 2.6 0.046 0.05 Silver coated high strength copper alloy 260°C 1000
m22759/21-26-9 26 19/38 2.6 0.046 0.05 Silver coated high strength copper alloy 260°C 1000
m22759/21-24-0 24 19/36 3.38 0.051 0.055 Silver coated high strength copper alloy 260°C 1000
m22759/21-24-1 24 19/36 3.38 0.051 0.055 Silver coated high strength copper alloy 260°C 1000
m22759/21-24-2 24 19/36 3.38 0.051 0.055 Silver coated high strength copper alloy 260°C 1000
m22759/21-24-3 24 19/36 3.38 0.051 0.055 Silver coated high strength copper alloy 260°C 1000
m22759/21-24-4 24 19/36 3.38 0.051 0.055 Silver coated high strength copper alloy 260°C 1000
m22759/21-24-5 24 19/36 3.38 0.051 0.055 Silver coated high strength copper alloy 260°C 1000
m22759/21-24-6 24 19/36 3.38 0.051 0.055 Silver coated high strength copper alloy 260°C 1000
m22759/21-24-7 24 19/36 3.38 0.051 0.055 Silver coated high strength copper alloy 260°C 1000
m22759/21-24-8 24 19/36 3.38 0.051 0.055 Silver coated high strength copper alloy 260°C 1000
m22759/21-24-9 24 19/36 3.38 0.051 0.055 Silver coated high strength copper alloy 260°C 1000
m22759/21-22-0 22 19/34 4.61 0.058 0.062 Silver coated high strength copper alloy 260°C 1000
m22759/21-22-1 22 19/34 4.61 0.058 0.062 Silver coated high strength copper alloy 260°C 1000
m22759/21-22-2 22 19/34 4.61 0.058 0.062 Silver coated high strength copper alloy 260°C 1000
m22759/21-22-3 22 19/34 4.61 0.058 0.062 Silver coated high strength copper alloy 260°C 1000
m22759/21-22-4 22 19/34 4.61 0.058 0.062 Silver coated high strength copper alloy 260°C 1000
m22759/21-22-5 22 19/34 4.61 0.058 0.062 Silver coated high strength copper alloy 260°C 1000
m22759/21-22-6 22 19/34 4.61 0.058 0.062 Silver coated high strength copper alloy 260°C 1000
m22759/21-22-7 22 19/34 4.61 0.058 0.062 Silver coated high strength copper alloy 260°C 1000
m22759/21-22-8 22 19/34 4.61 0.058 0.062 Silver coated high strength copper alloy 260°C 1000
m22759/21-22-9 22 19/34 4.61 0.058 0.062 Silver coated high strength copper alloy 260°C 1000
m22759/21-20-0 20 19/32 6.43 0.066 0.07 Silver coated high strength copper alloy 260°C 1000
m22759/21-20-1 20 19/32 6.43 0.066 0.07 Silver coated high strength copper alloy 260°C 1000
m22759/21-20-2 20 19/32 6.43 0.066 0.07 Silver coated high strength copper alloy 260°C 1000
m22759/21-20-3 20 19/32 6.43 0.066 0.07 Silver coated high strength copper alloy 260°C 1000
m22759/21-20-4 20 19/32 6.43 0.066 0.07 Silver coated high strength copper alloy 260°C 1000
m22759/21-20-5 20 19/32 6.43 0.066 0.07 Silver coated high strength copper alloy 260°C 1000
m22759/21-20-6 20 19/32 6.43 0.066 0.07 Silver coated high strength copper alloy 260°C 1000
m22759/21-20-7 20 19/32 6.43 0.066 0.07 Silver coated high strength copper alloy 260°C 1000
m22759/21-20-8 20 19/32 6.43 0.066 0.07 Silver coated high strength copper alloy 260°C 1000
m22759/21-20-9 20 19/32 6.43 0.066 0.07 Silver coated high strength copper alloy 260°C 1000


河南三博电子是一家专业MIL-W-22759/21 (M22759/21) | SAE AS22759/21航空线缆的供应商，我公司经营MIL-W-22759/21 (M22759/21) | SAE AS22759/21航空线缆产品多年，质量口碑可靠。如果您有更多的MIL-W-22759/21 (M22759/21) | SAE AS22759/21航空线缆价格问题，欢迎您联系我们厂家
