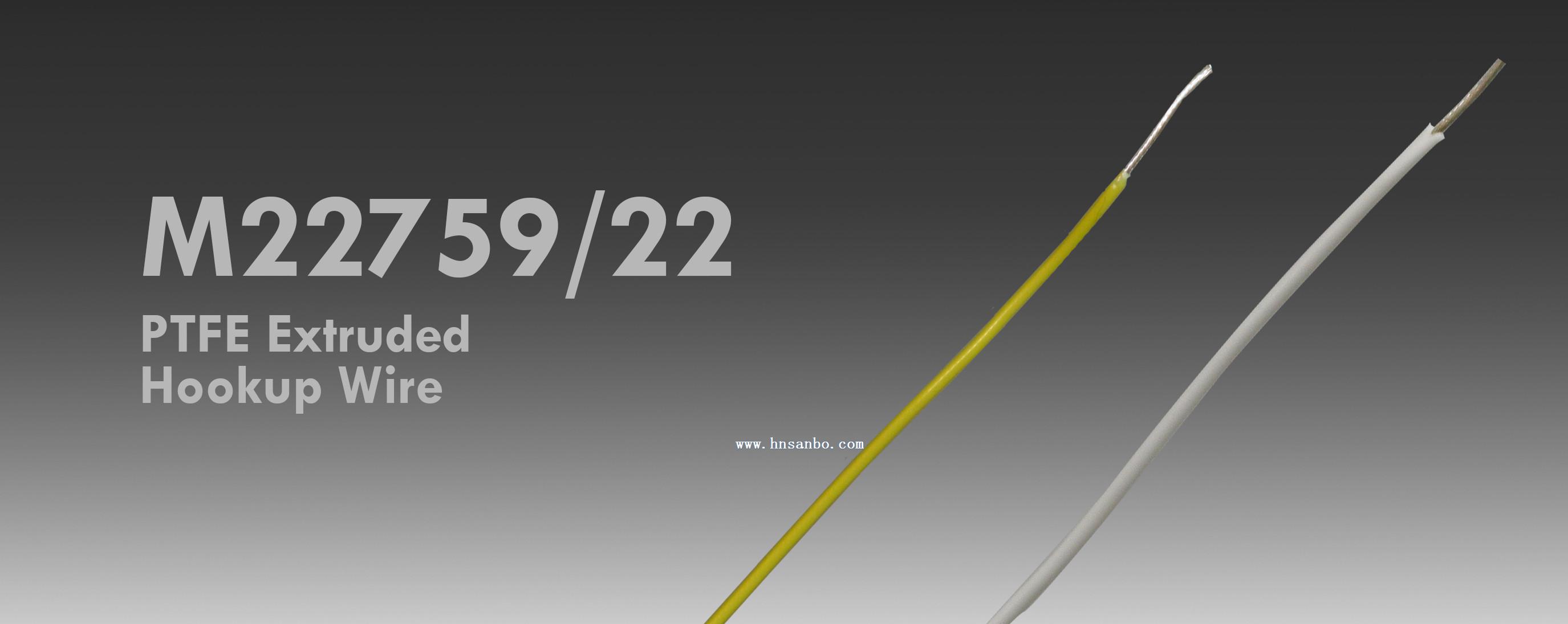

M22759/22系列航空导线

作者：admin 来源： 日期：2015/10/10 21:58:07
MIL-W-22759/22 | SAE AS22759/22航空线缆供应
应用：
航空航天应用，中等重量，耐磨性和机械耐久性是必需的
特性：
镀银绞线高强度铜合金导体
膨化聚四氟乙烯（PTFE）绝缘，按照mil-std-681颜色编码
温度：
200°
额定电压：
600伏

APPLICATIONS:

Aerospace applications where medium weight, abrasion resistance and mechanical durability are required
CHARACTERISTICS:

Stranded silver plated high strength copper alloy conductor
Extruded Polytetrafluoroethylene (PTFE) insulation, color coded in accordance with MIL-STD-681

TEMPERATURE:

200°C
VOLTAGE RATING:

600 volts
MIL-W-22759/22 (M22759/22) | SAE AS22759/22

MIL-W-22759/22 (M22759/22) | SAE AS22759/22
Mil-Spec # AWG Stranding Min O.D. (in) Ma xO.D. (in)
M22759/22-28-* 28 7/36 0.031 0.035 1.32
M22759/22-26-* 26 19/38 0.036 0.04 1.91
M22759/22-24-* 24 19/36 0.041 0.045 2.62
M22759/22-22-* 22 19/34 0.047 0.051 3.68
M22759/22-20-* 20 19/32 0.056 0.06 5.38 The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.
0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White
Example: Size 20, white - M22759/22-20-9; white with orange stripe -
M22759/22-20-93.
MIL-W-22759/22 Wire
SAE AS22729/22 Wire
MIL-Spec Wire

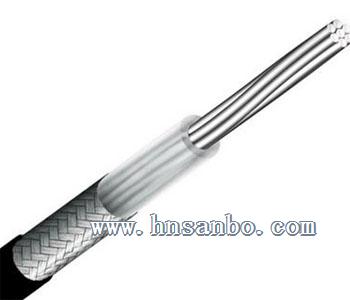

M22759/22 Wire Construction:

Conductor: Silver coated high strength copper alloy
Insulation: Extruded PTFE
M22759/22 Wire Ratings:

Voltage Rating: 600 Volts
Temperature Rating: 200°C

PART NUMBER AWG Conductor Stranding Approx LBS/MFT min O.D. (in) Max O.D. (in) Cond. Material Max. Temp Voltage
m22759/22-28-0 28 7/36 1.32 0.031 0.035 Silver coated high strength copper alloy 200°C 600
m22759/22-28-1 28 7/36 1.32 0.031 0.035 Silver coated high strength copper alloy 200°C 600
m22759/22-28-2 28 7/36 1.32 0.031 0.035 Silver coated high strength copper alloy 200°C 600
m22759/22-28-3 28 7/36 1.32 0.031 0.035 Silver coated high strength copper alloy 200°C 600
m22759/22-28-4 28 7/36 1.32 0.031 0.035 Silver coated high strength copper alloy 200°C 600
m22759/22-28-5 28 7/36 1.32 0.031 0.035 Silver coated high strength copper alloy 200°C 600
m22759/22-28-6 28 7/36 1.32 0.031 0.035 Silver coated high strength copper alloy 200°C 600
m22759/22-28-7 28 7/36 1.32 0.031 0.035 Silver coated high strength copper alloy 200°C 600
m22759/22-28-8 28 7/36 1.32 0.031 0.035 Silver coated high strength copper alloy 200°C 600
m22759/22-28-9 28 7/36 1.32 0.031 0.035 Silver coated high strength copper alloy 200°C 600
m22759/22-26-0 26 19/38 1.91 0.036 0.04 Silver coated high strength copper alloy 200°C 600
m22759/22-26-1 26 19/38 1.91 0.036 0.04 Silver coated high strength copper alloy 200°C 600
m22759/22-26-2 26 19/38 1.91 0.036 0.04 Silver coated high strength copper alloy 200°C 600
m22759/22-26-3 26 19/38 1.91 0.036 0.04 Silver coated high strength copper alloy 200°C 600
m22759/22-26-4 26 19/38 1.91 0.036 0.04 Silver coated high strength copper alloy 200°C 600
m22759/22-26-5 26 19/38 1.91 0.036 0.04 Silver coated high strength copper alloy 200°C 600
m22759/22-26-6 26 19/38 1.91 0.036 0.04 Silver coated high strength copper alloy 200°C 600
m22759/22-26-7 26 19/38 1.91 0.036 0.04 Silver coated high strength copper alloy 200°C 600
m22759/22-26-8 26 19/38 1.91 0.036 0.04 Silver coated high strength copper alloy 200°C 600
m22759/22-26-9 26 19/38 1.91 0.036 0.04 Silver coated high strength copper alloy 200°C 600
m22759/22-24-0 24 19/36 2.61 0.041 0.045 Silver coated high strength copper alloy 200°C 600
m22759/22-24-1 24 19/36 2.61 0.041 0.045 Silver coated high strength copper alloy 200°C 600
m22759/22-24-2 24 19/36 2.61 0.041 0.045 Silver coated high strength copper alloy 200°C 600
m22759/22-24-3 24 19/36 2.61 0.041 0.045 Silver coated high strength copper alloy 200°C 600
m22759/22-24-4 24 19/36 2.61 0.041 0.045 Silver coated high strength copper alloy 200°C 600
m22759/22-24-5 24 19/36 2.61 0.041 0.045 Silver coated high strength copper alloy 200°C 600
m22759/22-24-6 24 19/36 2.61 0.041 0.045 Silver coated high strength copper alloy 200°C 600
m22759/22-24-7 24 19/36 2.61 0.041 0.045 Silver coated high strength copper alloy 200°C 600
m22759/22-24-8 24 19/36 2.61 0.041 0.045 Silver coated high strength copper alloy 200°C 600
m22759/22-24-9 24 19/36 2.61 0.041 0.045 Silver coated high strength copper alloy 200°C 600
m22759/22-22-0 22 19/34 3.68 0.047 0.051 Silver coated high strength copper alloy 200°C 600
m22759/22-22-1 22 19/34 3.68 0.047 0.051 Silver coated high strength copper alloy 200°C 600
m22759/22-22-2 22 19/34 3.68 0.047 0.051 Silver coated high strength copper alloy 200°C 600
m22759/22-22-3 22 19/34 3.68 0.047 0.051 Silver coated high strength copper alloy 200°C 600
m22759/22-22-4 22 19/34 3.68 0.047 0.051 Silver coated high strength copper alloy 200°C 600
m22759/22-22-5 22 19/34 3.68 0.047 0.051 Silver coated high strength copper alloy 200°C 600
m22759/22-22-6 22 19/34 3.68 0.047 0.051 Silver coated high strength copper alloy 200°C 600
m22759/22-22-7 22 19/34 3.68 0.047 0.051 Silver coated high strength copper alloy 200°C 600
m22759/22-22-8 22 19/34 3.68 0.047 0.051 Silver coated high strength copper alloy 200°C 600
m22759/22-22-9 22 19/34 3.68 0.047 0.051 Silver coated high strength copper alloy 200°C 600
m22759/22-20-0 20 19/32 5.38 0.056 0.06 Silver coated high strength copper alloy 200°C 600
m22759/22-20-1 20 19/32 5.38 0.056 0.06 Silver coated high strength copper alloy 200°C 600
m22759/22-20-2 20 19/32 5.38 0.056 0.06 Silver coated high strength copper alloy 200°C 600
m22759/22-20-3 20 19/32 5.38 0.056 0.06 Silver coated high strength copper alloy 200°C 600
m22759/22-20-4 20 19/32 5.38 0.056 0.06 Silver coated high strength copper alloy 200°C 600
m22759/22-20-5 20 19/32 5.38 0.056 0.06 Silver coated high strength copper alloy 200°C 600
m22759/22-20-6 20 19/32 5.38 0.056 0.06 Silver coated high strength copper alloy 200°C 600
m22759/22-20-7 20 19/32 5.38 0.056 0.06 Silver coated high strength copper alloy 200°C 600
m22759/22-20-8 20 19/32 5.38 0.056 0.06 Silver coated high strength copper alloy 200°C 600
m22759/22-20-9 20 19/32 5.38 0.056 0.06 Silver coated high strength copper alloy 200°C 600

河南三博电子是一家专业M22759/22系列航空导线的供应商，我公司经营M22759/22系列航空导线产品多年，质量口碑可靠。如果您有更多的M22759/22系列航空导线价格问题，欢迎您联系我们厂家
