应用：

在中等重量，耐磨性和机械耐久性是必需的航空航天应用

特性：

高镍高强度铜合金导线

膨化聚四氟乙烯（PTFE）绝缘，按照mil-std-681颜色编码

温度：

200°

额定电压：

600伏

MIL-W-22759/23 | SAE AS22759/23

MIL-W-22759/23 (M22759/23)

SAE AS22729

MIL-Spec Wire

600V, 260°C

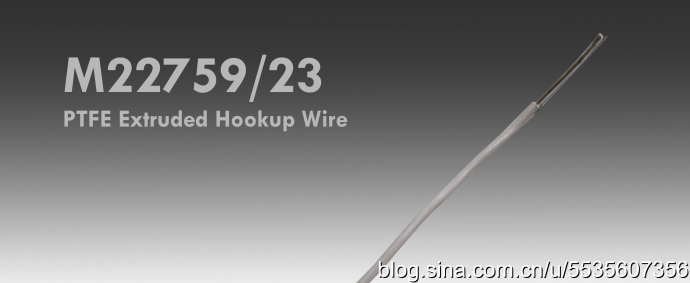

MIL-W-22759/23 (M22759/23) Wire Description:

Conductor: Nickel-plated copper alloy

Insulation: Extruded PTFE

MIL-W-22759/23 (M22759/23) Wire Characteristics:

Voltage Rating: 600 Volts

Temperature Rating: 260°C

MIL-W-22759/23 (M22759/23) Wire Applications:

The durable M22759/23 wire is suitable for use in aircraft engines and other military, government, or civilian applications where abrasion is present.

MIL-W-22759/23 (M22759/23) | SAE AS22759/23

Finished Wire

Mil-Spec #              AWG    Stranding   Min O.D. (in)    Max O.D. (in)     Nom.  Lbs/Mft

M22759/23-28-*       28         7/36      0.031              0.035                   1.34

M22759/23-26-*       26       19/38      0.036              0.040                   1.92

M22759/23-24-*       24       19/36      0.041              0.045                   2.63

M22759/23-22-*       22       19/34      0.047              0.051                   3.73

M22759/23-20-*       20       19/32      0.056              0.060                   5.44

The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.

0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White

Example: Size 20, white - M22759/23-20-9; white with orange stripe -

M22759/23-20-93.

河南三博电子是一家专业MIL-W-22759/23 (M22759/23) | SAE AS22759/23航空线缆的供应商，我公司经营MIL-W-22759/23 (M22759/23) | SAE AS22759/23航空线缆产品多年，质量口碑可靠。如果您有更多的MIL-W-22759/23 (M22759/23) | SAE AS22759/23航空线缆价格问题，欢迎您联系我们厂家
