MIL-W-22759/42 (M22759/42) | SAE AS22759/42

作者：admin 来源： 日期：2015/10/21 15:48:41
MIL-W-22759/42 (M22759/42) | SAE AS22759/42

finished Wire
Mil-Spec #           AWG   Stranding  Min O.D. (in)  MaxO.D. (in)   Nom.Lbs/Mft
M22759/42-26-*   26      19/38       0.038           0.042             1.7
M22759/42-24-*   24      19/36       0.043           0.047             2.3
M22759/42-22-*   22      19/34       0.048           0.052             3.3
M22759/42-20-*   20      19/32       0.056           0.060             4.8
The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.
0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White
Example: Size 20, white - M22759/42-20-9; white with orange stripe -
M22759/42-20-93.

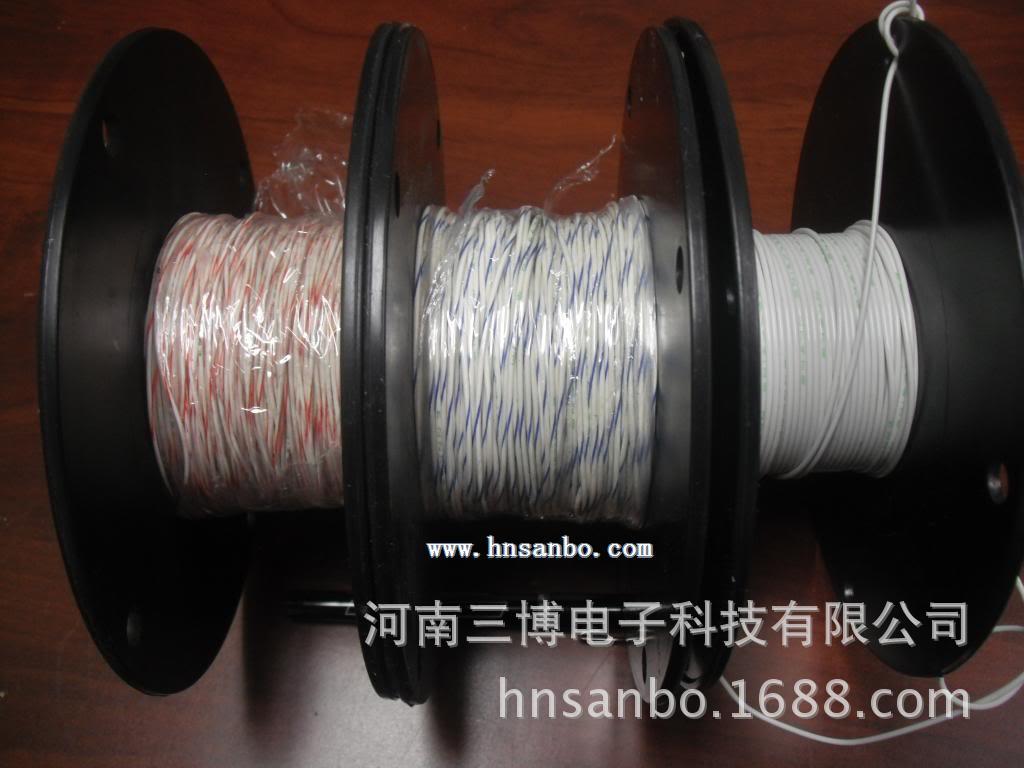

MIL-W-22759/42 Wire (M22759/42 Wire)
SAE AS22729
MIL-Spec Wire

MIL-W-22759/42 Wire (M22759/42 Wire) Construction:

Conductor: Nickel coated high strength copper alloy
Insulation: XL-ETFE
Jacket: XL-ETFE
MIL-W-22759/42 Wire (M22759/42 Wire) Ratings:

Voltage Rating: 600 Volts
Temperature Rating: 200°C

PART NUMBER AWG Conductor Stranding Approx LBS/MFT min O.D. (in) Max O.D. (in) Cond. Material Max. Temp Voltage
M22759/42-26-0 26 19/38 1.7 0.038 0.042 Nickel coated high strength copper alloy 200°C 600
M22759/42-26-1 26 19/38 1.7 0.038 0.042 Nickel coated high strength copper alloy 200°C 600
M22759/42-26-2 26 19/38 1.7 0.038 0.042 Nickel coated high strength copper alloy 200°C 600
M22759/42-26-3 26 19/38 1.7 0.038 0.042 Nickel coated high strength copper alloy 200°C 600
M22759/42-26-4 26 19/38 1.7 0.038 0.042 Nickel coated high strength copper alloy 200°C 600
M22759/42-26-5 26 19/38 1.7 0.038 0.042 Nickel coated high strength copper alloy 200°C 600
M22759/42-26-6 26 19/38 1.7 0.038 0.042 Nickel coated high strength copper alloy 200°C 600
M22759/42-26-7 26 19/38 1.7 0.038 0.042 Nickel coated high strength copper alloy 200°C 600
M22759/42-26-8 26 19/38 1.7 0.038 0.042 Nickel coated high strength copper alloy 200°C 600
M22759/42-26-9 26 19/38 1.7 0.038 0.042 Nickel coated high strength copper alloy 200°C 600
M22759/42-24-0 24 19/36 2.3 0.043 0.047 Nickel coated high strength copper alloy 200°C 600
M22759/42-24-1 24 19/36 2.3 0.043 0.047 Nickel coated high strength copper alloy 200°C 600
M22759/42-24-2 24 19/36 2.3 0.043 0.047 Nickel coated high strength copper alloy 200°C 600
M22759/42-24-3 24 19/36 2.3 0.043 0.047 Nickel coated high strength copper alloy 200°C 600
M22759/42-24-4 24 19/36 2.3 0.043 0.047 Nickel coated high strength copper alloy 200°C 600
M22759/42-24-5 24 19/36 2.3 0.043 0.047 Nickel coated high strength copper alloy 200°C 600
M22759/42-24-6 24 19/36 2.3 0.043 0.047 Nickel coated high strength copper alloy 200°C 600
M22759/42-24-7 24 19/36 2.3 0.043 0.047 Nickel coated high strength copper alloy 200°C 600
M22759/42-24-8 24 19/36 2.3 0.043 0.047 Nickel coated high strength copper alloy 200°C 600
M22759/42-24-9 24 19/36 2.3 0.043 0.047 Nickel coated high strength copper alloy 200°C 600
m22759/42-22-0 22 19/34 3.3 0.048 0.052 Nickel coated high strength copper alloy 200°C 600
m22759/42-22-1 22 19/34 3.3 0.048 0.052 Nickel coated high strength copper alloy 200°C 600
m22759/42-22-2 22 19/34 3.3 0.048 0.052 Nickel coated high strength copper alloy 200°C 600
m22759/42-22-3 22 19/34 3.3 0.048 0.052 Nickel coated high strength copper alloy 200°C 600
m22759/42-22-4 22 19/34 3.3 0.048 0.052 Nickel coated high strength copper alloy 200°C 600
m22759/42-22-5 22 19/34 3.3 0.048 0.052 Nickel coated high strength copper alloy 200°C 600
m22759/42-22-6 22 19/34 3.3 0.048 0.052 Nickel coated high strength copper alloy 200°C 600
m22759/42-22-7 22 19/34 3.3 0.048 0.052 Nickel coated high strength copper alloy 200°C 600
m22759/42-22-8 22 19/34 3.3 0.048 0.052 Nickel coated high strength copper alloy 200°C 600
m22759/42-22-9 22 19/34 3.3 0.048 0.052 Nickel coated high strength copper alloy 200°C 600
m22759/42-20-0 20 19/32 4.8 0.056 0.06 Nickel coated high strength copper alloy 200°C 600
m22759/42-20-1 20 19/32 4.8 0.056 0.06 Nickel coated high strength copper alloy 200°C 600
m22759/42-20-2 20 19/32 4.8 0.056 0.06 Nickel coated high strength copper alloy 200°C 600
m22759/42-20-3 20 19/32 4.8 0.056 0.06 Nickel coated high strength copper alloy 200°C 600
m22759/42-20-4 20 19/32 4.8 0.056 0.06 Nickel coated high strength copper alloy 200°C 600
m22759/42-20-5 20 19/32 4.8 0.056 0.06 Nickel coated high strength copper alloy 200°C 600
m22759/42-20-6 20 19/32 4.8 0.056 0.06 Nickel coated high strength copper alloy 200°C 600
m22759/42-20-7 20 19/32 4.8 0.056 0.06 Nickel coated high strength copper alloy 200°C 600
m22759/42-20-8 20 19/32 4.8 0.056 0.06 Nickel coated high strength copper alloy 200°C 600
m22759/42-20-9 20 19/32 4.8 0.056 0.06 Nickel coated high strength copper alloy 200°C 600
