MIL-W-22759/43 (M22759/43) | SAE AS22759/43

作者：admin 来源： 日期：2015/10/21 17:12:59
用途：

高温机身和航空电子设备开放式安全带的应用
特点：

产品描述：

绞合镀银铜导体
交联改性的ETFE绝缘（双层壁），颜色编码符合MIL-DTL-681
AWG大小2，并有较大的深绿色，芳香polamide编织与5D的颜色代码代号
温度等级：

200℃
额定电压：

600伏
MIL-W-22759/43 (M22759/43) | SAE AS22759/43

finished Wire
Mil-Spec #           AWG   Stranding   Min O.D. (in)   MaxO.D. (in)   Nom.Lbs/Mft
M22759/43-26-*   26      19/38         0.038              0.042            1.7
M22759/43-24-*   24      19/36         0.043              0.047            2.3
M22759/43-22-*   22      19/34         0.048              0.052            3.2
M22759/43-20-*   20      19/32         0.056              0.060            4.7
M22759/43-18-*   18      19/30         0.067              0.073            7.2
M22759/43-16-*   16      19/29         0.074              0.080            9.0
M22759/43-14-*   14      19/27         0.091              0.097            13.8
M22759/43-12-*   12      37/28         0.108              0.114            20.5
M22759/43-10-*   10      37/26         0.130              0.138            32.4
M22759/43-8-*      8      133/29        0.187              0.203            61.9
M22759/43-6-*      6      133/27        0.231              0.251            94.5
M22759/43-4-*      4      133/25        0.300              0.320            158
M22759/43-2-*      2      665/30        0.389              0.421            239
M22759/43-1-*      1      817/30        0.429              0.461            305
M22759/43-01-*   1/0    1045/30      0.469               0.501            385
M22759/43-02-*   2/0    1330/30      0.529               0.561            487

The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.
0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White
Example: Size 20, white - M22759/42-20-9; white with orange stripe -
M22759/42-20-93.

MIL-W-22759/43
SAE AS22759/43
Standard Wall
MIL Spec Wire

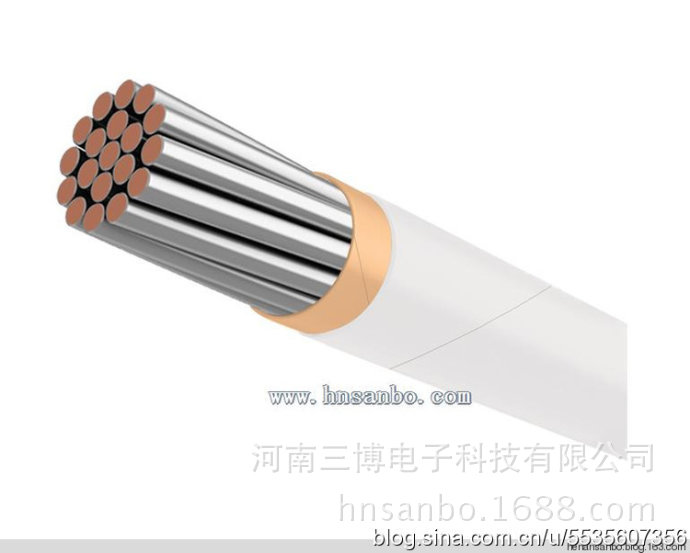

M22759/43 Construction:

Conductor: Silver Coated Copper Conductor
Insulation: Fluoropolymer Cross-linked Modified ETFE Dual Insulation
Jacket: XL-ETFE
Braid: Treated aromatic polyamide
M22759/43 Ratings:

Voltage Rating: 600 Volts
Temperature Rating: 200°C (392°F)

PART NUMBER AWG Conductor Stranding Approx LBS/MFT min O.D. (in) Max O.D. (in) Cond. Material Max. Temp Voltage
M22759/43/26-0 26 19/38 1.7 0.038 0.042 Silver Coated Copper Conductor 200°C 600
M22759/43/26-1 26 19/38 1.7 0.038 0.042 Silver Coated Copper Conductor 200°C 600
M22759/43/26-2 26 19/38 1.7 0.038 0.042 Silver Coated Copper Conductor 200°C 600
M22759/43/26-3 26 19/38 1.7 0.038 0.042 Silver Coated Copper Conductor 200°C 600
M22759/43/26-4 26 19/38 1.7 0.038 0.042 Silver Coated Copper Conductor 200°C 600
M22759/43/26-5 26 19/38 1.7 0.038 0.042 Silver Coated Copper Conductor 200°C 600
M22759/43/26-6 26 19/38 1.7 0.038 0.042 Silver Coated Copper Conductor 200°C 600
M22759/43/26-7 26 19/38 1.7 0.038 0.042 Silver Coated Copper Conductor 200°C 600
M22759/43/26-8 26 19/38 1.7 0.038 0.042 Silver Coated Copper Conductor 200°C 600
M22759/43/26-9 26 19/38 1.7 0.038 0.042 Silver Coated Copper Conductor 200°C 600
M22759/43-24-0 24 19/36 2.3 0.043 0.047 Silver Coated Copper Conductor 200°C 600
M22759/43-24-1 24 19/36 2.3 0.043 0.047 Silver Coated Copper Conductor 200°C 600
M22759/43-24-2 24 19/36 2.3 0.043 0.047 Silver Coated Copper Conductor 200°C 600
M22759/43-24-3 24 19/36 2.3 0.043 0.047 Silver Coated Copper Conductor 200°C 600
M22759/43-24-4 24 19/36 2.3 0.043 0.047 Silver Coated Copper Conductor 200°C 600
M22759/43-24-5 24 19/36 2.3 0.043 0.047 Silver Coated Copper Conductor 200°C 600
M22759/43-24-6 24 19/36 2.3 0.043 0.047 Silver Coated Copper Conductor 200°C 600
M22759/43-24-7 24 19/36 2.3 0.043 0.047 Silver Coated Copper Conductor 200°C 600
M22759/43-24-8 24 19/36 2.3 0.043 0.047 Silver Coated Copper Conductor 200°C 600
M22759/43-24-9 24 19/36 2.3 0.043 0.047 Silver Coated Copper Conductor 200°C 600
m22759/43-22-0 22 19/34 3.2 0.048 0.052 Silver Coated Copper Conductor 200°C 600
m22759/43-22-1 22 19/34 3.2 0.048 0.052 Silver Coated Copper Conductor 200°C 600
m22759/43-22-2 22 19/34 3.2 0.048 0.052 Silver Coated Copper Conductor 200°C 600
m22759/43-22-3 22 19/34 3.2 0.048 0.052 Silver Coated Copper Conductor 200°C 600
m22759/43-22-4 22 19/34 3.2 0.048 0.052 Silver Coated Copper Conductor 200°C 600
m22759/43-22-5 22 19/34 3.2 0.048 0.052 Silver Coated Copper Conductor 200°C 600
m22759/43-22-6 22 19/34 3.2 0.048 0.052 Silver Coated Copper Conductor 200°C 600
m22759/43-22-7 22 19/34 3.2 0.048 0.052 Silver Coated Copper Conductor 200°C 600
m22759/43-22-8 22 19/34 3.2 0.048 0.052 Silver Coated Copper Conductor 200°C 600
m22759/43-22-9 22 19/34 3.2 0.048 0.052 Silver Coated Copper Conductor 200°C 600
m22759/43-20-0 20 19/32 4.7 0.056 0.06 Silver Coated Copper Conductor 200°C 600
m22759/43-20-1 20 19/32 4.7 0.056 0.06 Silver Coated Copper Conductor 200°C 600
m22759/43-20-2 20 19/32 4.7 0.056 0.06 Silver Coated Copper Conductor 200°C 600
m22759/43-20-3 20 19/32 4.7 0.056 0.06 Silver Coated Copper Conductor 200°C 600
m22759/43-20-4 20 19/32 4.7 0.056 0.06 Silver Coated Copper Conductor 200°C 600
m22759/43-20-5 20 19/32 4.7 0.056 0.06 Silver Coated Copper Conductor 200°C 600
m22759/43-20-6 20 19/32 4.7 0.056 0.06 Silver Coated Copper Conductor 200°C 600
m22759/43-20-7 20 19/32 4.7 0.056 0.06 Silver Coated Copper Conductor 200°C 600
m22759/43-20-8 20 19/32 4.7 0.056 0.06 Silver Coated Copper Conductor 200°C 600
m22759/43-20-9 20 19/32 4.7 0.056 0.06 Silver Coated Copper Conductor 200°C 600
M22759/43-18-0 18 19/30 7.2 0.067 0.073 Silver Coated Copper Conductor 200°C 600
M22759/43-18-1 18 19/30 7.2 0.067 0.073 Silver Coated Copper Conductor 200°C 600
M22759/43-18-2 18 19/30 7.2 0.067 0.073 Silver Coated Copper Conductor 200°C 600
M22759/43-18-3 18 19/30 7.2 0.067 0.073 Silver Coated Copper Conductor 200°C 600
M22759/43-18-4 18 19/30 7.2 0.067 0.073 Silver Coated Copper Conductor 200°C 600
M22759/43-18-5 18 19/30 7.2 0.067 0.073 Silver Coated Copper Conductor 200°C 600
M22759/43-18-6 18 19/30 7.2 0.067 0.073 Silver Coated Copper Conductor 200°C 600
M22759/43-18-7 18 19/30 7.2 0.067 0.073 Silver Coated Copper Conductor 200°C 600
M22759/43-18-8 18 19/30 7.2 0.067 0.073 Silver Coated Copper Conductor 200°C 600
M22759/43-18-9 18 19/30 7.2 0.067 0.073 Silver Coated Copper Conductor 200°C 600
M22759/43-16-0 16 19/29 9 0.074 0.08 Silver Coated Copper Conductor 200°C 600
M22759/43-16-1 16 19/29 9 0.074 0.08 Silver Coated Copper Conductor 200°C 600
M22759/43-16-2 16 19/29 9 0.074 0.08 Silver Coated Copper Conductor 200°C 600
M22759/43-16-3 16 19/29 9 0.074 0.08 Silver Coated Copper Conductor 200°C 600
M22759/43-16-4 16 19/29 9 0.074 0.08 Silver Coated Copper Conductor 200°C 600
M22759/43-16-5 16 19/29 9 0.074 0.08 Silver Coated Copper Conductor 200°C 600
M22759/43-16-6 16 19/29 9 0.074 0.08 Silver Coated Copper Conductor 200°C 600
M22759/43-16-7 16 19/29 9 0.074 0.08 Silver Coated Copper Conductor 200°C 600
M22759/43-16-8 16 19/29 9 0.074 0.08 Silver Coated Copper Conductor 200°C 600
M22759/43-16-9 16 19/29 9 0.074 0.08 Silver Coated Copper Conductor 200°C 600
M22759/43-14-0 14 19/27 13.8 0.091 0.097 Silver Coated Copper Conductor 200°C 600
M22759/43-14-1 14 19/27 13.8 0.091 0.097 Silver Coated Copper Conductor 200°C 600
M22759/43-14-2 14 19/27 13.8 0.091 0.097 Silver Coated Copper Conductor 200°C 600
M22759/43-14-3 14 19/27 13.8 0.091 0.097 Silver Coated Copper Conductor 200°C 600
M22759/43-14-4 14 19/27 13.8 0.091 0.097 Silver Coated Copper Conductor 200°C 600
M22759/43-14-5 14 19/27 13.8 0.091 0.097 Silver Coated Copper Conductor 200°C 600
M22759/43-14-6 14 19/27 13.8 0.091 0.097 Silver Coated Copper Conductor 200°C 600
M22759/43-14-7 14 19/27 13.8 0.091 0.097 Silver Coated Copper Conductor 200°C 600
M22759/43-14-8 14 19/27 13.8 0.091 0.097 Silver Coated Copper Conductor 200°C 600
M22759/43-14-9 14 19/27 13.8 0.091 0.097 Silver Coated Copper Conductor 200°C 600
M22759/43-12-0 12 37/28 20.5 0.108 0.114 Silver Coated Copper Conductor 200°C 600
M22759/43-12-1 12 37/28 20.5 0.108 0.114 Silver Coated Copper Conductor 200°C 600
M22759/43-12-2 12 37/28 20.5 0.108 0.114 Silver Coated Copper Conductor 200°C 600
M22759/43-12-3 12 37/28 20.5 0.108 0.114 Silver Coated Copper Conductor 200°C 600
M22759/43-12-4 12 37/28 20.5 0.108 0.114 Silver Coated Copper Conductor 200°C 600
M22759/43-12-5 12 37/28 20.5 0.108 0.114 Silver Coated Copper Conductor 200°C 600
M22759/43-12-6 12 37/28 20.5 0.108 0.114 Silver Coated Copper Conductor 200°C 600
M22759/43-12-7 12 37/28 20.5 0.108 0.114 Silver Coated Copper Conductor 200°C 600
M22759/43-12-8 12 37/28 20.5 0.108 0.114 Silver Coated Copper Conductor 200°C 600
M22759/43-12-9 12 37/28 20.5 0.108 0.114 Silver Coated Copper Conductor 200°C 600
m22759/43-10-0 10 37/26 32.4 0.13 0.138 Silver Coated Copper Conductor 200°C 600
m22759/43-10-1 10 37/26 32.4 0.13 0.138 Silver Coated Copper Conductor 200°C 600
m22759/43-10-2 10 37/26 32.4 0.13 0.138 Silver Coated Copper Conductor 200°C 600
m22759/43-10-3 10 37/26 32.4 0.13 0.138 Silver Coated Copper Conductor 200°C 600
m22759/43-10-4 10 37/26 32.4 0.13 0.138 Silver Coated Copper Conductor 200°C 600
m22759/43-10-5 10 37/26 32.4 0.13 0.138 Silver Coated Copper Conductor 200°C 600
m22759/43-10-6 10 37/26 32.4 0.13 0.138 Silver Coated Copper Conductor 200°C 600
m22759/43-10-7 10 37/26 32.4 0.13 0.138 Silver Coated Copper Conductor 200°C 600
m22759/43-10-8 10 37/26 32.4 0.13 0.138 Silver Coated Copper Conductor 200°C 600
m22759/43-10-9 10 37/26 32.4 0.13 0.138 Silver Coated Copper Conductor 200°C 600
m22759/43-8-0 8 133/29 61.9 0.187 0.203 Silver Coated Copper Conductor 200°C 600
m22759/43-8-1 8 133/29 61.9 0.187 0.203 Silver Coated Copper Conductor 200°C 600
m22759/43-8-2 8 133/29 61.9 0.187 0.203 Silver Coated Copper Conductor 200°C 600
m22759/43-8-3 8 133/29 61.9 0.187 0.203 Silver Coated Copper Conductor 200°C 600
m22759/43-8-4 8 133/29 61.9 0.187 0.203 Silver Coated Copper Conductor 200°C 600
m22759/43-8-5 8 133/29 61.9 0.187 0.203 Silver Coated Copper Conductor 200°C 600
m22759/43-8-6 8 133/29 61.9 0.187 0.203 Silver Coated Copper Conductor 200°C 600
m22759/43-8-7 8 133/29 61.9 0.187 0.203 Silver Coated Copper Conductor 200°C 600
m22759/43-8-8 8 133/29 61.9 0.187 0.203 Silver Coated Copper Conductor 200°C 600
m22759/43-8-9 8 133/29 61.9 0.187 0.203 Silver Coated Copper Conductor 200°C 600
m22759/43-6-0 6 133/27 94.5 0.231 0.251 Silver Coated Copper Conductor 200°C 600
m22759/43-6-1 6 133/27 94.5 0.231 0.251 Silver Coated Copper Conductor 200°C 600
m22759/43-6-2 6 133/27 94.5 0.231 0.251 Silver Coated Copper Conductor 200°C 600
m22759/43-6-3 6 133/27 94.5 0.231 0.251 Silver Coated Copper Conductor 200°C 600
m22759/43-6-4 6 133/27 94.5 0.231 0.251 Silver Coated Copper Conductor 200°C 600
m22759/43-6-5 6 133/27 94.5 0.231 0.251 Silver Coated Copper Conductor 200°C 600
m22759/43-6-6 6 133/27 94.5 0.231 0.251 Silver Coated Copper Conductor 200°C 600
m22759/43-6-7 6 133/27 94.5 0.231 0.251 Silver Coated Copper Conductor 200°C 600
m22759/43-6-8 6 133/27 94.5 0.231 0.251 Silver Coated Copper Conductor 200°C 600
m22759/43-6-9 6 133/27 94.5 0.231 0.251 Silver Coated Copper Conductor 200°C 600
m22759/43-4-0 4 133/25 158 0.3 0.32 Silver Coated Copper Conductor 200°C 600
m22759/43-4-1 4 133/25 158 0.3 0.32 Silver Coated Copper Conductor 200°C 600
m22759/43-4-2 4 133/25 158 0.3 0.32 Silver Coated Copper Conductor 200°C 600
m22759/43-4-3 4 133/25 158 0.3 0.32 Silver Coated Copper Conductor 200°C 600
m22759/43-4-4 4 133/25 158 0.3 0.32 Silver Coated Copper Conductor 200°C 600
m22759/43-4-5 4 133/25 158 0.3 0.32 Silver Coated Copper Conductor 200°C 600
m22759/43-4-6 4 133/25 158 0.3 0.32 Silver Coated Copper Conductor 200°C 600
m22759/43-4-7 4 133/25 158 0.3 0.32 Silver Coated Copper Conductor 200°C 600
m22759/43-4-8 4 133/25 158 0.3 0.32 Silver Coated Copper Conductor 200°C 600
m22759/43-4-9 4 133/25 158 0.3 0.32 Silver Coated Copper Conductor 200°C 600
M22759/43-2-0 2 665/30 239 0.39 0.428 Silver Coated Copper Conductor 200°C 600
M22759/43-2-1 2 665/30 239 0.39 0.428 Silver Coated Copper Conductor 200°C 600
M22759/43-2-2 2 665/30 239 0.39 0.428 Silver Coated Copper Conductor 200°C 600
M22759/43-2-3 2 665/30 239 0.39 0.428 Silver Coated Copper Conductor 200°C 600
M22759/43-2-4 2 665/30 239 0.39 0.428 Silver Coated Copper Conductor 200°C 600
M22759/43-2-5 2 665/30 239 0.39 0.428 Silver Coated Copper Conductor 200°C 600
M22759/43-2-6 2 665/30 239 0.39 0.428 Silver Coated Copper Conductor 200°C 600
M22759/43-2-7 2 665/30 239 0.39 0.428 Silver Coated Copper Conductor 200°C 600
M22759/43-2-8 2 665/30 239 0.39 0.428 Silver Coated Copper Conductor 200°C 600
M22759/43-2-9 2 665/30 239 0.39 0.428 Silver Coated Copper Conductor 200°C 600
M22759/43-1-0 1 817/30 290 0.429 0.461 Silver Coated Copper Conductor 200°C 600
M22759/43-1-1 1 817/30 290 0.429 0.461 Silver Coated Copper Conductor 200°C 600
M22759/43-1-2 1 817/30 290 0.429 0.461 Silver Coated Copper Conductor 200°C 600
M22759/43-1-3 1 817/30 290 0.429 0.461 Silver Coated Copper Conductor 200°C 600
M22759/43-1-4 1 817/30 290 0.429 0.461 Silver Coated Copper Conductor 200°C 600
M22759/43-1-5 1 817/30 290 0.429 0.461 Silver Coated Copper Conductor 200°C 600
M22759/43-1-6 1 817/30 290 0.429 0.461 Silver Coated Copper Conductor 200°C 600
M22759/43-1-7 1 817/30 290 0.429 0.461 Silver Coated Copper Conductor 200°C 600
M22759/43-1-8 1 817/30 290 0.429 0.461 Silver Coated Copper Conductor 200°C 600
M22759/43-1-9 1 817/30 290 0.429 0.461 Silver Coated Copper Conductor 200°C 600
M22759/43-01-0 1/0 1045/30 377 0.469 0.501 Silver Coated Copper Conductor 200°C 600
M22759/43-01-1 1/0 1045/30 377 0.469 0.501 Silver Coated Copper Conductor 200°C 600
M22759/43-01-2 1/0 1045/30 377 0.469 0.501 Silver Coated Copper Conductor 200°C 600
M22759/43-01-3 1/0 1045/30 377 0.469 0.501 Silver Coated Copper Conductor 200°C 600
M22759/43-01-4 1/0 1045/30 377 0.469 0.501 Silver Coated Copper Conductor 200°C 600
M22759/43-01-5 1/0 1045/30 377 0.469 0.501 Silver Coated Copper Conductor 200°C 600
M22759/43-01-6 1/0 1045/30 377 0.469 0.501 Silver Coated Copper Conductor 200°C 600
M22759/43-01-7 1/0 1045/30 377 0.469 0.501 Silver Coated Copper Conductor 200°C 600
M22759/43-01-8 1/0 1045/30 377 0.469 0.501 Silver Coated Copper Conductor 200°C 600
M22759/43-01-9 1/0 1045/30 377 0.469 0.501 Silver Coated Copper Conductor 200°C 600
M22759/43-02-0 2/0 1330/30 487 0.529 0.561 Silver Coated Copper Conductor 200°C 600
M22759/43-02-1 2/0 1330/30 487 0.529 0.561 Silver Coated Copper Conductor 200°C 600
M22759/43-02-2 2/0 1330/30 487 0.529 0.561 Silver Coated Copper Conductor 200°C 600
M22759/43-02-3 2/0 1330/30 487 0.529 0.561 Silver Coated Copper Conductor 200°C 600
M22759/43-02-4 2/0 1330/30 487 0.529 0.561 Silver Coated Copper Conductor 200°C 600
M22759/43-02-5 2/0 1330/30 487 0.529 0.561 Silver Coated Copper Conductor 200°C 600
M22759/43-02-6 2/0 1330/30 487 0.529 0.561 Silver Coated Copper Conductor 200°C 600
M22759/43-02-7 2/0 1330/30 487 0.529 0.561 Silver Coated Copper Conductor 200°C 600
M22759/43-02-8 2/0 1330/30 487 0.529 0.561 Silver Coated Copper Conductor 200°C 600
M22759/43-02-9 2/0 1330/30 487 0.529 0.561 Silver Coated Copper Conductor 200°C 600


河南三博电子是一家专业MIL-W-22759/43 (M22759/43) | SAE AS22759/43的供应商，我公司经营MIL-W-22759/43 (M22759/43) | SAE AS22759/43产品多年，质量口碑可靠。如果您有更多的MIL-W-22759/43 (M22759/43) | SAE AS22759/43价格问题，欢迎您联系我们厂家

  • 上一篇：MIL-W-22759/42 (M22759/42) | SAE AS22759/42
  • 下一篇：m22759/87线缆

    • 其他信息

    Coryright 河南三博电子科技有限公司 版权所有

    公司地址：河南省郑州市中原区颖河路76号颖河港湾11栋2单元1004 地址：www.hnsanbo.com

    电话：0371-55365505 传真：0371-86257077 邮箱：hnsanbo@163.com 网站关键词:连接器-航空线缆-航空插头、航空线缆、军品连接器、军用操作工具,军用操作工具,集成电路,电源开关生产
