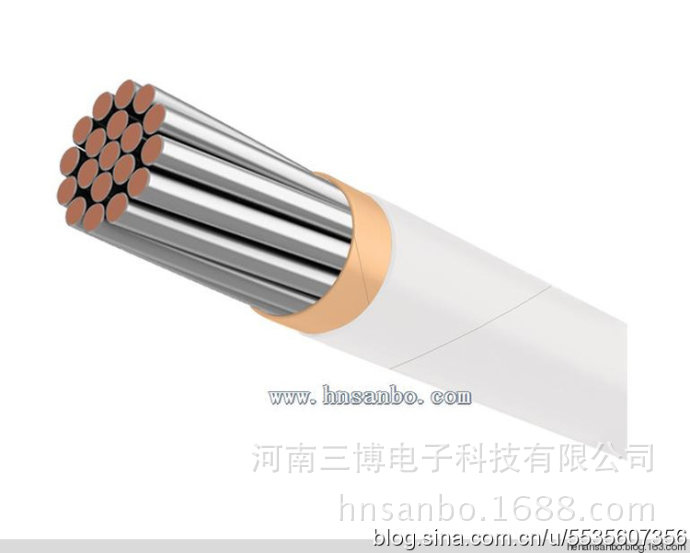

M22759/46系列镍包高强度铜合金航空线缆

作者：admin 来源： 日期：2015/10/22 22:01:32
mil-w-22759 | SAE as22759/46/46
mil-w-22759
SAE as22729
军用规格导线
m22759/46构成：
导体：镍包高强度铜合金
绝缘：xl-etfe单层
m22759/46额定值：
额定电压：600伏
温度等级：200°


Part Number AWG Size Conductor Stranding Approx LBS/MFT Min O.D. (in) Max O.D. (in) Nom.Lbs/Mft
M22759/46-28-* 28 7/36 0.91 0.025 0.029 0.91
M22759/46-26-* 26 19/38 1.4 0.03 0.034 1.4
M22759/46-24-* 24 19/36 2 0.035 0.039 2
M22759/46-22-* 22 19/34 2.9 0.041 0.045 2.9
M22759/46-20-* 20 19/32 4.4 0.048 0.052 4.4

上表中的星号应由mil-std-681按照颜色代码指示器取代。
0 -黑色，1 -棕色，2 -红色，3 -橙，4 -黄，5 -绿色，6 - 7 -紫色，8 -灰色，9 -白色
例如：20号，白m22759 / 11-20-9；白色和橙色的条纹—
m22759 / 11-20-93。

PART NUMBER AWG Conductor Stranding Approx LBS/MFT min O.D. (in) Max O.D. (in) Cond. Material Max. Temp Voltage
M22759/46/28-0 28 7/36 0.91 0.025 0.029 Nickel coated high strength copper alloy 200°C 600
M22759/46/28-1 28 7/36 0.91 0.025 0.029 Nickel coated high strength copper alloy 200°C 600
M22759/46/28-2 28 7/36 0.91 0.025 0.029 Nickel coated high strength copper alloy 200°C 600
M22759/46/28-3 28 7/36 0.91 0.025 0.029 Nickel coated high strength copper alloy 200°C 600
M22759/46/28-4 28 7/36 0.91 0.025 0.029 Nickel coated high strength copper alloy 200°C 600
M22759/46/28-5 28 7/36 0.91 0.025 0.029 Nickel coated high strength copper alloy 200°C 600
M22759/46/28-6 28 7/36 0.91 0.025 0.029 Nickel coated high strength copper alloy 200°C 600
M22759/46/28-7 28 7/36 0.91 0.025 0.029 Nickel coated high strength copper alloy 200°C 600
M22759/46/28-8 28 7/36 0.91 0.025 0.029 Nickel coated high strength copper alloy 200°C 600
M22759/46/28-9 28 7/36 0.91 0.025 0.029 Nickel coated high strength copper alloy 200°C 600
M22759/46/26-0 26 19/38 1.4 0.03 0.034 Nickel coated high strength copper alloy 200°C 600
M22759/46/26-1 26 19/38 1.4 0.03 0.034 Nickel coated high strength copper alloy 200°C 600
M22759/46/26-2 26 19/38 1.4 0.03 0.034 Nickel coated high strength copper alloy 200°C 600
M22759/46/26-3 26 19/38 1.4 0.03 0.034 Nickel coated high strength copper alloy 200°C 600
M22759/46/26-4 26 19/38 1.4 0.03 0.034 Nickel coated high strength copper alloy 200°C 600
M22759/46/26-5 26 19/38 1.4 0.03 0.034 Nickel coated high strength copper alloy 200°C 600
M22759/46/26-6 26 19/38 1.4 0.03 0.034 Nickel coated high strength copper alloy 200°C 600
M22759/46/26-7 26 19/38 1.4 0.03 0.034 Nickel coated high strength copper alloy 200°C 600
M22759/46/26-8 26 19/38 1.4 0.03 0.034 Nickel coated high strength copper alloy 200°C 600
M22759/46/26-9 26 19/38 1.4 0.03 0.034 Nickel coated high strength copper alloy 200°C 600
M22759/46-24-0 24 19/36 2 0.035 0.039 Nickel coated high strength copper alloy 200°C 600
M22759/46-24-1 24 19/36 2 0.035 0.039 Nickel coated high strength copper alloy 200°C 600
M22759/46-24-2 24 19/36 2 0.035 0.039 Nickel coated high strength copper alloy 200°C 600
M22759/46-24-3 24 19/36 2 0.035 0.039 Nickel coated high strength copper alloy 200°C 600
M22759/46-24-4 24 19/36 2 0.035 0.039 Nickel coated high strength copper alloy 200°C 600
M22759/46-24-5 24 19/36 2 0.035 0.039 Nickel coated high strength copper alloy 200°C 600
M22759/46-24-6 24 19/36 2 0.035 0.039 Nickel coated high strength copper alloy 200°C 600
M22759/46-24-7 24 19/36 2 0.035 0.039 Nickel coated high strength copper alloy 200°C 600
M22759/46-24-8 24 19/36 2 0.035 0.039 Nickel coated high strength copper alloy 200°C 600
M22759/46-24-9 24 19/36 2 0.035 0.039 Nickel coated high strength copper alloy 200°C 600
m22759/46-22-0 22 19/34 2.8 0.041 0.045 Nickel coated high strength copper alloy 200°C 600
m22759/46-22-1 22 19/34 2.8 0.041 0.045 Nickel coated high strength copper alloy 200°C 600
m22759/46-22-2 22 19/34 2.8 0.041 0.045 Nickel coated high strength copper alloy 200°C 600
m22759/46-22-3 22 19/34 2.8 0.041 0.045 Nickel coated high strength copper alloy 200°C 600
m22759/46-22-4 22 19/34 2.8 0.041 0.045 Nickel coated high strength copper alloy 200°C 600
m22759/46-22-5 22 19/34 2.8 0.041 0.045 Nickel coated high strength copper alloy 200°C 600
m22759/46-22-6 22 19/34 2.8 0.041 0.045 Nickel coated high strength copper alloy 200°C 600
m22759/46-22-7 22 19/34 2.8 0.041 0.045 Nickel coated high strength copper alloy 200°C 600
m22759/46-22-8 22 19/34 2.8 0.041 0.045 Nickel coated high strength copper alloy 200°C 600
m22759/46-22-9 22 19/34 2.8 0.041 0.045 Nickel coated high strength copper alloy 200°C 600
m22759/46-20-0 20 19/32 4.3 0.048 0.052 Nickel coated high strength copper alloy 200°C 600
m22759/46-20-1 20 19/32 4.3 0.048 0.052 Nickel coated high strength copper alloy 200°C 600
m22759/46-20-2 20 19/32 4.3 0.048 0.052 Nickel coated high strength copper alloy 200°C 600
m22759/46-20-3 20 19/32 4.3 0.048 0.052 Nickel coated high strength copper alloy 200°C 600
m22759/46-20-4 20 19/32 4.3 0.048 0.052 Nickel coated high strength copper alloy 200°C 600
m22759/46-20-5 20 19/32 4.3 0.048 0.052 Nickel coated high strength copper alloy 200°C 600
m22759/46-20-6 20 19/32 4.3 0.048 0.052 Nickel coated high strength copper alloy 200°C 600
m22759/46-20-7 20 19/32 4.3 0.048 0.052 Nickel coated high strength copper alloy 200°C 600
m22759/46-20-8 20 19/32 4.3 0.048 0.052 Nickel coated high strength copper alloy 200°C 600
m22759/46-20-9 20 19/32 4.3 0.048 0.052 Nickel coated high strength copper alloy 200°C 600

河南三博电子是一家专业M22759/46系列镍包高强度铜合金航空线缆的供应商，我公司经营M22759/46系列镍包高强度铜合金航空线缆产品多年，质量口碑可靠。如果您有更多的M22759/46系列镍包高强度铜合金航空线缆价格问题，欢迎您联系我们厂家
