MIL-W-22759/81 (M22759/81) | SAE AS22759/81航空线缆

作者：admin 来源： 日期：2015/10/23 10:55:46

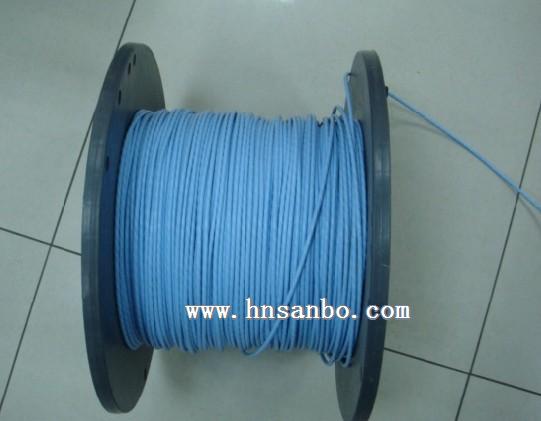

mil-dtl-22759/81线（m22759/81线）
SAE as22729
军用规格的电线
mil-dtl-22759/81线（m22759/81线）构造：
导体：镀银高强度铜合金
绝缘材料：氟聚合物/聚酰亚胺胶带
mil-dtl-22759/81线（m22759/81线）评级：
额定电压：600伏
温度等级：200°
应用：
需要出色的热稳定性，重量轻，高强度的航空航天应用

Mil-Spec # AWG Stranding Min O.D. (in) MaxO.D. (in) Nom.Lbs/Mft
M22759/81-26-* 26 19/38 0.03 0.034 1.3
M22759/81-24-* 24 19/36 0.034 0.038 1.9
M22759/81-22-* 22 19/34 0.04 0.043 2.8
M22759/81-20-* 20 19/32 0.048 0.051 4.3



PART NUMBER AWG Conductor Stranding Approx LBS/MFT min O.D. (in) Max O.D. (in) Cond. Material Min. Temp Max. Temp Voltage
M22759/81/26-0 26 19/38 1.3 0.03 0.034 Silver coated high strength copper alloy 　 200°C 600
M22759/81/26-1 26 19/38 1.3 0.03 0.034 Silver coated high strength copper alloy 　 200°C 600
M22759/81/26-2 26 19/38 1.3 0.03 0.034 Silver coated high strength copper alloy 　 200°C 600
M22759/81/26-3 26 19/38 1.3 0.03 0.034 Silver coated high strength copper alloy 　 200°C 600
M22759/81/26-4 26 19/38 1.3 0.03 0.034 Silver coated high strength copper alloy 　 200°C 600
M22759/81/26-5 26 19/38 1.3 0.03 0.034 Silver coated high strength copper alloy 　 200°C 600
M22759/81/26-6 26 19/38 1.3 0.03 0.034 Silver coated high strength copper alloy 　 200°C 600
M22759/81/26-7 26 19/38 1.3 0.03 0.034 Silver coated high strength copper alloy 　 200°C 600
M22759/81/26-8 26 19/38 1.3 0.03 0.034 Silver coated high strength copper alloy 　 200°C 600
M22759/81/26-9 26 19/38 1.3 0.03 0.034 Silver coated high strength copper alloy 　 200°C 600
M22759/81-24-0 24 19/36 1.9 0.034 0.038 Silver coated high strength copper alloy 　 200°C 600
M22759/81-24-1 24 19/36 1.9 0.034 0.038 Silver coated high strength copper alloy 　 200°C 600
M22759/81-24-2 24 19/36 1.9 0.034 0.038 Silver coated high strength copper alloy 　 200°C 600
M22759/81-24-3 24 19/36 1.9 0.034 0.038 Silver coated high strength copper alloy 　 200°C 600
M22759/81-24-4 24 19/36 1.9 0.034 0.038 Silver coated high strength copper alloy 　 200°C 600
M22759/81-24-5 24 19/36 1.9 0.034 0.038 Silver coated high strength copper alloy 　 200°C 600
M22759/81-24-6 24 19/36 1.9 0.034 0.038 Silver coated high strength copper alloy 　 200°C 600
M22759/81-24-7 24 19/36 1.9 0.034 0.038 Silver coated high strength copper alloy 　 200°C 600
M22759/81-24-8 24 19/36 1.9 0.034 0.038 Silver coated high strength copper alloy 　 200°C 600
M22759/81-24-9 24 19/36 1.9 0.034 0.038 Silver coated high strength copper alloy 　 200°C 600
m22759/81-22-0 22 19/34 2.8 0.04 0.043 Silver coated high strength copper alloy 　 200°C 600
m22759/81-22-1 22 19/34 2.8 0.04 0.043 Silver coated high strength copper alloy 　 200°C 600
m22759/81-22-2 22 19/34 2.8 0.04 0.043 Silver coated high strength copper alloy 　 200°C 600
m22759/81-22-3 22 19/34 2.8 0.04 0.043 Silver coated high strength copper alloy 　 200°C 600
m22759/81-22-4 22 19/34 2.8 0.04 0.043 Silver coated high strength copper alloy 　 200°C 600
m22759/81-22-5 22 19/34 2.8 0.04 0.043 Silver coated high strength copper alloy 　 200°C 600
m22759/81-22-6 22 19/34 2.8 0.04 0.043 Silver coated high strength copper alloy 　 200°C 600
m22759/81-22-7 22 19/34 2.8 0.04 0.043 Silver coated high strength copper alloy 　 200°C 600
m22759/81-22-8 22 19/34 2.8 0.04 0.043 Silver coated high strength copper alloy 　 200°C 600
m22759/81-22-9 22 19/34 2.8 0.04 0.043 Silver coated high strength copper alloy 　 200°C 600
m22759/81-20-0 20 19/32 4.3 0.048 0.051 Silver coated high strength copper alloy 　 200°C 600
m22759/81-20-1 20 19/32 4.3 0.048 0.051 Silver coated high strength copper alloy 　 200°C 600
m22759/81-20-2 20 19/32 4.3 0.048 0.051 Silver coated high strength copper alloy 　 200°C 600
m22759/81-20-3 20 19/32 4.3 0.048 0.051 Silver coated high strength copper alloy 　 200°C 600
m22759/81-20-4 20 19/32 4.3 0.048 0.051 Silver coated high strength copper alloy 　 200°C 600
m22759/81-20-5 20 19/32 4.3 0.048 0.051 Silver coated high strength copper alloy 　 200°C 600
m22759/81-20-6 20 19/32 4.3 0.048 0.051 Silver coated high strength copper alloy 　 200°C 600
m22759/81-20-7 20 19/32 4.3 0.048 0.051 Silver coated high strength copper alloy 　 200°C 600
m22759/81-20-8 20 19/32 4.3 0.048 0.051 Silver coated high strength copper alloy 　 200°C 600
m22759/81-20-9 20 19/32 4.3 0.048 0.051 Silver coated high strength copper alloy 　 200°C 600

河南三博电子是一家专业MIL-W-22759/81 (M22759/81) | SAE AS22759/81航空线缆的供应商，我公司经营MIL-W-22759/81 (M22759/81) | SAE AS22759/81航空线缆产品多年，质量口碑可靠。如果您有更多的MIL-W-22759/81 (M22759/81) | SAE AS22759/81航空线缆价格问题，欢迎您联系我们厂家
