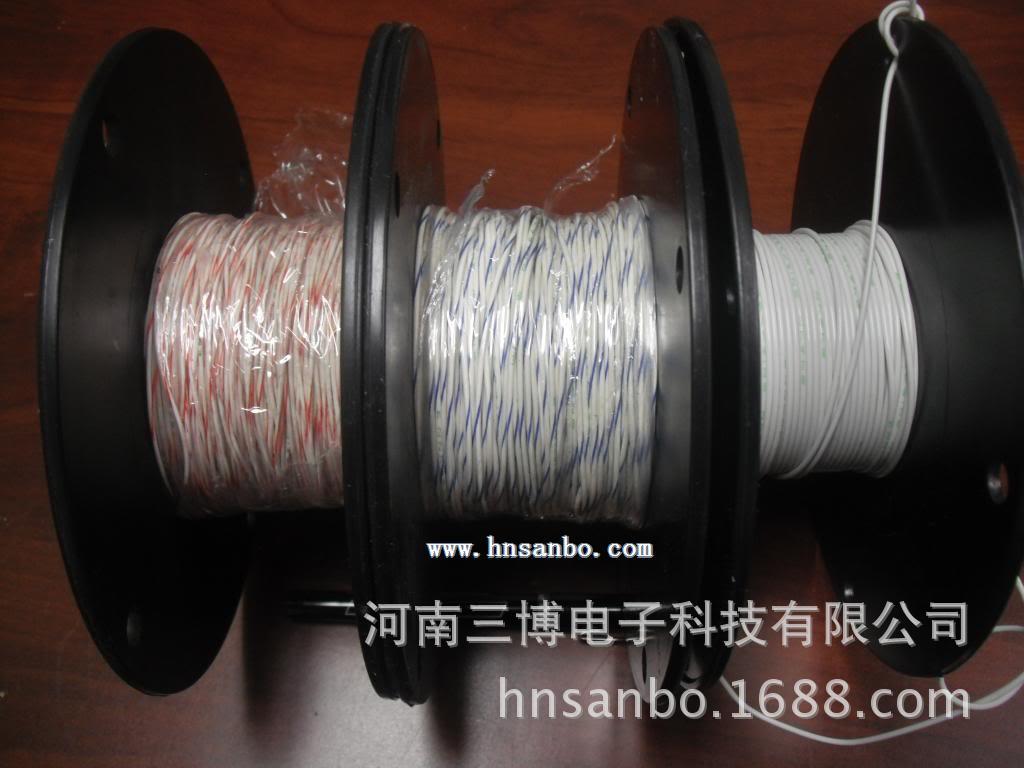

镀锡铜m22759/85航空线缆

作者：admin 来源： 日期：2015/10/23 23:32:25
mil-dtl-22759|SAE as22759/85
mil-w-22759/85线（m22759/85线）
军用规格线
m22759/85线审批：
SAE as22729
mil-dtl-22759
m22759/85线构造：
导体：镀锡铜
绝缘材料：氟聚合物/聚酰亚胺胶带
m22759/85线额定值：
电压：600伏

温度：150°C

Mil-Spec # AWG Stranding Min O.D. (in) MaxO.D. (in) Nom.Lbs/Mft
M22759/85-2-* 2 665/30 0.36 0.38 227
M22759/85-1-* 1 817/30 0.4 0.42 295
M22759/85-01-* 1/0 1045/30 0.442 0.462 346
M22759/85-02-* 2/0 1330/30 0.498 0.528 432
M22759/85-03-* 3/0  1665/30 0.554 0.584 541
M22759/85-04-* 4/0  2109/30  0.615  0.655  679

为编织结构，首选颜色应深绿色的颜色指示5D。


PART NUMBER AWG Conductor Stranding Approx LBS/MFT min O.D. (in) Max O.D. (in) Cond. Material Max. Temp Voltage
M22759/85/2-0 2 665/30 227 0.36 0.38 Tinned Copper 150°C 600
M22759/85/2-1 2 665/30 227 0.36 0.38 Tinned Copper 150°C 600
M22759/85/2-2 2 665/30 227 0.36 0.38 Tinned Copper 150°C 600
M22759/85/2-3 2 665/30 227 0.36 0.38 Tinned Copper 150°C 600
M22759/85/2-4 2 665/30 227 0.36 0.38 Tinned Copper 150°C 600
M22759/85/2-5 2 665/30 227 0.36 0.38 Tinned Copper 150°C 600
M22759/85/2-6 2 665/30 227 0.36 0.38 Tinned Copper 150°C 600
M22759/85/2-7 2 665/30 227 0.36 0.38 Tinned Copper 150°C 600
M22759/85/2-8 2 665/30 227 0.36 0.38 Tinned Copper 150°C 600
M22759/85/2-9 2 665/30 227 0.36 0.38 Tinned Copper 150°C 600
M22759/85-1-0 1 817/30 295 0.4 0.42 Tinned Copper 150°C 600
M22759/85-1-1 1 817/30 295 0.4 0.42 Tinned Copper 150°C 600
M22759/85-1-2 1 817/30 295 0.4 0.42 Tinned Copper 150°C 600
M22759/85-1-3 1 817/30 295 0.4 0.42 Tinned Copper 150°C 600
M22759/85-1-4 1 817/30 295 0.4 0.42 Tinned Copper 150°C 600
M22759/85-1-5 1 817/30 295 0.4 0.42 Tinned Copper 150°C 600
M22759/85-1-6 1 817/30 295 0.4 0.42 Tinned Copper 150°C 600
M22759/85-1-7 1 817/30 295 0.4 0.42 Tinned Copper 150°C 600
M22759/85-1-8 1 817/30 295 0.4 0.42 Tinned Copper 150°C 600
M22759/85-1-9 1 817/30 295 0.4 0.42 Tinned Copper 150°C 600
m22759/85-01-0 1/0 1045/30 351 0.442 0.462 Tinned Copper 150°C 600
m22759/85-01-1 1/0 1045/30 351 0.442 0.462 Tinned Copper 150°C 600
m22759/85-01-2 1/0 1045/30 351 0.442 0.462 Tinned Copper 150°C 600
m22759/85-01-3 1/0 1045/30 351 0.442 0.462 Tinned Copper 150°C 600
m22759/85-01-4 1/0 1045/30 351 0.442 0.462 Tinned Copper 150°C 600
m22759/85-01-5 1/0 1045/30 351 0.442 0.462 Tinned Copper 150°C 600
m22759/85-01-6 1/0 1045/30 351 0.442 0.462 Tinned Copper 150°C 600
m22759/85-01-7 1/0 1045/30 351 0.442 0.462 Tinned Copper 150°C 600
m22759/85-01-8 1/0 1045/30 351 0.442 0.462 Tinned Copper 150°C 600
m22759/85-01-9 1/0 1045/30 351 0.442 0.462 Tinned Copper 150°C 600
m22759/85-02-0 2/0 1330/30 432 0.498 0.528 Tinned Copper 150°C 600
m22759/85-02-1 2/0 1330/30 432 0.498 0.528 Tinned Copper 150°C 600
m22759/85-02-2 2/0 1330/30 432 0.498 0.528 Tinned Copper 150°C 600
m22759/85-02-3 2/0 1330/30 432 0.498 0.528 Tinned Copper 150°C 600
m22759/85-02-4 2/0 1330/30 432 0.498 0.528 Tinned Copper 150°C 600
m22759/85-02-5 2/0 1330/30 432 0.498 0.528 Tinned Copper 150°C 600
m22759/85-02-6 2/0 1330/30 432 0.498 0.528 Tinned Copper 150°C 600
m22759/85-02-7 2/0 1330/30 432 0.498 0.528 Tinned Copper 150°C 600
m22759/85-02-8 2/0 1330/30 432 0.498 0.528 Tinned Copper 150°C 600
m22759/85-02-9 2/0 1330/30 432 0.498 0.528 Tinned Copper 150°C 600
m22759/85-03-0 3/0 1665/30 542 0.554 0.584 Tinned Copper 150°C 600
m22759/85-03-1 3/0 1665/30 542 0.554 0.584 Tinned Copper 150°C 600
m22759/85-03-2 3/0 1665/30 542 0.554 0.584 Tinned Copper 150°C 600
m22759/85-03-3 3/0 1665/30 542 0.554 0.584 Tinned Copper 150°C 600
m22759/85-03-4 3/0 1665/30 542 0.554 0.584 Tinned Copper 150°C 600
m22759/85-03-5 3/0 1665/30 542 0.554 0.584 Tinned Copper 150°C 600
m22759/85-03-6 3/0 1665/30 542 0.554 0.584 Tinned Copper 150°C 600
m22759/85-03-7 3/0 1665/30 542 0.554 0.584 Tinned Copper 150°C 600
m22759/85-03-8 3/0 1665/30 542 0.554 0.584 Tinned Copper 150°C 600
m22759/85-03-9 3/0 1665/30 542 0.554 0.584 Tinned Copper 150°C 600
m22759/85-04-0 4/0 2109/30 689 0.615 0.655 Tinned Copper 150°C 600
m22759/85-04-1 4/0 2109/30 689 0.615 0.655 Tinned Copper 150°C 600
m22759/85-04-2 4/0 2109/30 689 0.615 0.655 Tinned Copper 150°C 600
m22759/85-04-3 4/0 2109/30 689 0.615 0.655 Tinned Copper 150°C 600
m22759/85-04-4 4/0 2109/30 689 0.615 0.655 Tinned Copper 150°C 600
m22759/85-04-5 4/0 2109/30 689 0.615 0.655 Tinned Copper 150°C 600
m22759/85-04-6 4/0 2109/30 689 0.615 0.655 Tinned Copper 150°C 600
m22759/85-04-7 4/0 2109/30 689 0.615 0.655 Tinned Copper 150°C 600
m22759/85-04-8 4/0 2109/30 689 0.615 0.655 Tinned Copper 150°C 600
m22759/85-04-9 4/0 2109/30 689 0.615 0.655 Tinned Copper 150°C 600

河南三博电子是一家专业镀锡铜m22759/85航空线缆的供应商，我公司经营镀锡铜m22759/85航空线缆产品多年，质量口碑可靠。如果您有更多的镀锡铜m22759/85航空线缆价格问题，欢迎您联系我们厂家
