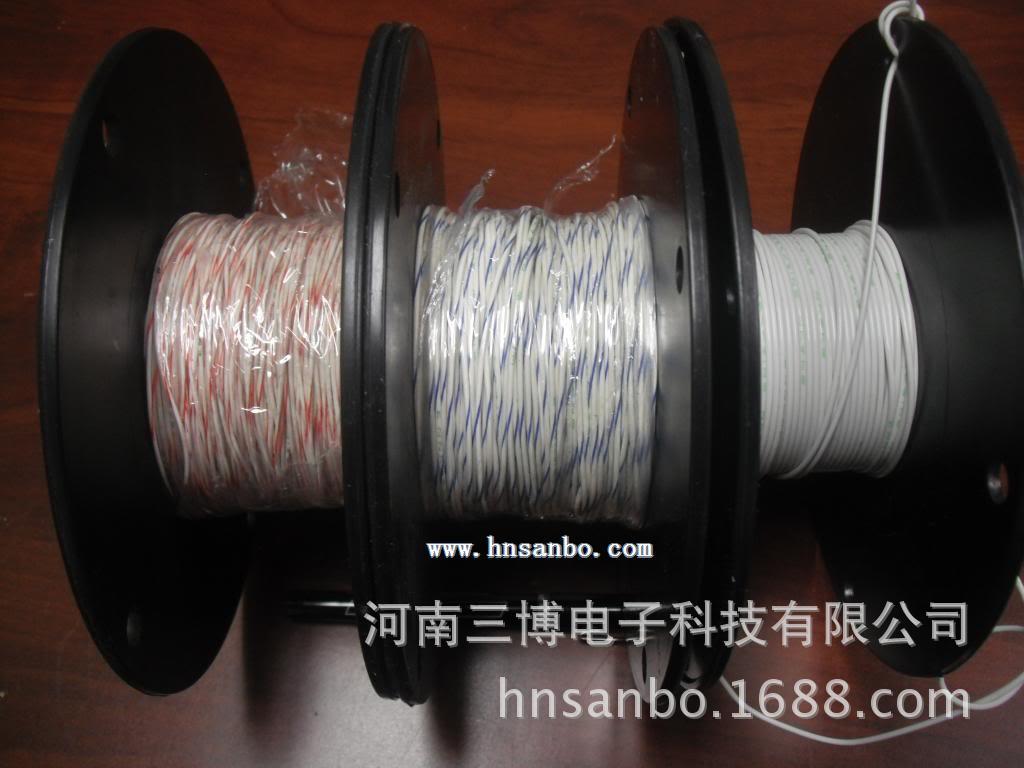

镀锡铜导体M22759/88线

作者：admin 来源： 日期：2015/10/28 9:40:55
航空航天应用需要良好的热稳定性，良好的耐磨性
镀锡铜导体M22759/88线-河南三博电子科技有限公司0371-55365505
特点：
产品描述：
链，小直径，镀锡铜导体（尺寸26至4）
镀锡铜导体（尺寸2至4 / 0）
双层绝缘-聚四氟乙烯/聚酰亚胺/聚四氟乙烯胶带，聚四氟乙烯胶带（尺寸为26至10）
三层绝缘-聚四氟乙烯带，聚四氟乙烯/聚酰亚胺/聚四氟乙烯带，聚四氟乙烯带（尺寸为8至6）
四层绝缘-聚四氟乙烯带，聚四氟乙烯/聚酰亚胺/聚四氟乙烯带，聚四氟乙烯带，聚四氟乙烯带（尺寸4至4 / 0）
按照mil-std-681颜色编码
额定温度：
150°
额定电压：
600伏

Mil-Spec # AWG Stranding Min O.D. (in) MaxO.D. (in) Nom.Lbs/Mft
M22759/88-26-* 26 19/38 0.033 0.037 1.6
M22759/88-24-* 24 19/36 0.037 0.041 2.2
M22759/88-22-* 22 19/34 0.043 0.047 3.1
M22759/88-20-* 20 19/32 0.051 0.055 4.7
M22759/88-18-* 18 19/30 0.064 0.068 7.4
M22759/88-16-* 16 19/29 0.068 0.073 8.8
M22759/88-14-* 14 19/27 0.081 0.086 13.2
M22759/88-12-* 12 37/28 0.1 0.105 20.2
M22759/88-10-* 10 37/26 0.122 0.127 32.2
M22759/88-8-* 8  133/29 0.18 0.188 58
M22759/88-6-* 6  133/27 0.219 0.229 90
M22759/88-4-* 4  133/25 0.276 0.288 143
M22759/88-2-* 2  665/30 0.344 0.364  221.0
M22759/88-1-* 1  817/30 0.388 0.408 288
M22759/88-01-* 1/0  1045/30 0.42 0.452 339
M22759/88-02-* 2/0  1330/30  0.475 0.505 424
M22759/88-03-* 3/0  1665/30 0.53 0.56 531
M22759/88-04-* 4/0  2109/30 0.59 0.63 668


上表中的星号应由mil-std-681按照颜色代码指示器取代。
0 -黑色，1 -棕色，2 -红色，3 -橙，4 -黄，5 -绿色，6 - 7 -紫色，8 -灰色，9 -白色
例如：20号，白m22759 / 11-20-9；白色和橙色的条纹—

m22759 / 11-20-93。


PART NUMBER AWG Conductor Stranding Approx LBS/MFT min O.D. (in) Max O.D. (in) Cond. Material Max. Temp
M22759/88/26-0 26 19/38 1.55 0.033 0.037 Tinned Copper 150°C
M22759/88/26-1 26 19/38 1.55 0.033 0.037 Tinned Copper 150°C
M22759/88/26-2 26 19/38 1.55 0.033 0.037 Tinned Copper 150°C
M22759/88/26-3 26 19/38 1.55 0.033 0.037 Tinned Copper 150°C
M22759/88/26-4 26 19/38 1.55 0.033 0.037 Tinned Copper 150°C
M22759/88/26-5 26 19/38 1.55 0.033 0.037 Tinned Copper 150°C
M22759/88/26-6 26 19/38 1.55 0.033 0.037 Tinned Copper 150°C
M22759/88/26-7 26 19/38 1.55 0.033 0.037 Tinned Copper 150°C
M22759/88/26-8 26 19/38 1.55 0.033 0.037 Tinned Copper 150°C
M22759/88/26-9 26 19/38 1.55 0.033 0.037 Tinned Copper 150°C
M22759/88-24-0 24 19/36 2.15 0.038 0.042 Tinned Copper 150°C
M22759/88-24-1 24 19/36 2.15 0.038 0.042 Tinned Copper 150°C
M22759/88-24-2 24 19/36 2.15 0.038 0.042 Tinned Copper 150°C
M22759/88-24-3 24 19/36 2.15 0.038 0.042 Tinned Copper 150°C
M22759/88-24-4 24 19/36 2.15 0.038 0.042 Tinned Copper 150°C
M22759/88-24-5 24 19/36 2.15 0.038 0.042 Tinned Copper 150°C
M22759/88-24-6 24 19/36 2.15 0.038 0.042 Tinned Copper 150°C
M22759/88-24-7 24 19/36 2.15 0.038 0.042 Tinned Copper 150°C
M22759/88-24-8 24 19/36 2.15 0.038 0.042 Tinned Copper 150°C
M22759/88-24-9 24 19/36 2.15 0.038 0.042 Tinned Copper 150°C
m22759/88-22-0 22 19/34 3 0.043 0.047 Tinned Copper 150°C
m22759/88-22-1 22 19/34 3 0.043 0.047 Tinned Copper 150°C
m22759/88-22-2 22 19/34 3 0.043 0.047 Tinned Copper 150°C
m22759/88-22-3 22 19/34 3 0.043 0.047 Tinned Copper 150°C
m22759/88-22-4 22 19/34 3 0.043 0.047 Tinned Copper 150°C
m22759/88-22-5 22 19/34 3 0.043 0.047 Tinned Copper 150°C
m22759/88-22-6 22 19/34 3 0.043 0.047 Tinned Copper 150°C
m22759/88-22-7 22 19/34 3 0.043 0.047 Tinned Copper 150°C
m22759/88-22-8 22 19/34 3 0.043 0.047 Tinned Copper 150°C
m22759/88-22-9 22 19/34 3 0.043 0.047 Tinned Copper 150°C
m22759/88-20-0 20 19/32 4.55 0.051 0.055 Tinned Copper 150°C
m22759/88-20-1 20 19/32 4.55 0.051 0.055 Tinned Copper 150°C
m22759/88-20-2 20 19/32 4.55 0.051 0.055 Tinned Copper 150°C
m22759/88-20-3 20 19/32 4.55 0.051 0.055 Tinned Copper 150°C
m22759/88-20-4 20 19/32 4.55 0.051 0.055 Tinned Copper 150°C
m22759/88-20-5 20 19/32 4.55 0.051 0.055 Tinned Copper 150°C
m22759/88-20-6 20 19/32 4.55 0.051 0.055 Tinned Copper 150°C
m22759/88-20-7 20 19/32 4.55 0.051 0.055 Tinned Copper 150°C
m22759/88-20-8 20 19/32 4.55 0.051 0.055 Tinned Copper 150°C
m22759/88-20-9 20 19/32 4.55 0.051 0.055 Tinned Copper 150°C
M22759/88-18-0 18 19/30 7.4 0.061 0.065 Tinned Copper 150°C
M22759/88-18-1 18 19/30 7.4 0.061 0.065 Tinned Copper 150°C
M22759/88-18-2 18 19/30 7.4 0.061 0.065 Tinned Copper 150°C
M22759/88-18-3 18 19/30 7.4 0.061 0.065 Tinned Copper 150°C
M22759/88-18-4 18 19/30 7.4 0.061 0.065 Tinned Copper 150°C
M22759/88-18-5 18 19/30 7.4 0.061 0.065 Tinned Copper 150°C
M22759/88-18-6 18 19/30 7.4 0.061 0.065 Tinned Copper 150°C
M22759/88-18-7 18 19/30 7.4 0.061 0.065 Tinned Copper 150°C
M22759/88-18-8 18 19/30 7.4 0.061 0.065 Tinned Copper 150°C
M22759/88-18-9 18 19/30 7.4 0.061 0.065 Tinned Copper 150°C
M22759/88-16-0 16 19/29 8.8 0.068 0.073 Tinned Copper 150°C
M22759/88-16-1 16 19/29 8.8 0.068 0.073 Tinned Copper 150°C
M22759/88-16-2 16 19/29 8.8 0.068 0.073 Tinned Copper 150°C
M22759/88-16-3 16 19/29 8.8 0.068 0.073 Tinned Copper 150°C
M22759/88-16-4 16 19/29 8.8 0.068 0.073 Tinned Copper 150°C
M22759/88-16-5 16 19/29 8.8 0.068 0.073 Tinned Copper 150°C
M22759/88-16-6 16 19/29 8.8 0.068 0.073 Tinned Copper 150°C
M22759/88-16-7 16 19/29 8.8 0.068 0.073 Tinned Copper 150°C
M22759/88-16-8 16 19/29 8.8 0.068 0.073 Tinned Copper 150°C
M22759/88-16-9 16 19/29 8.8 0.068 0.073 Tinned Copper 150°C
M22759/88-14-0 14 19/27 13.2 0.081 0.086 Tinned Copper 150°C
M22759/88-14-1 14 19/27 13.2 0.081 0.086 Tinned Copper 150°C
M22759/88-14-2 14 19/27 13.2 0.081 0.086 Tinned Copper 150°C
M22759/88-14-3 14 19/27 13.2 0.081 0.086 Tinned Copper 150°C
M22759/88-14-4 14 19/27 13.2 0.081 0.086 Tinned Copper 150°C
M22759/88-14-5 14 19/27 13.2 0.081 0.086 Tinned Copper 150°C
M22759/88-14-6 14 19/27 13.2 0.081 0.086 Tinned Copper 150°C
M22759/88-14-7 14 19/27 13.2 0.081 0.086 Tinned Copper 150°C
M22759/88-14-8 14 19/27 13.2 0.081 0.086 Tinned Copper 150°C
M22759/88-14-9 14 19/27 13.2 0.081 0.086 Tinned Copper 150°C
M22759/88-12-0 12 37/28 20.2 0.1 0.105 Tinned Copper 150°C
M22759/88-12-1 12 37/28 20.2 0.1 0.105 Tinned Copper 150°C
M22759/88-12-2 12 37/28 20.2 0.1 0.105 Tinned Copper 150°C
M22759/88-12-3 12 37/28 20.2 0.1 0.105 Tinned Copper 150°C
M22759/88-12-4 12 37/28 20.2 0.1 0.105 Tinned Copper 150°C
M22759/88-12-5 12 37/28 20.2 0.1 0.105 Tinned Copper 150°C
M22759/88-12-6 12 37/28 20.2 0.1 0.105 Tinned Copper 150°C
M22759/88-12-7 12 37/28 20.2 0.1 0.105 Tinned Copper 150°C
M22759/88-12-8 12 37/28 20.2 0.1 0.105 Tinned Copper 150°C
M22759/88-12-9 12 37/28 20.2 0.1 0.105 Tinned Copper 150°C
m22759/88-10-0 10 37/26 32.2 0.122 0.127 Tinned Copper 150°C
m22759/88-10-1 10 37/26 32.2 0.122 0.127 Tinned Copper 150°C
m22759/88-10-2 10 37/26 32.2 0.122 0.127 Tinned Copper 150°C
m22759/88-10-3 10 37/26 32.2 0.122 0.127 Tinned Copper 150°C
m22759/88-10-4 10 37/26 32.2 0.122 0.127 Tinned Copper 150°C
m22759/88-10-5 10 37/26 32.2 0.122 0.127 Tinned Copper 150°C
m22759/88-10-6 10 37/26 32.2 0.122 0.127 Tinned Copper 150°C
m22759/88-10-7 10 37/26 32.2 0.122 0.127 Tinned Copper 150°C
m22759/88-10-8 10 37/26 32.2 0.122 0.127 Tinned Copper 150°C
m22759/88-10-9 10 37/26 32.2 0.122 0.127 Tinned Copper 150°C
m22759/88-8-0 8 133/29 58 0.18 0.188 Tinned Copper 150°C
m22759/88-8-1 8 133/29 58 0.18 0.188 Tinned Copper 150°C
m22759/88-8-2 8 133/29 58 0.18 0.188 Tinned Copper 150°C
m22759/88-8-3 8 133/29 58 0.18 0.188 Tinned Copper 150°C
m22759/88-8-4 8 133/29 58 0.18 0.188 Tinned Copper 150°C
m22759/88-8-5 8 133/29 58 0.18 0.188 Tinned Copper 150°C
m22759/88-8-6 8 133/29 58 0.18 0.188 Tinned Copper 150°C
m22759/88-8-7 8 133/29 58 0.18 0.188 Tinned Copper 150°C
m22759/88-8-8 8 133/29 58 0.18 0.188 Tinned Copper 150°C
m22759/88-8-9 8 133/29 58 0.18 0.188 Tinned Copper 150°C
m22759/88-6-0 6 133/27 90 0.219 0.229 Tinned Copper 150°C
m22759/88-6-1 6 133/27 90 0.219 0.229 Tinned Copper 150°C
m22759/88-6-2 6 133/27 90 0.219 0.229 Tinned Copper 150°C
m22759/88-6-3 6 133/27 90 0.219 0.229 Tinned Copper 150°C
m22759/88-6-4 6 133/27 90 0.219 0.229 Tinned Copper 150°C
m22759/88-6-5 6 133/27 90 0.219 0.229 Tinned Copper 150°C
m22759/88-6-6 6 133/27 90 0.219 0.229 Tinned Copper 150°C
m22759/88-6-7 6 133/27 90 0.219 0.229 Tinned Copper 150°C
m22759/88-6-8 6 133/27 90 0.219 0.229 Tinned Copper 150°C
m22759/88-6-9 6 133/27 90 0.219 0.229 Tinned Copper 150°C
m22759/88-4-0 4 133/25 143 0.276 0.288 Tinned Copper 150°C
m22759/88-4-1 4 133/25 143 0.276 0.288 Tinned Copper 150°C
m22759/88-4-2 4 133/25 143 0.276 0.288 Tinned Copper 150°C
m22759/88-4-3 4 133/25 143 0.276 0.288 Tinned Copper 150°C
m22759/88-4-4 4 133/25 143 0.276 0.288 Tinned Copper 150°C
m22759/88-4-5 4 133/25 143 0.276 0.288 Tinned Copper 150°C
m22759/88-4-6 4 133/25 143 0.276 0.288 Tinned Copper 150°C
m22759/88-4-7 4 133/25 143 0.276 0.288 Tinned Copper 150°C
m22759/88-4-8 4 133/25 143 0.276 0.288 Tinned Copper 150°C
m22759/88-4-9 4 133/25 143 0.276 0.288 Tinned Copper 150°C
M22759/88-2-0 2 665/30 221 0.344 0.364 Tinned Copper 150°C
M22759/88-2-1 2 665/30 221 0.344 0.364 Tinned Copper 150°C
M22759/88-2-2 2 665/30 221 0.344 0.364 Tinned Copper 150°C
M22759/88-2-3 2 665/30 221 0.344 0.364 Tinned Copper 150°C
M22759/88-2-4 2 665/30 221 0.344 0.364 Tinned Copper 150°C
M22759/88-2-5 2 665/30 221 0.344 0.364 Tinned Copper 150°C
M22759/88-2-6 2 665/30 221 0.344 0.364 Tinned Copper 150°C
M22759/88-2-7 2 665/30 221 0.344 0.364 Tinned Copper 150°C
M22759/88-2-8 2 665/30 221 0.344 0.364 Tinned Copper 150°C
M22759/88-2-9 2 665/30 221 0.344 0.364 Tinned Copper 150°C
M22759/88-1-0 1 817/30 288 0.388 0.408 Tinned Copper 150°C
M22759/88-1-1 1 817/30 288 0.388 0.408 Tinned Copper 150°C
M22759/88-1-2 1 817/30 288 0.388 0.408 Tinned Copper 150°C
M22759/88-1-3 1 817/30 288 0.388 0.408 Tinned Copper 150°C
M22759/88-1-4 1 817/30 288 0.388 0.408 Tinned Copper 150°C
M22759/88-1-5 1 817/30 288 0.388 0.408 Tinned Copper 150°C
M22759/88-1-6 1 817/30 288 0.388 0.408 Tinned Copper 150°C
M22759/88-1-7 1 817/30 288 0.388 0.408 Tinned Copper 150°C
M22759/88-1-8 1 817/30 288 0.388 0.408 Tinned Copper 150°C
M22759/88-1-9 1 817/30 288 0.388 0.408 Tinned Copper 150°C
M22759/88-01-0 1/0 1045/30 339 0.42 0.45 Tinned Copper 150°C
M22759/88-01-1 1/0 1045/30 339 0.42 0.45 Tinned Copper 150°C
M22759/88-01-2 1/0 1045/30 339 0.42 0.45 Tinned Copper 150°C
M22759/88-01-3 1/0 1045/30 339 0.42 0.45 Tinned Copper 150°C
M22759/88-01-4 1/0 1045/30 339 0.42 0.45 Tinned Copper 150°C
M22759/88-01-5 1/0 1045/30 339 0.42 0.45 Tinned Copper 150°C
M22759/88-01-6 1/0 1045/30 339 0.42 0.45 Tinned Copper 150°C
M22759/88-01-7 1/0 1045/30 339 0.42 0.45 Tinned Copper 150°C
M22759/88-01-8 1/0 1045/30 339 0.42 0.45 Tinned Copper 150°C
M22759/88-01-9 1/0 1045/30 339 0.42 0.45 Tinned Copper 150°C
M22759/88-02-0 2/0 1330/30 424 0.475 0.505 Tinned Copper 150°C
M22759/88-02-1 2/0 1330/30 424 0.475 0.505 Tinned Copper 150°C
M22759/88-02-2 2/0 1330/30 424 0.475 0.505 Tinned Copper 150°C
M22759/88-02-3 2/0 1330/30 424 0.475 0.505 Tinned Copper 150°C
M22759/88-02-4 2/0 1330/30 424 0.475 0.505 Tinned Copper 150°C
M22759/88-02-5 2/0 1330/30 424 0.475 0.505 Tinned Copper 150°C
M22759/88-02-6 2/0 1330/30 424 0.475 0.505 Tinned Copper 150°C
M22759/88-02-7 2/0 1330/30 424 0.475 0.505 Tinned Copper 150°C
M22759/88-02-8 2/0 1330/30 424 0.475 0.505 Tinned Copper 150°C
M22759/88-02-9 2/0 1330/30 424 0.475 0.505 Tinned Copper 150°C
M22759/88-03-0 3/0 1665/30 531 0.53 0.56 Tinned Copper 150°C
M22759/88-03-1 3/0 1665/30 531 0.53 0.56 Tinned Copper 150°C
M22759/88-03-2 3/0 1665/30 531 0.53 0.56 Tinned Copper 150°C
M22759/88-03-3 3/0 1665/30 531 0.53 0.56 Tinned Copper 150°C
M22759/88-03-4 3/0 1665/30 531 0.53 0.56 Tinned Copper 150°C
M22759/88-03-5 3/0 1665/30 531 0.53 0.56 Tinned Copper 150°C
M22759/88-03-6 3/0 1665/30 531 0.53 0.56 Tinned Copper 150°C
M22759/88-03-7 3/0 1665/30 531 0.53 0.56 Tinned Copper 150°C
M22759/88-03-8 3/0 1665/30 531 0.53 0.56 Tinned Copper 150°C
M22759/88-03-9 3/0 1665/30 531 0.53 0.56 Tinned Copper 150°C
M22759/88-04-0 4/0 2109/30 668 0.59 0.63 Tinned Copper 150°C
M22759/88-04-1 4/0 2109/30 668 0.59 0.63 Tinned Copper 150°C
M22759/88-04-2 4/0 2109/30 668 0.59 0.63 Tinned Copper 150°C
M22759/88-04-3 4/0 2109/30 668 0.59 0.63 Tinned Copper 150°C
M22759/88-04-4 4/0 2109/30 668 0.59 0.63 Tinned Copper 150°C
M22759/88-04-5 4/0 2109/30 668 0.59 0.63 Tinned Copper 150°C
M22759/88-04-6 4/0 2109/30 668 0.59 0.63 Tinned Copper 150°C
M22759/88-04-7 4/0 2109/30 668 0.59 0.63 Tinned Copper 150°C
M22759/88-04-8 4/0 2109/30 668 0.59 0.63 Tinned Copper 150°C
M22759/88-04-9 4/0 2109/30 668 0.59 0.63 Tinned Copper 150°C

河南三博电子是一家专业镀锡铜导体M22759/88线的供应商，我公司经营镀锡铜导体M22759/88线产品多年，质量口碑可靠。如果您有更多的镀锡铜导体M22759/88线价格问题，欢迎您联系我们厂家

  • 上一篇：镀银铜m22759/86航空线缆
  • 下一篇：m22759/89航空线缆镀银高强度铜合金导线

    • 其他信息

    Coryright 河南三博电子科技有限公司 版权所有

    公司地址：河南省郑州市中原区颖河路76号颖河港湾11栋2单元1004 地址：www.hnsanbo.com

    电话：0371-55365505 传真：0371-86257077 邮箱：hnsanbo@163.com 网站关键词:连接器-航空线缆-航空插头、航空线缆、军品连接器、军用操作工具,军用操作工具,集成电路,电源开关生产
