m22759/20-24-9航空线缆

作者：admin 来源： 日期：2016/1/27 20:27:01

22759/20  (M22759/20 Wire) | SAE AS22759/20



MIL-W-22759/20 | SAE AS22759/20
MIL-W-22759/20 Wire (M22759/20 Wire)
SAE AS22729 Wire
MIL-Spec Wire（军用规格电线）

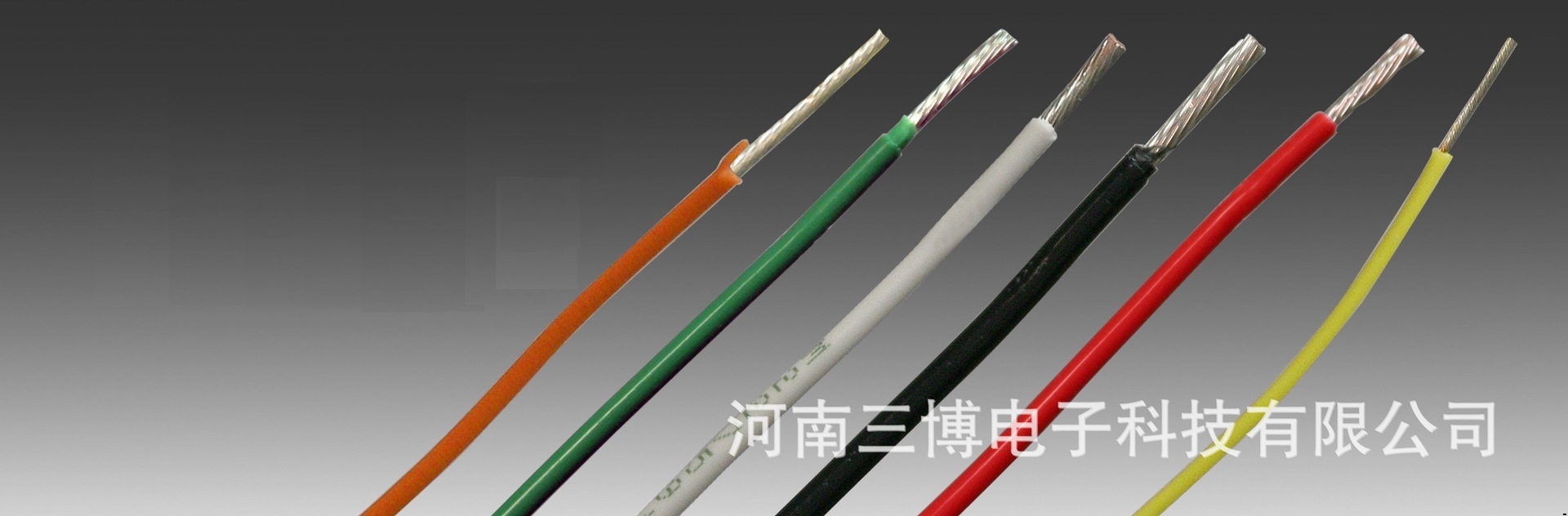

M22759/20 Wire Description:（m22759/20线描述：）

Conductor: Silver coated high strength copper alloy（导体：镀银高强度铜合金）
Insulation: Extruded PTFE（绝缘：挤压聚四氟乙烯）
M22759/20 Wire Characteristics:（m22759/20线 特性：）

Voltage Rating: 1000 Volts（额定电压：1000伏）
Temperature Rating: 200°C（温度等级：200°）
M22759/20 Wire Applications:（m22759 / 20线的应用：）

Mil-W-22759/20 wire is suitable for use in aircraft engines and other military, government, or civilian applications where abrasion is present.（mil-w-22759/20 线适用于飞机发动机和其他需要具备耐磨损性能的军事、政府、或民用项目领域）

M27500 Component TK
Mil-Spec M22759/20
SAE Spec AS22759/20
Cond. Material Silver-Coated Copper Alloy (High Strength)
Insul. Material Polytetrafluoroethylene (PTFE)
Max. Temp 200°C

Voltage 1000


PART NUMBER AWG Conductor Stranding Approx LBS/MFT min O.D. (in) Max O.D. (in) Cond. Material Min. Temp Max. Temp Voltage
订货代码 线规 导体绞合 约磅/MFT 最小外径 最大外径 导体材质 最小温度 最大温度 电压伏
m22759/20-28-0 28 7/36 1.91 0.041 0.045 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-28-1 28 7/36 1.91 0.041 0.045 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-28-2 28 7/36 1.91 0.041 0.045 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-28-3 28 7/36 1.91 0.041 0.045 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-28-4 28 7/36 1.91 0.041 0.045 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-28-5 28 7/36 1.91 0.041 0.045 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-28-6 28 7/36 1.91 0.041 0.045 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-28-7 28 7/36 1.91 0.041 0.045 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-28-8 28 7/36 1.91 0.041 0.045 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-28-9 28 7/36 1.91 0.041 0.045 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-26-0 26 19/38 2.57 0.046 0.05 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-26-1 26 19/38 2.57 0.046 0.05 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-26-2 26 19/38 2.57 0.046 0.05 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-26-3 26 19/38 2.57 0.046 0.05 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-26-4 26 19/38 2.57 0.046 0.05 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-26-5 26 19/38 2.57 0.046 0.05 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-26-6 26 19/38 2.57 0.046 0.05 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-26-7 26 19/38 2.57 0.046 0.05 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-26-8 26 19/38 2.57 0.046 0.05 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-26-9 26 19/38 2.57 0.046 0.05 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-24-0 24 19/36 3.35 0.051 0.055 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-24-1 24 19/36 3.35 0.051 0.055 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-24-2 24 19/36 3.35 0.051 0.055 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-24-3 24 19/36 3.35 0.051 0.055 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-24-4 24 19/36 3.35 0.051 0.055 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-24-5 24 19/36 3.35 0.051 0.055 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-24-6 24 19/36 3.35 0.051 0.055 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-24-7 24 19/36 3.35 0.051 0.055 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-24-8 24 19/36 3.35 0.051 0.055 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-24-9 24 19/36 3.35 0.051 0.055 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-22-0 22 19/34 4.59 0.058 0.062 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-22-1 22 19/34 4.59 0.058 0.062 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-22-2 22 19/34 4.59 0.058 0.062 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-22-3 22 19/34 4.59 0.058 0.062 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-22-4 22 19/34 4.59 0.058 0.062 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-22-5 22 19/34 4.59 0.058 0.062 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-22-6 22 19/34 4.59 0.058 0.062 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-22-7 22 19/34 4.59 0.058 0.062 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-22-8 22 19/34 4.59 0.058 0.062 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-22-9 22 19/34 4.59 0.058 0.062 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-20-0 20 19/32 6.41 0.066 0.07 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-20-1 20 19/32 6.41 0.066 0.07 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-20-2 20 19/32 6.41 0.066 0.07 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-20-3 20 19/32 6.41 0.066 0.07 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-20-4 20 19/32 6.41 0.066 0.07 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-20-5 20 19/32 6.41 0.066 0.07 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-20-6 20 19/32 6.41 0.066 0.07 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-20-7 20 19/32 6.41 0.066 0.07 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-20-8 20 19/32 6.41 0.066 0.07 Silver coated high strength copper alloy -55°C 200°C 1000
m22759/20-20-9 20 19/32 6.41 0.066 0.07 Silver coated high strength copper alloy -55°C 200°C 1000
The asterisks in the above table shall be replaced by color code designators in accordance with MIL-STD-681.
0 - Black, 1 - Brown, 2 - Red, 3 - Orange, 4 - Yellow, 5 - Green, 6 - Blue, 7 - Violet, 8 - Gray, 9 - White
Example: Size 20, white - M22759/20-20-9; white with orange stripe -M22759/20-20-93.

河南三博电子是一家专业m22759/20-24-9航空线缆的供应商，我公司经营m22759/20-24-9航空线缆产品多年，质量口碑可靠。如果您有更多的m22759/20-24-9航空线缆价格问题，欢迎您联系我们厂家
