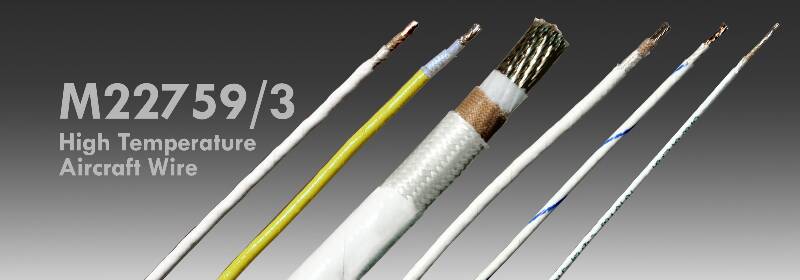

镀镍铜线M22759/3系列航空线缆

作者：admin 来源： 日期：2015/9/22 9:41:15

mil-w-22759|SAEas22759/3/3

mil-w-22759/3线（m22759/3线）

SAEAS 22759/3

军用规格线缆

600V，260°

mil-w-22759/3线（m22759/3线）描述

导体：镀镍铜

绝缘材料：聚四氟乙烯，丙烯，和玻璃

mil-w-22759/3线（m22759/3线）的特点

额定电压：600伏

温度等级：260°

mil-w-22759/3线（m22759/3线）常见的应用：

mil-w-22759/3军用规格的线缆可用于飞机发动机和其他军事，政府，或民用设备

镀镍铜线M22759/3系列航空线缆-三博电子科技公司，系列库存及线缆技术数据信息



PN AWG ConductorStranding Approx LBS/MFT Min O.D. (in) Max O.D. (in) Cond. Material Max. Temp Voltage Insul. Material Jacket Material Shield Shield Material
M22759/3-22-0 22 19/34 5.9 0.08 0.088 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-22-1 22 19/34 5.9 0.08 0.088 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-22-2 22 19/34 5.9 0.08 0.088 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-22-3 22 19/34 5.9 0.08 0.088 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-22-4 22 19/34 5.9 0.08 0.088 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-22-5 22 19/34 5.9 0.08 0.088 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-22-6 22 19/34 5.9 0.08 0.088 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-22-7 22 19/34 5.9 0.08 0.088 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-22-8 22 19/34 5.9 0.08 0.088 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-22-9 22 19/34 5.9 0.08 0.088 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-20-0 20 19/32 7.9 0.09 0.098 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-20-1 20 19/32 7.9 0.09 0.098 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-20-2 20 19/32 7.9 0.09 0.098 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-20-3 20 19/32 7.9 0.09 0.098 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-20-4 20 19/32 7.9 0.09 0.098 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-20-5 20 19/32 7.9 0.09 0.098 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-20-6 20 19/32 7.9 0.09 0.098 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-20-7 20 19/32 7.9 0.09 0.098 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-20-8 20 19/32 7.9 0.09 0.098 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-20-9 20 19/32 7.9 0.09 0.098 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-18-0 18 19/30 11 0.1 0.11 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-18-1 18 19/30 11 0.1 0.11 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-18-2 18 19/30 11 0.1 0.11 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-18-3 18 19/30 11 0.1 0.11 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-18-4 18 19/30 11 0.1 0.11 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-18-5 18 19/30 11 0.1 0.11 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-18-6 18 19/30 11 0.1 0.11 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-18-7 18 19/30 11 0.1 0.11 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-18-8 18 19/30 11 0.1 0.11 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-18-9 18 19/30 11 0.1 0.11 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-16-0 16 19/29 13.6 0.115 0.125 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-16-1 16 19/29 13.6 0.115 0.125 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-16-2 16 19/29 13.6 0.115 0.125 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-16-3 16 19/29 13.6 0.115 0.125 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-16-4 16 19/29 13.6 0.115 0.125 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-16-5 16 19/29 13.6 0.115 0.125 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-16-6 16 19/29 13.6 0.115 0.125 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-16-7 16 19/29 13.6 0.115 0.125 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-16-8 16 19/29 13.6 0.115 0.125 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-16-9 16 19/29 13.6 0.115 0.125 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-14-0 14 19/27 18.5 0.133 0.143 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-14-1 14 19/27 18.5 0.133 0.143 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-14-2 14 19/27 18.5 0.133 0.143 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-14-3 14 19/27 18.5 0.133 0.143 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-14-4 14 19/27 18.5 0.133 0.143 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-14-5 14 19/27 18.5 0.133 0.143 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-14-6 14 19/27 18.5 0.133 0.143 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-14-7 14 19/27 18.5 0.133 0.143 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-14-8 14 19/27 18.5 0.133 0.143 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-14-9 14 19/27 18.5 0.133 0.143 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-12-0 12 37/28 26.6 0.152 0.162 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-12-1 12 37/28 26.6 0.152 0.162 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-12-2 12 37/28 26.6 0.152 0.162 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-12-3 12 37/28 26.6 0.152 0.162 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-12-4 12 37/28 26.6 0.152 0.162 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-12-5 12 37/28 26.6 0.152 0.162 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-12-6 12 37/28 26.6 0.152 0.162 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-12-7 12 37/28 26.6 0.152 0.162 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-12-8 12 37/28 26.6 0.152 0.162 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-12-9 12 37/28 26.6 0.152 0.162 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-10-0 10 37/16 41.5 0.174 0.188 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-10-1 10 37/16 41.5 0.174 0.188 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-10-2 10 37/16 41.5 0.174 0.188 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-10-3 10 37/16 41.5 0.174 0.188 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-10-4 10 37/16 41.5 0.174 0.188 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-10-5 10 37/16 41.5 0.174 0.188 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-10-6 10 37/16 41.5 0.174 0.188 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-10-7 10 37/16 41.5 0.174 0.188 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-10-8 10 37/16 41.5 0.174 0.188 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-10-9 10 37/16 41.5 0.174 0.188 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-8-0 8 133/29 77.4 0.241 0.255 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-8-1 8 133/29 77.4 0.241 0.255 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-8-2 8 133/29 77.4 0.241 0.255 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-8-3 8 133/29 77.4 0.241 0.255 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-8-4 8 133/29 77.4 0.241 0.255 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-8-5 8 133/29 77.4 0.241 0.255 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-8-6 8 133/29 77.4 0.241 0.255 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-8-7 8 133/29 77.4 0.241 0.255 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-8-8 8 133/29 77.4 0.241 0.255 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-8-9 8 133/29 77.4 0.241 0.255 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-6-0 6 133/27 115 0.283 0.303 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-6-1 6 133/27 115 0.283 0.303 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-6-2 6 133/27 115 0.283 0.303 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-6-3 6 133/27 115 0.283 0.303 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-6-4 6 133/27 115 0.283 0.303 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-6-5 6 133/27 115 0.283 0.303 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-6-6 6 133/27 115 0.283 0.303 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-6-7 6 133/27 115 0.283 0.303 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-6-8 6 133/27 115 0.283 0.303 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-6-9 6 133/27 115 0.283 0.303 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-4-0 4 133/25 184 0.4 0.43 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-4-1 4 133/25 184 0.4 0.43 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-4-2 4 133/25 184 0.4 0.43 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-4-3 4 133/25 184 0.4 0.43 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-4-4 4 133/25 184 0.4 0.43 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-4-5 4 133/25 184 0.4 0.43 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-4-6 4 133/25 184 0.4 0.43 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-4-7 4 133/25 184 0.4 0.43 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-4-8 4 133/25 184 0.4 0.43 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-4-9 4 133/25 184 0.4 0.43 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-2-0 2 665/30 281 0.405 0.435 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-2-1 2 665/30 281 0.405 0.435 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-2-2 2 665/30 281 0.405 0.435 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-2-3 2 665/30 281 0.405 0.435 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-2-4 2 665/30 281 0.405 0.435 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-2-5 2 665/30 281 0.405 0.435 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-2-6 2 665/30 281 0.405 0.435 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-2-7 2 665/30 281 0.405 0.435 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-2-8 2 665/30 281 0.405 0.435 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-2-9 2 665/30 281 0.405 0.435 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-1-0 1 817/30 358 0.455 0.485 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-1-1 1 817/30 358 0.455 0.485 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-1-2 1 817/30 358 0.455 0.485 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-1-3 1 817/30 358 0.455 0.485 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-1-4 1 817/30 358 0.455 0.485 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-1-5 1 817/30 358 0.455 0.485 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-1-6 1 817/30 358 0.455 0.485 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-1-7 1 817/30 358 0.455 0.485 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-1-8 1 817/30 358 0.455 0.485 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-1-9 1 817/30 358 0.455 0.485 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-01-0 1/0 1045/30 436 0.495 0.535 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-01-1 1/0 1045/30 436 0.495 0.535 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-01-2 1/0 1045/30 436 0.495 0.535 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-01-3 1/0 1045/30 436 0.495 0.535 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-01-4 1/0 1045/30 436 0.495 0.535 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-01-5 1/0 1045/30 436 0.495 0.535 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-01-6 1/0 1045/30 436 0.495 0.535 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-01-7 1/0 1045/30 436 0.495 0.535 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-01-8 1/0 1045/30 436 0.495 0.535 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-01-9 1/0 1045/30 436 0.495 0.535 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-02-0 2/0 1330/30 554 0.555 0.595 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-02-1 2/0 1330/30 554 0.555 0.595 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-02-2 2/0 1330/30 554 0.555 0.595 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-02-3 2/0 1330/30 554 0.555 0.595 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-02-4 2/0 1330/30 554 0.555 0.595 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-02-5 2/0 1330/30 554 0.555 0.595 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-02-6 2/0 1330/30 554 0.555 0.595 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-02-7 2/0 1330/30 554 0.555 0.595 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-02-8 2/0 1330/30 554 0.555 0.595 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass
M22759/3-02-9 2/0 1330/30 554 0.555 0.595 Nickel-Plated Copper 260°C 600 FEP PTFE Impregnated Glass Braid (PTFE) Coated Fiberglass

河南三博电子是一家专业镀镍铜线M22759/3系列航空线缆的供应商，我公司经营镀镍铜线M22759/3系列航空线缆产品多年，质量口碑可靠。如果您有更多的镀镍铜线M22759/3系列航空线缆价格问题，欢迎您联系我们厂家
