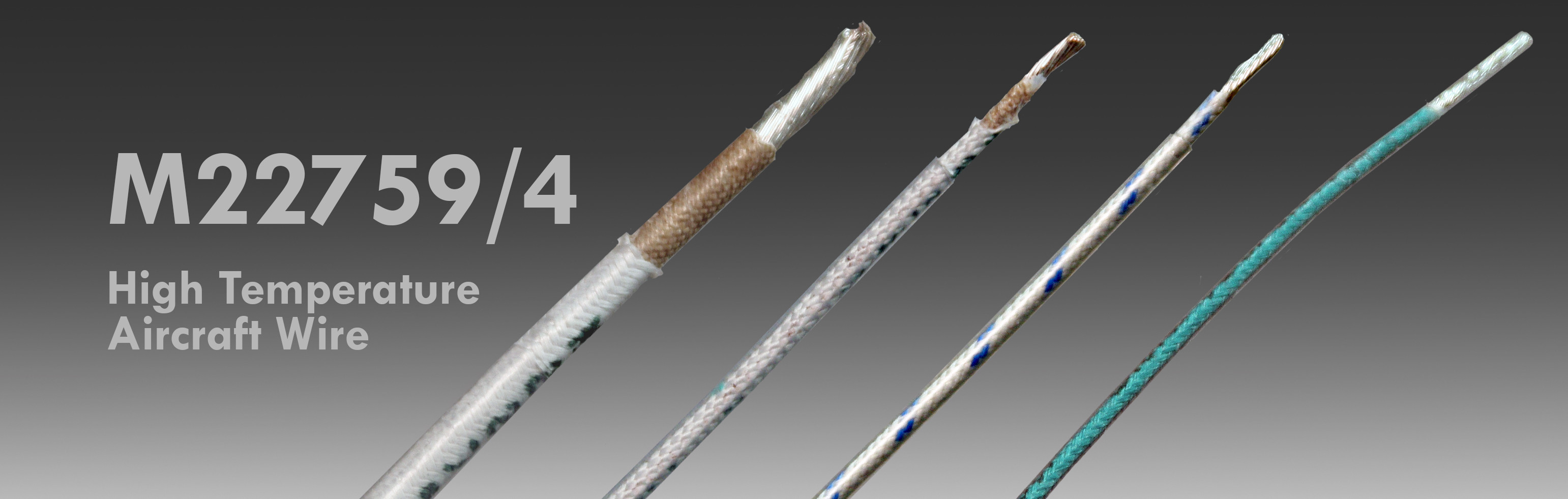

镀银铜导体-高温航空线缆M22759/4系列MIL-W-22759/4 | SAE AS22759/4

作者：admin 来源： 日期：2015/9/23 4:05:01
Military and Aerospace Cables - AS22759/M22759-/4
军规线缆航空线缆AS22759/4系列M22759/4系列

mil-w-22759 /4线缆（m22759/4线缆）
SAE as22759/4
军用规格钢丝
600V，200°C
mil-w-22759 /4线缆（m22759/4线缆）描述：
导体：镀银铜
绝缘材料：聚四氟乙烯，丙烯，和玻璃
mil-w-22759 /4线缆（m22759/4线缆）的特性：
额定电压：600伏
温度等级：200°
mil-w-22759 /4线缆（m22759/4线缆）常见的应用：
耐用m22759军品规格的线缆可用于飞机发动机和其他军事，政府，或民用领域。
PART NUMBER AWG Conductor Stranding Approx LBS/MFT Min O.D. (in) Max O.D. (in) Cond. Material Max. Temp Voltage
M22759/4-22-0 22 19/34 5.9 0.071 0.077 Silver-Coated Copper 200°C 600
M22759/4-22-1 22 19/34 5.9 0.071 0.077 Silver-Coated Copper 200°C 600
M22759/4-22-2 22 19/34 5.9 0.071 0.077 Silver-Coated Copper 200°C 600
M22759/4-22-3 22 19/34 5.9 0.071 0.077 Silver-Coated Copper 200°C 600
M22759/4-22-4 22 19/34 5.9 0.071 0.077 Silver-Coated Copper 200°C 600
M22759/4-22-5 22 19/34 5.9 0.071 0.077 Silver-Coated Copper 200°C 600
M22759/4-22-6 22 19/34 5.9 0.071 0.077 Silver-Coated Copper 200°C 600
M22759/4-22-7 22 19/34 5.9 0.071 0.077 Silver-Coated Copper 200°C 600
M22759/4-22-8 22 19/34 5.9 0.071 0.077 Silver-Coated Copper 200°C 600
M22759/4-22-9 22 19/34 5.9 0.071 0.077 Silver-Coated Copper 200°C 600
M22759/4-20-0 20 19/32 7.9 0.079 0.085 Silver-Coated Copper 200°C 600
M22759/4-20-1 20 19/32 7.9 0.079 0.085 Silver-Coated Copper 200°C 600
M22759/4-20-2 20 19/32 7.9 0.079 0.085 Silver-Coated Copper 200°C 600
M22759/4-20-3 20 19/32 7.9 0.079 0.085 Silver-Coated Copper 200°C 600
M22759/4-20-4 20 19/32 7.9 0.079 0.085 Silver-Coated Copper 200°C 600
M22759/4-20-5 20 19/32 7.9 0.079 0.085 Silver-Coated Copper 200°C 600
M22759/4-20-6 20 19/32 7.9 0.079 0.085 Silver-Coated Copper 200°C 600
M22759/4-20-7 20 19/32 7.9 0.079 0.085 Silver-Coated Copper 200°C 600
M22759/4-20-8 20 19/32 7.9 0.079 0.085 Silver-Coated Copper 200°C 600
M22759/4-20-9 20 19/32 7.9 0.079 0.085 Silver-Coated Copper 200°C 600
M22759/4-18-0 18 19/30 11 0.092 0.098 Silver-Coated Copper 200°C 600
M22759/4-18-1 18 19/30 11 0.092 0.098 Silver-Coated Copper 200°C 600
M22759/4-18-2 18 19/30 11 0.092 0.098 Silver-Coated Copper 200°C 600
M22759/4-18-3 18 19/30 11 0.092 0.098 Silver-Coated Copper 200°C 600
M22759/4-18-4 18 19/30 11 0.092 0.098 Silver-Coated Copper 200°C 600
M22759/4-18-5 18 19/30 11 0.092 0.098 Silver-Coated Copper 200°C 600
M22759/4-18-6 18 19/30 11 0.092 0.098 Silver-Coated Copper 200°C 600
M22759/4-18-7 18 19/30 11 0.092 0.098 Silver-Coated Copper 200°C 600
M22759/4-18-8 18 19/30 11 0.092 0.098 Silver-Coated Copper 200°C 600
M22759/4-18-9 18 19/30 11 0.092 0.098 Silver-Coated Copper 200°C 600
M22759/4-16-0 16 19/29 13.6 0.99 0.998 Silver-Coated Copper 200°C 600
M22759/4-16-1 16 19/29 13.6 0.99 0.998 Silver-Coated Copper 200°C 600
M22759/4-16-2 16 19/29 13.6 0.99 0.998 Silver-Coated Copper 200°C 600
M22759/4-16-3 16 19/29 13.6 0.99 0.998 Silver-Coated Copper 200°C 600
M22759/4-16-4 16 19/29 13.6 0.99 0.998 Silver-Coated Copper 200°C 600
M22759/4-16-5 16 19/29 13.6 0.99 0.998 Silver-Coated Copper 200°C 600
M22759/4-16-6 16 19/29 13.6 0.99 0.998 Silver-Coated Copper 200°C 600
M22759/4-16-7 16 19/29 13.6 0.99 0.998 Silver-Coated Copper 200°C 600
M22759/4-16-8 16 19/29 13.6 0.99 0.998 Silver-Coated Copper 200°C 600
M22759/4-16-9 16 19/29 13.6 0.99 0.998 Silver-Coated Copper 200°C 600
M22759/4-14-0 14 19/27 18.5 0.112 0.12 Silver-Coated Copper 200°C 600
M22759/4-14-1 14 19/27 18.5 0.112 0.12 Silver-Coated Copper 200°C 600
M22759/4-14-2 14 19/27 18.5 0.112 0.12 Silver-Coated Copper 200°C 600
M22759/4-14-3 14 19/27 18.5 0.112 0.12 Silver-Coated Copper 200°C 600
M22759/4-14-4 14 19/27 18.5 0.112 0.12 Silver-Coated Copper 200°C 600
M22759/4-14-5 14 19/27 18.5 0.112 0.12 Silver-Coated Copper 200°C 600
M22759/4-14-6 14 19/27 18.5 0.112 0.12 Silver-Coated Copper 200°C 600
M22759/4-14-7 14 19/27 18.5 0.112 0.12 Silver-Coated Copper 200°C 600
M22759/4-14-8 14 19/27 18.5 0.112 0.12 Silver-Coated Copper 200°C 600
M22759/4-14-9 14 19/27 18.5 0.112 0.12 Silver-Coated Copper 200°C 600
M22759/4-12-0 12 37/28 26.6 0.129 0.137 Silver-Coated Copper 200°C 600
M22759/4-12-1 12 37/28 26.6 0.129 0.137 Silver-Coated Copper 200°C 600
M22759/4-12-2 12 37/28 26.6 0.129 0.137 Silver-Coated Copper 200°C 600
M22759/4-12-3 12 37/28 26.6 0.129 0.137 Silver-Coated Copper 200°C 600
M22759/4-12-4 12 37/28 26.6 0.129 0.137 Silver-Coated Copper 200°C 600
M22759/4-12-5 12 37/28 26.6 0.129 0.137 Silver-Coated Copper 200°C 600
M22759/4-12-6 12 37/28 26.6 0.129 0.137 Silver-Coated Copper 200°C 600
M22759/4-12-7 12 37/28 26.6 0.129 0.137 Silver-Coated Copper 200°C 600
M22759/4-12-8 12 37/28 26.6 0.129 0.137 Silver-Coated Copper 200°C 600
M22759/4-12-9 12 37/28 26.6 0.129 0.137 Silver-Coated Copper 200°C 600
M22759/4-10-0 10 37/16 41.5 0.159 0.171 Silver-Coated Copper 200°C 600
M22759/4-10-1 10 37/16 41.5 0.159 0.171 Silver-Coated Copper 200°C 600
M22759/4-10-2 10 37/16 41.5 0.159 0.171 Silver-Coated Copper 200°C 600
M22759/4-10-3 10 37/16 41.5 0.159 0.171 Silver-Coated Copper 200°C 600
M22759/4-10-4 10 37/16 41.5 0.159 0.171 Silver-Coated Copper 200°C 600
M22759/4-10-5 10 37/16 41.5 0.159 0.171 Silver-Coated Copper 200°C 600
M22759/4-10-6 10 37/16 41.5 0.159 0.171 Silver-Coated Copper 200°C 600
M22759/4-10-7 10 37/16 41.5 0.159 0.171 Silver-Coated Copper 200°C 600
M22759/4-10-8 10 37/16 41.5 0.159 0.171 Silver-Coated Copper 200°C 600
M22759/4-10-9 10 37/16 41.5 0.159 0.171 Silver-Coated Copper 200°C 600
M22759/4-8-0 8 133/29 77.4 0.228 0.242 Silver-Coated Copper 200°C 600
M22759/4-8-1 8 133/29 77.4 0.228 0.242 Silver-Coated Copper 200°C 600
M22759/4-8-2 8 133/29 77.4 0.228 0.242 Silver-Coated Copper 200°C 600
M22759/4-8-3 8 133/29 77.4 0.228 0.242 Silver-Coated Copper 200°C 600
M22759/4-8-4 8 133/29 77.4 0.228 0.242 Silver-Coated Copper 200°C 600
M22759/4-8-5 8 133/29 77.4 0.228 0.242 Silver-Coated Copper 200°C 600
M22759/4-8-6 8 133/29 77.4 0.228 0.242 Silver-Coated Copper 200°C 600
M22759/4-8-7 8 133/29 77.4 0.228 0.242 Silver-Coated Copper 200°C 600
M22759/4-8-8 8 133/29 77.4 0.228 0.242 Silver-Coated Copper 200°C 600
M22759/4-8-9 8 133/29 77.4 0.228 0.242 Silver-Coated Copper 200°C 600
M22759/4-6-0 6 133/27 115 0.272 0.292 Silver-Coated Copper 200°C 600
M22759/4-6-1 6 133/27 115 0.272 0.292 Silver-Coated Copper 200°C 600
M22759/4-6-2 6 133/27 115 0.272 0.292 Silver-Coated Copper 200°C 600
M22759/4-6-3 6 133/27 115 0.272 0.292 Silver-Coated Copper 200°C 600
M22759/4-6-4 6 133/27 115 0.272 0.292 Silver-Coated Copper 200°C 600
M22759/4-6-5 6 133/27 115 0.272 0.292 Silver-Coated Copper 200°C 600
M22759/4-6-6 6 133/27 115 0.272 0.292 Silver-Coated Copper 200°C 600
M22759/4-6-7 6 133/27 115 0.272 0.292 Silver-Coated Copper 200°C 600
M22759/4-6-8 6 133/27 115 0.272 0.292 Silver-Coated Copper 200°C 600
M22759/4-6-9 6 133/27 115 0.272 0.292 Silver-Coated Copper 200°C 600
M22759/4-4-0 4 133/25 184 0.336 0.366 Silver-Coated Copper 200°C 600
M22759/4-4-1 4 133/25 184 0.336 0.366 Silver-Coated Copper 200°C 600
M22759/4-4-2 4 133/25 184 0.336 0.366 Silver-Coated Copper 200°C 600
M22759/4-4-3 4 133/25 184 0.336 0.366 Silver-Coated Copper 200°C 600
M22759/4-4-4 4 133/25 184 0.336 0.366 Silver-Coated Copper 200°C 600
M22759/4-4-5 4 133/25 184 0.336 0.366 Silver-Coated Copper 200°C 600
M22759/4-4-6 4 133/25 184 0.336 0.366 Silver-Coated Copper 200°C 600
M22759/4-4-7 4 133/25 184 0.336 0.366 Silver-Coated Copper 200°C 600
M22759/4-4-8 4 133/25 184 0.336 0.366 Silver-Coated Copper 200°C 600
M22759/4-4-9 4 133/25 184 0.336 0.366 Silver-Coated Copper 200°C 600
M22759/4-2-0 2 665/30 281 0.415 0.445 Silver-Coated Copper 200°C 600
M22759/4-2-1 2 665/30 281 0.415 0.445 Silver-Coated Copper 200°C 600
M22759/4-2-2 2 665/30 281 0.415 0.445 Silver-Coated Copper 200°C 600
M22759/4-2-3 2 665/30 281 0.415 0.445 Silver-Coated Copper 200°C 600
M22759/4-2-4 2 665/30 281 0.415 0.445 Silver-Coated Copper 200°C 600
M22759/4-2-5 2 665/30 281 0.415 0.445 Silver-Coated Copper 200°C 600
M22759/4-2-6 2 665/30 281 0.415 0.445 Silver-Coated Copper 200°C 600
M22759/4-2-7 2 665/30 281 0.415 0.445 Silver-Coated Copper 200°C 600
M22759/4-2-8 2 665/30 281 0.415 0.445 Silver-Coated Copper 200°C 600
M22759/4-2-9 2 665/30 281 0.415 0.445 Silver-Coated Copper 200°C 600
M22759/4-1-0 1 817/30 358 0.465 0.495 Silver-Coated Copper 200°C 600
M22759/4-1-1 1 817/30 358 0.465 0.495 Silver-Coated Copper 200°C 600
M22759/4-1-2 1 817/30 358 0.465 0.495 Silver-Coated Copper 200°C 600
M22759/4-1-3 1 817/30 358 0.465 0.495 Silver-Coated Copper 200°C 600
M22759/4-1-4 1 817/30 358 0.465 0.495 Silver-Coated Copper 200°C 600
M22759/4-1-5 1 817/30 358 0.465 0.495 Silver-Coated Copper 200°C 600
M22759/4-1-6 1 817/30 358 0.465 0.495 Silver-Coated Copper 200°C 600
M22759/4-1-7 1 817/30 358 0.465 0.495 Silver-Coated Copper 200°C 600
M22759/4-1-8 1 817/30 358 0.465 0.495 Silver-Coated Copper 200°C 600
M22759/4-1-9 1 817/30 358 0.465 0.495 Silver-Coated Copper 200°C 600
M22759/4-01-0 1/0 1045/30 436 0.5 0.55 Silver-Coated Copper 200°C 600
M22759/4-01-1 1/0 1045/30 436 0.5 0.55 Silver-Coated Copper 200°C 600
M22759/4-01-2 1/0 1045/30 436 0.5 0.55 Silver-Coated Copper 200°C 600
M22759/4-01-3 1/0 1045/30 436 0.5 0.55 Silver-Coated Copper 200°C 600
M22759/4-01-4 1/0 1045/30 436 0.5 0.55 Silver-Coated Copper 200°C 600
M22759/4-01-5 1/0 1045/30 436 0.5 0.55 Silver-Coated Copper 200°C 600
M22759/4-01-6 1/0 1045/30 436 0.5 0.55 Silver-Coated Copper 200°C 600
M22759/4-01-7 1/0 1045/30 436 0.5 0.55 Silver-Coated Copper 200°C 600
M22759/4-01-8 1/0 1045/30 436 0.5 0.55 Silver-Coated Copper 200°C 600
M22759/4-01-9 1/0 1045/30 436 0.5 0.55 Silver-Coated Copper 200°C 600
M22759/4-02-0 2/0 1330/30 554 0.56 0.61 Silver-Coated Copper 200°C 600
M22759/4-02-1 2/0 1330/30 554 0.56 0.61 Silver-Coated Copper 200°C 600
M22759/4-02-2 2/0 1330/30 554 0.56 0.61 Silver-Coated Copper 200°C 600
M22759/4-02-3 2/0 1330/30 554 0.56 0.61 Silver-Coated Copper 200°C 600
M22759/4-02-4 2/0 1330/30 554 0.56 0.61 Silver-Coated Copper 200°C 600
M22759/4-02-5 2/0 1330/30 554 0.56 0.61 Silver-Coated Copper 200°C 600
M22759/4-02-6 2/0 1330/30 554 0.56 0.61 Silver-Coated Copper 200°C 600
M22759/4-02-7 2/0 1330/30 554 0.56 0.61 Silver-Coated Copper 200°C 600
M22759/4-02-8 2/0 1330/30 554 0.56 0.61 Silver-Coated Copper 200°C 600
M22759/4-02-9 2/0 1330/30 554 0.56 0.61 Silver-Coated Copper 200°C 600

河南三博电子是一家专业镀银铜导体-高温航空线缆M22759/4系列MIL-W-22759/4 | SAE AS22759/4的供应商，我公司经营镀银铜导体-高温航空线缆M22759/4系列MIL-W-22759/4 | SAE AS22759/4产品多年，质量口碑可靠。如果您有更多的镀银铜导体-高温航空线缆M22759/4系列MIL-W-22759/4 | SAE AS22759/4价格问题，欢迎您联系我们厂家
