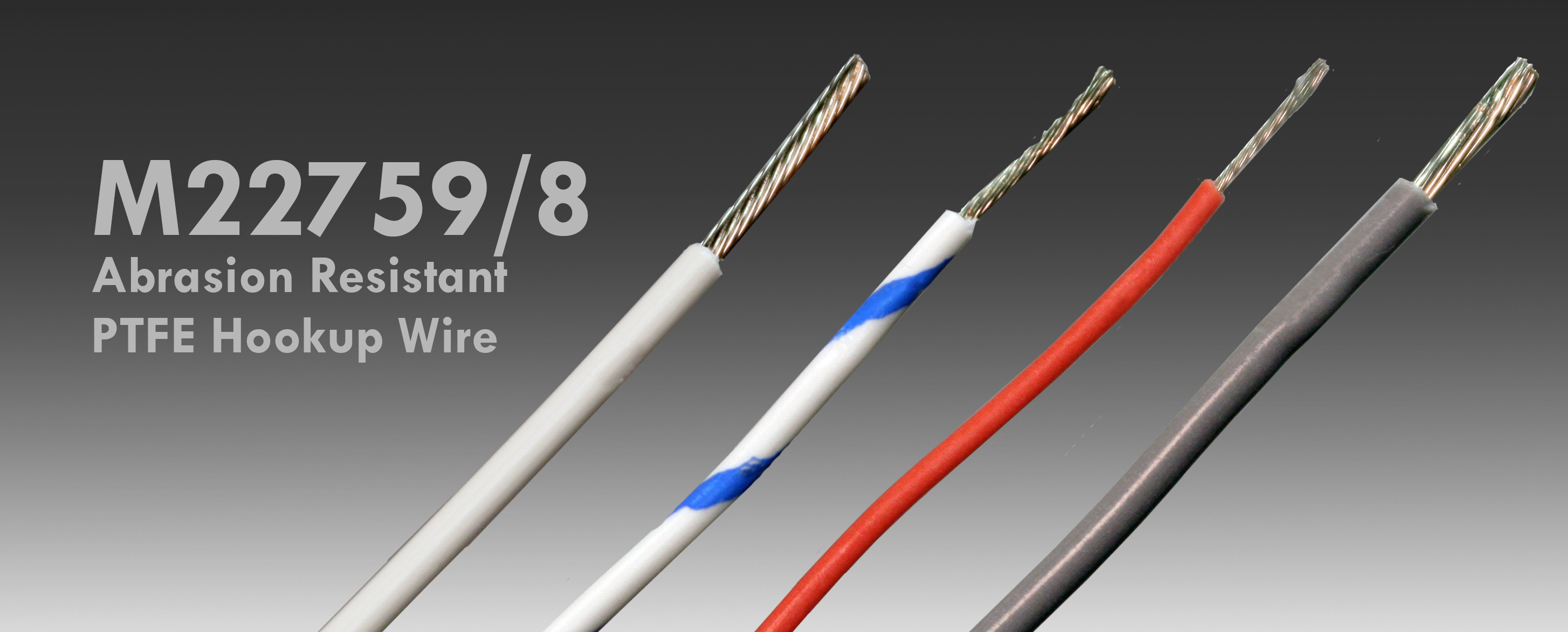

渡镍铜导线M22759/8-*-*系列耐磨航空线

作者：admin 来源： 日期：2015/9/24 9:05:25

mil-w-22759|SAE as22759/8线缆
mil-w-22759/8线缆（m22759/8线缆）
SAE as22759/8
军用规格航空线缆
600V，200°C
mil-w-22759/8线（m22759/8线）特性描述：
导体：渡镍铜导体
绝缘：挤压聚四氟乙烯
mil-w-22759/8线（m22759/8线）的特点：
额定电压：600伏
温度等级：-55°C至260°C
mil-w-22759/8线（m22759/8线）常见的应用：
mil-w-22759/8线可以用在许多应用，例如在航空发动机
PART NUMBER AWG Conductor Stranding Approx LBS/MFT Nom. Dia. of Cond. min O.D. (in) Max O.D. (in) Cond. Material Min. Temp Max. Temp Voltage
M22759/8-24-0 24 19/36 4.3 0.024 0.06 0.064 Nickel Plated Copper -55°C 260°C 600
M22759/8-24-1 24 19/36 4.3 0.024 0.06 0.064 Nickel Plated Copper -55°C 260°C 600
M22759/8-24-2 24 19/36 4.3 0.024 0.06 0.064 Nickel Plated Copper -55°C 260°C 600
M22759/8-24-3 24 19/36 4.3 0.024 0.06 0.064 Nickel Plated Copper -55°C 260°C 600
M22759/8-24-4 24 19/36 4.3 0.024 0.06 0.064 Nickel Plated Copper -55°C 260°C 600
M22759/8-24-5 24 19/36 4.3 0.024 0.06 0.064 Nickel Plated Copper -55°C 260°C 600
M22759/8-24-6 24 19/36 4.3 0.024 0.06 0.064 Nickel Plated Copper -55°C 260°C 600
M22759/8-24-7 24 19/36 4.3 0.024 0.06 0.064 Nickel Plated Copper -55°C 260°C 600
M22759/8-24-8 24 19/36 4.3 0.024 0.06 0.064 Nickel Plated Copper -55°C 260°C 600
M22759/8-24-9 24 19/36 4.3 0.024 0.06 0.064 Nickel Plated Copper -55°C 260°C 600
M22759/8-22-0 22 19/34 6 0.03 0.071 0.075 Nickel Plated Copper -55°C 260°C 600
M22759/8-22-1 22 19/34 6 0.03 0.071 0.075 Nickel Plated Copper -55°C 260°C 600
M22759/8-22-2 22 19/34 6 0.03 0.071 0.075 Nickel Plated Copper -55°C 260°C 600
M22759/8-22-3 22 19/34 6 0.03 0.071 0.075 Nickel Plated Copper -55°C 260°C 600
M22759/8-22-4 22 19/34 6 0.03 0.071 0.075 Nickel Plated Copper -55°C 260°C 600
M22759/8-22-5 22 19/34 6 0.03 0.071 0.075 Nickel Plated Copper -55°C 260°C 600
M22759/8-22-6 22 19/34 6 0.03 0.071 0.075 Nickel Plated Copper -55°C 260°C 600
M22759/8-22-7 22 19/34 6 0.03 0.071 0.075 Nickel Plated Copper -55°C 260°C 600
M22759/8-22-8 22 19/34 6 0.03 0.071 0.075 Nickel Plated Copper -55°C 260°C 600
M22759/8-22-9 22 19/34 6 0.03 0.071 0.075 Nickel Plated Copper -55°C 260°C 600
M22759/8-20-0 20 19/32 8.1 0.038 0.08 0.084 Nickel Plated Copper -55°C 260°C 600
M22759/8-20-1 20 19/32 8.1 0.038 0.08 0.084 Nickel Plated Copper -55°C 260°C 600
M22759/8-20-2 20 19/32 8.1 0.038 0.08 0.084 Nickel Plated Copper -55°C 260°C 600
M22759/8-20-3 20 19/32 8.1 0.038 0.08 0.084 Nickel Plated Copper -55°C 260°C 600
M22759/8-20-4 20 19/32 8.1 0.038 0.08 0.084 Nickel Plated Copper -55°C 260°C 600
M22759/8-20-5 20 19/32 8.1 0.038 0.08 0.084 Nickel Plated Copper -55°C 260°C 600
M22759/8-20-6 20 19/32 8.1 0.038 0.08 0.084 Nickel Plated Copper -55°C 260°C 600
M22759/8-20-7 20 19/32 8.1 0.038 0.08 0.084 Nickel Plated Copper -55°C 260°C 600
M22759/8-20-8 20 19/32 8.1 0.038 0.08 0.084 Nickel Plated Copper -55°C 260°C 600
M22759/8-20-9 20 19/32 8.1 0.038 0.08 0.084 Nickel Plated Copper -55°C 260°C 600
M22759/8-18-0 18 19/30 11 0.047 0.09 0.094 Nickel Plated Copper -55°C 260°C 600
M22759/8-18-1 18 19/30 11 0.047 0.09 0.094 Nickel Plated Copper -55°C 260°C 600
M22759/8-18-2 18 19/30 11 0.047 0.09 0.094 Nickel Plated Copper -55°C 260°C 600
M22759/8-18-3 18 19/30 11 0.047 0.09 0.094 Nickel Plated Copper -55°C 260°C 600
M22759/8-18-4 18 19/30 11 0.047 0.09 0.094 Nickel Plated Copper -55°C 260°C 600
M22759/8-18-5 18 19/30 11 0.047 0.09 0.094 Nickel Plated Copper -55°C 260°C 600
M22759/8-18-6 18 19/30 11 0.047 0.09 0.094 Nickel Plated Copper -55°C 260°C 600
M22759/8-18-7 18 19/30 11 0.047 0.09 0.094 Nickel Plated Copper -55°C 260°C 600
M22759/8-18-8 18 19/30 11 0.047 0.09 0.094 Nickel Plated Copper -55°C 260°C 600
M22759/8-18-9 18 19/30 11 0.047 0.09 0.094 Nickel Plated Copper -55°C 260°C 600
M22759/8-16-0 16 19/29 13.8 0.053 0.099 0.105 Nickel Plated Copper -55°C 260°C 600
M22759/8-16-1 16 19/29 13.8 0.053 0.099 0.105 Nickel Plated Copper -55°C 260°C 600
M22759/8-16-2 16 19/29 13.8 0.053 0.099 0.105 Nickel Plated Copper -55°C 260°C 600
M22759/8-16-3 16 19/29 13.8 0.053 0.099 0.105 Nickel Plated Copper -55°C 260°C 600
M22759/8-16-4 16 19/29 13.8 0.053 0.099 0.105 Nickel Plated Copper -55°C 260°C 600
M22759/8-16-5 16 19/29 13.8 0.053 0.099 0.105 Nickel Plated Copper -55°C 260°C 600
M22759/8-16-6 16 19/29 13.8 0.053 0.099 0.105 Nickel Plated Copper -55°C 260°C 600
M22759/8-16-7 16 19/29 13.8 0.053 0.099 0.105 Nickel Plated Copper -55°C 260°C 600
M22759/8-16-8 16 19/29 13.8 0.053 0.099 0.105 Nickel Plated Copper -55°C 260°C 600
M22759/8-16-9 16 19/29 13.8 0.053 0.099 0.105 Nickel Plated Copper -55°C 260°C 600
M22759/8-14-0 14 19/27 18.6 0.067 0.112 0.118 Nickel Plated Copper -55°C 260°C 600
M22759/8-14-1 14 19/27 18.6 0.067 0.112 0.118 Nickel Plated Copper -55°C 260°C 600
M22759/8-14-2 14 19/27 18.6 0.067 0.112 0.118 Nickel Plated Copper -55°C 260°C 600
M22759/8-14-3 14 19/27 18.6 0.067 0.112 0.118 Nickel Plated Copper -55°C 260°C 600
M22759/8-14-4 14 19/27 18.6 0.067 0.112 0.118 Nickel Plated Copper -55°C 260°C 600
M22759/8-14-5 14 19/27 18.6 0.067 0.112 0.118 Nickel Plated Copper -55°C 260°C 600
M22759/8-14-6 14 19/27 18.6 0.067 0.112 0.118 Nickel Plated Copper -55°C 260°C 600
M22759/8-14-7 14 19/27 18.6 0.067 0.112 0.118 Nickel Plated Copper -55°C 260°C 600
M22759/8-14-8 14 19/27 18.6 0.067 0.112 0.118 Nickel Plated Copper -55°C 260°C 600
M22759/8-14-9 14 19/27 18.6 0.067 0.112 0.118 Nickel Plated Copper -55°C 260°C 600
M22759/8-12-0 12 19/25 28.5 0.086 0.131 0.137 Nickel Plated Copper -55°C 260°C 600
M22759/8-12-1 12 19/25 28.5 0.086 0.131 0.137 Nickel Plated Copper -55°C 260°C 600
M22759/8-12-2 12 19/25 28.5 0.086 0.131 0.137 Nickel Plated Copper -55°C 260°C 600
M22759/8-12-3 12 19/25 28.5 0.086 0.131 0.137 Nickel Plated Copper -55°C 260°C 600
M22759/8-12-4 12 19/25 28.5 0.086 0.131 0.137 Nickel Plated Copper -55°C 260°C 600
M22759/8-12-5 12 19/25 28.5 0.086 0.131 0.137 Nickel Plated Copper -55°C 260°C 600
M22759/8-12-6 12 19/25 28.5 0.086 0.131 0.137 Nickel Plated Copper -55°C 260°C 600
M22759/8-12-7 12 19/25 28.5 0.086 0.131 0.137 Nickel Plated Copper -55°C 260°C 600
M22759/8-12-8 12 19/25 28.5 0.086 0.131 0.137 Nickel Plated Copper -55°C 260°C 600
M22759/8-12-9 12 19/25 28.5 0.086 0.131 0.137 Nickel Plated Copper -55°C 260°C 600
M22759/8-10-0 10 37/26 41.8 0.109 0.154 0.162 Nickel Plated Copper -55°C 260°C 600
M22759/8-10-1 10 37/26 41.8 0.109 0.154 0.162 Nickel Plated Copper -55°C 260°C 600
M22759/8-10-2 10 37/26 41.8 0.109 0.154 0.162 Nickel Plated Copper -55°C 260°C 600
M22759/8-10-3 10 37/26 41.8 0.109 0.154 0.162 Nickel Plated Copper -55°C 260°C 600
M22759/8-10-4 10 37/26 41.8 0.109 0.154 0.162 Nickel Plated Copper -55°C 260°C 600
M22759/8-10-5 10 37/26 41.8 0.109 0.154 0.162 Nickel Plated Copper -55°C 260°C 600
M22759/8-10-6 10 37/26 41.8 0.109 0.154 0.162 Nickel Plated Copper -55°C 260°C 600
M22759/8-10-7 10 37/26 41.8 0.109 0.154 0.162 Nickel Plated Copper -55°C 260°C 600
M22759/8-10-8 10 37/26 41.8 0.109 0.154 0.162 Nickel Plated Copper -55°C 260°C 600
M22759/8-10-9 10 37/26 41.8 0.109 0.154 0.162 Nickel Plated Copper -55°C 260°C 600
M22759/8-8-0 8 133/29 73.1 0.163 0.215 0.225 Nickel Plated Copper -55°C 260°C 600
M22759/8-8-1 8 133/29 73.1 0.163 0.215 0.225 Nickel Plated Copper -55°C 260°C 600
M22759/8-8-2 8 133/29 73.1 0.163 0.215 0.225 Nickel Plated Copper -55°C 260°C 600
M22759/8-8-3 8 133/29 73.1 0.163 0.215 0.225 Nickel Plated Copper -55°C 260°C 600
M22759/8-8-4 8 133/29 73.1 0.163 0.215 0.225 Nickel Plated Copper -55°C 260°C 600
M22759/8-8-5 8 133/29 73.1 0.163 0.215 0.225 Nickel Plated Copper -55°C 260°C 600
M22759/8-8-6 8 133/29 73.1 0.163 0.215 0.225 Nickel Plated Copper -55°C 260°C 600
M22759/8-8-7 8 133/29 73.1 0.163 0.215 0.225 Nickel Plated Copper -55°C 260°C 600
M22759/8-8-8 8 133/29 73.1 0.163 0.215 0.225 Nickel Plated Copper -55°C 260°C 600
M22759/8-8-9 8 133/29 73.1 0.163 0.215 0.225 Nickel Plated Copper -55°C 260 600

河南三博电子是一家专业渡镍铜导线M22759/8-*-*系列耐磨航空线的供应商，我公司经营渡镍铜导线M22759/8-*-*系列耐磨航空线产品多年，质量口碑可靠。如果您有更多的渡镍铜导线M22759/8-*-*系列耐磨航空线价格问题，欢迎您联系我们厂家
