镀银铜线M22759/7航空线缆-三博电子0371-55365505

作者：admin 来源： 日期：2015/9/24 11:06:12

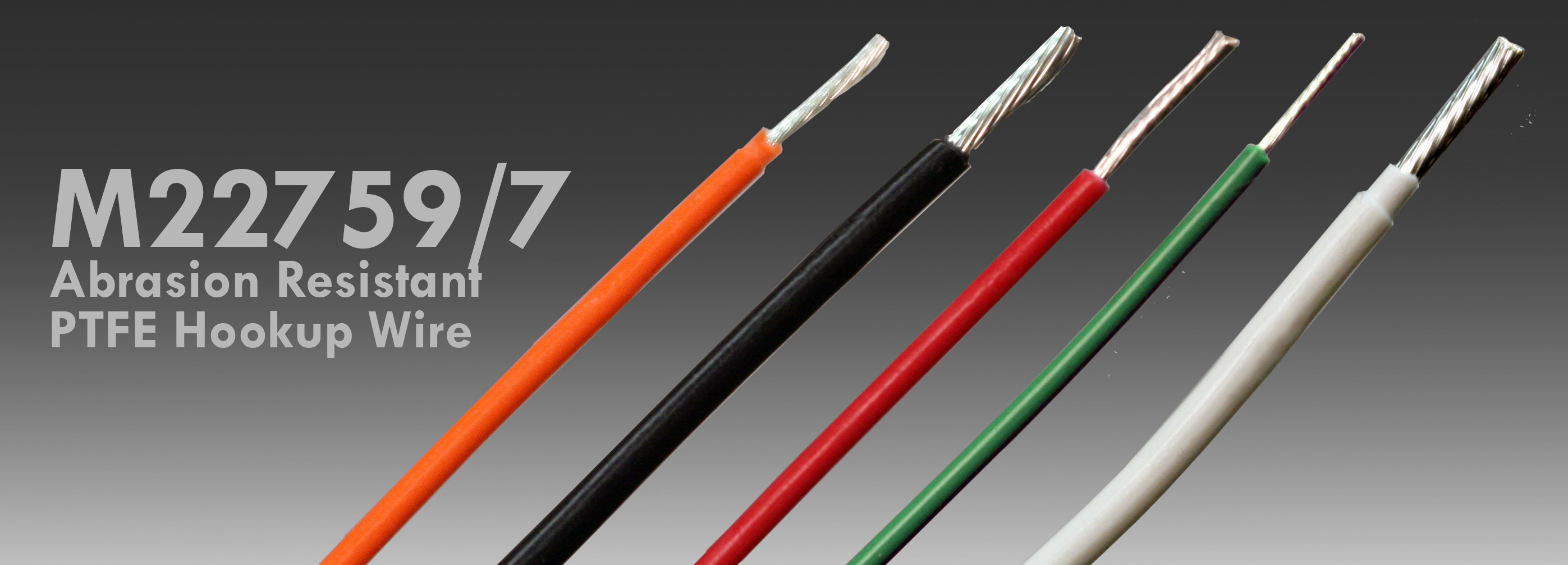

耐磨损聚四氟乙烯镀银铜航空线缆m22759/7-22-0

M22759/7 Wire Construction:



Conductor: Silver Plated Copper

Insulation: Extruded PTFE

M22759/7 Wire Ratings:



mil-w-22759|SAE as22759/7线缆

mil-w-22759/7线缆（m22759/7线缆）

SAE as22759/7

军用规格航空线缆

600V，200°C

mil-w-22759/7线（m22759/7线）特性描述：

导体：渡镍铜导体

绝缘：挤压聚四氟乙烯

mil-w-22759/7线（m22759/7线）的特点：

额定电压：600伏

温度等级：-55°C至200°C

mil-w-22759/7线（m22759/7线）常见的应用：

mil-w-22759/7线可以用在许多应用，例如在航空发动机和任何地方磨损

PART NUMBER AWG Conductor Stranding Approx LBS/MFT Nom. Dia. of Cond. min O.D. (in) Max O.D. (in) Cond. Material Min. Temp Max. Temp Voltage
M22759/7-24-0 24 19/36 4.3 0.024 0.06 0.064 Silver Plated Copper -55°C 200°C 600
M22759/7-24-1 24 19/36 4.3 0.024 0.06 0.064 Silver Plated Copper -55°C 200°C 600
M22759/7-24-2 24 19/36 4.3 0.024 0.06 0.064 Silver Plated Copper -55°C 200°C 600
M22759/7-24-3 24 19/36 4.3 0.024 0.06 0.064 Silver Plated Copper -55°C 200°C 600
M22759/7-24-4 24 19/36 4.3 0.024 0.06 0.064 Silver Plated Copper -55°C 200°C 600
M22759/7-24-5 24 19/36 4.3 0.024 0.06 0.064 Silver Plated Copper -55°C 200°C 600
M22759/7-24-6 24 19/36 4.3 0.024 0.06 0.064 Silver Plated Copper -55°C 200°C 600
M22759/7-24-7 24 19/36 4.3 0.024 0.06 0.064 Silver Plated Copper -55°C 200°C 600
M22759/7-24-8 24 19/36 4.3 0.024 0.06 0.064 Silver Plated Copper -55°C 200°C 600
M22759/7-24-9 24 19/36 4.3 0.024 0.06 0.064 Silver Plated Copper -55°C 200°C 600
M22759/7-22-0 22 19/34 6 0.03 0.071 0.075 Silver Plated Copper -55°C 200°C 600
M22759/7-22-1 22 19/34 6 0.03 0.071 0.075 Silver Plated Copper -55°C 200°C 600
M22759/7-22-2 22 19/34 6 0.03 0.071 0.075 Silver Plated Copper -55°C 200°C 600
M22759/7-22-3 22 19/34 6 0.03 0.071 0.075 Silver Plated Copper -55°C 200°C 600
M22759/7-22-4 22 19/34 6 0.03 0.071 0.075 Silver Plated Copper -55°C 200°C 600
M22759/7-22-5 22 19/34 6 0.03 0.071 0.075 Silver Plated Copper -55°C 200°C 600
M22759/7-22-6 22 19/34 6 0.03 0.071 0.075 Silver Plated Copper -55°C 200°C 600
M22759/7-22-7 22 19/34 6 0.03 0.071 0.075 Silver Plated Copper -55°C 200°C 600
M22759/7-22-8 22 19/34 6 0.03 0.071 0.075 Silver Plated Copper -55°C 200°C 600
M22759/7-22-9 22 19/34 6 0.03 0.071 0.075 Silver Plated Copper -55°C 200°C 600
M22759/7-20-0 20 19/32 8.1 0.036 0.08 0.084 Silver Plated Copper -55°C 200°C 600
M22759/7-20-1 20 19/32 8.1 0.036 0.08 0.084 Silver Plated Copper -55°C 200°C 600
M22759/7-20-2 20 19/32 8.1 0.036 0.08 0.084 Silver Plated Copper -55°C 200°C 600
M22759/7-20-3 20 19/32 8.1 0.036 0.08 0.084 Silver Plated Copper -55°C 200°C 600
M22759/7-20-4 20 19/32 8.1 0.036 0.08 0.084 Silver Plated Copper -55°C 200°C 600
M22759/7-20-5 20 19/32 8.1 0.036 0.08 0.084 Silver Plated Copper -55°C 200°C 600
M22759/7-20-6 20 19/32 8.1 0.036 0.08 0.084 Silver Plated Copper -55°C 200°C 600
M22759/7-20-7 20 19/32 8.1 0.036 0.08 0.084 Silver Plated Copper -55°C 200°C 600
M22759/7-20-8 20 19/32 8.1 0.036 0.08 0.084 Silver Plated Copper -55°C 200°C 600
M22759/7-20-9 20 19/32 8.1 0.036 0.08 0.084 Silver Plated Copper -55°C 200°C 600
M22759/7-18-0 18 19/30 11 0.047 0.09 0.094 Silver Plated Copper -55°C 200°C 600
M22759/7-18-1 18 19/30 11 0.047 0.09 0.094 Silver Plated Copper -55°C 200°C 600
M22759/7-18-2 18 19/30 11 0.047 0.09 0.094 Silver Plated Copper -55°C 200°C 600
M22759/7-18-3 18 19/30 11 0.047 0.09 0.094 Silver Plated Copper -55°C 200°C 600
M22759/7-18-4 18 19/30 11 0.047 0.09 0.094 Silver Plated Copper -55°C 200°C 600
M22759/7-18-5 18 19/30 11 0.047 0.09 0.094 Silver Plated Copper -55°C 200°C 600
M22759/7-18-6 18 19/30 11 0.047 0.09 0.094 Silver Plated Copper -55°C 200°C 600
M22759/7-18-7 18 19/30 11 0.047 0.09 0.094 Silver Plated Copper -55°C 200°C 600
M22759/7-18-8 18 19/30 11 0.047 0.09 0.094 Silver Plated Copper -55°C 200°C 600
M22759/7-18-9 18 19/30 11 0.047 0.09 0.094 Silver Plated Copper -55°C 200°C 600
M22759/7-16-0 16 19/29 13.8 0.053 0.099 0.105 Silver Plated Copper -55°C 200°C 600
M22759/7-16-1 16 19/29 13.8 0.053 0.099 0.105 Silver Plated Copper -55°C 200°C 600
M22759/7-16-2 16 19/29 13.8 0.053 0.099 0.105 Silver Plated Copper -55°C 200°C 600
M22759/7-16-3 16 19/29 13.8 0.053 0.099 0.105 Silver Plated Copper -55°C 200°C 600
M22759/7-16-4 16 19/29 13.8 0.053 0.099 0.105 Silver Plated Copper -55°C 200°C 600
M22759/7-16-5 16 19/29 13.8 0.053 0.099 0.105 Silver Plated Copper -55°C 200°C 600
M22759/7-16-6 16 19/29 13.8 0.053 0.099 0.105 Silver Plated Copper -55°C 200°C 600
M22759/7-16-7 16 19/29 13.8 0.053 0.099 0.105 Silver Plated Copper -55°C 200°C 600
M22759/7-16-8 16 19/29 13.8 0.053 0.099 0.105 Silver Plated Copper -55°C 200°C 600
M22759/7-16-9 16 19/29 13.8 0.053 0.099 0.105 Silver Plated Copper -55°C 200°C 600
M22759/7-14-0 14 19/27 18.6 0.067 0.112 0.118 Silver Plated Copper -55°C 200°C 600
M22759/7-14-1 14 19/27 18.6 0.067 0.112 0.118 Silver Plated Copper -55°C 200°C 600
M22759/7-14-2 14 19/27 18.6 0.067 0.112 0.118 Silver Plated Copper -55°C 200°C 600
M22759/7-14-3 14 19/27 18.6 0.067 0.112 0.118 Silver Plated Copper -55°C 200°C 600
M22759/7-14-4 14 19/27 18.6 0.067 0.112 0.118 Silver Plated Copper -55°C 200°C 600
M22759/7-14-5 14 19/27 18.6 0.067 0.112 0.118 Silver Plated Copper -55°C 200°C 600
M22759/7-14-6 14 19/27 18.6 0.067 0.112 0.118 Silver Plated Copper -55°C 200°C 600
M22759/7-14-7 14 19/27 18.6 0.067 0.112 0.118 Silver Plated Copper -55°C 200°C 600
M22759/7-14-8 14 19/27 18.6 0.067 0.112 0.118 Silver Plated Copper -55°C 200°C 600
M22759/7-14-9 14 19/27 18.6 0.067 0.112 0.118 Silver Plated Copper -55°C 200°C 600
M22759/7-12-0 12 19/25 28.5 0.086 0.131 0.137 Silver Plated Copper -55°C 200°C 600
M22759/7-12-1 12 19/25 28.5 0.086 0.131 0.137 Silver Plated Copper -55°C 200°C 600
M22759/7-12-2 12 19/25 28.5 0.086 0.131 0.137 Silver Plated Copper -55°C 200°C 600
M22759/7-12-3 12 19/25 28.5 0.086 0.131 0.137 Silver Plated Copper -55°C 200°C 600
M22759/7-12-4 12 19/25 28.5 0.086 0.131 0.137 Silver Plated Copper -55°C 200°C 600
M22759/7-12-5 12 19/25 28.5 0.086 0.131 0.137 Silver Plated Copper -55°C 200°C 600
M22759/7-12-6 12 19/25 28.5 0.086 0.131 0.137 Silver Plated Copper -55°C 200°C 600
M22759/7-12-7 12 19/25 28.5 0.086 0.131 0.137 Silver Plated Copper -55°C 200°C 600
M22759/7-12-8 12 19/25 28.5 0.086 0.131 0.137 Silver Plated Copper -55°C 200°C 600
M22759/7-12-9 12 19/25 28.5 0.086 0.131 0.137 Silver Plated Copper -55°C 200°C 600
M22759/7-10-0 10 37/26 41.8 0.108 0.154 0.162 Silver Plated Copper -55°C 200°C 600
M22759/7-10-1 10 37/26 41.8 0.108 0.154 0.162 Silver Plated Copper -55°C 200°C 600
M22759/7-10-2 10 37/26 41.8 0.108 0.154 0.162 Silver Plated Copper -55°C 200°C 600
M22759/7-10-3 10 37/26 41.8 0.108 0.154 0.162 Silver Plated Copper -55°C 200°C 600
M22759/7-10-4 10 37/26 41.8 0.108 0.154 0.162 Silver Plated Copper -55°C 200°C 600
M22759/7-10-5 10 37/26 41.8 0.108 0.154 0.162 Silver Plated Copper -55°C 200°C 600
M22759/7-10-6 10 37/26 41.8 0.108 0.154 0.162 Silver Plated Copper -55°C 200°C 600
M22759/7-10-7 10 37/26 41.8 0.108 0.154 0.162 Silver Plated Copper -55°C 200°C 600
M22759/7-10-8 10 37/26 41.8 0.108 0.154 0.162 Silver Plated Copper -55°C 200°C 600
M22759/7-10-9 10 37/26 41.8 0.108 0.154 0.162 Silver Plated Copper -55°C 200°C 600
M22759/7-8-0 8 133/29 73.1 0.162 0.215 0.225 Silver Plated Copper -55°C 200°C 600
M22759/7-8-1 8 133/29 73.1 0.162 0.215 0.225 Silver Plated Copper -55°C 200°C 600
M22759/7-8-2 8 133/29 73.1 0.162 0.215 0.225 Silver Plated Copper -55°C 200°C 600
M22759/7-8-3 8 133/29 73.1 0.162 0.215 0.225 Silver Plated Copper -55°C 200°C 600
M22759/7-8-4 8 133/29 73.1 0.162 0.215 0.225 Silver Plated Copper -55°C 200°C 600
M22759/7-8-5 8 133/29 73.1 0.162 0.215 0.225 Silver Plated Copper -55°C 200°C 600
M22759/7-8-6 8 133/29 73.1 0.162 0.215 0.225 Silver Plated Copper -55°C 200°C 600
M22759/7-8-7 8 133/29 73.1 0.162 0.215 0.225 Silver Plated Copper -55°C 200°C 600
M22759/7-8-8 8 133/29 73.1 0.162 0.215 0.225 Silver Plated Copper -55°C 200°C 600
M22759/7-8-9 8 133/29 73.1 0.162 0.215 0.225 Silver Plated Copper -55°C 200°C 600
M22759/7-6-0 6 133/27 111 0.21 0.264 0.276 Silver Plated Copper -55°C 200°C 600
M22759/7-6-1 6 133/27 111 0.21 0.264 0.276 Silver Plated Copper -55°C 200°C 600
M22759/7-6-2 6 133/27 111 0.21 0.264 0.276 Silver Plated Copper -55°C 200°C 600
M22759/7-6-3 6 133/27 111 0.21 0.264 0.276 Silver Plated Copper -55°C 200°C 600
M22759/7-6-4 6 133/27 111 0.21 0.264 0.276 Silver Plated Copper -55°C 200°C 600
M22759/7-6-5 6 133/27 111 0.21 0.264 0.276 Silver Plated Copper -55°C 200°C 600
M22759/7-6-6 6 133/27 111 0.21 0.264 0.276 Silver Plated Copper -55°C 200°C 600
M22759/7-6-7 6 133/27 111 0.21 0.264 0.276 Silver Plated Copper -55°C 200°C 600
M22759/7-6-8 6 133/27 111 0.21 0.264 0.276 Silver Plated Copper -55°C 200°C 600
M22759/7-6-9 6 133/27 111 0.21 0.264 0.276 Silver Plated Copper -55°C 200°C 600
M22759/7-4-0 4 133/25 169 0.26 0.321 0.335 Silver Plated Copper -55°C 200°C 600
M22759/7-4-1 4 133/25 169 0.26 0.321 0.335 Silver Plated Copper -55°C 200°C 600
M22759/7-4-2 4 133/25 169 0.26 0.321 0.335 Silver Plated Copper -55°C 200°C 600
M22759/7-4-3 4 133/25 169 0.26 0.321 0.335 Silver Plated Copper -55°C 200°C 600
M22759/7-4-4 4 133/25 169 0.26 0.321 0.335 Silver Plated Copper -55°C 200°C 600
M22759/7-4-5 4 133/25 169 0.26 0.321 0.335 Silver Plated Copper -55°C 200°C 600
M22759/7-4-6 4 133/25 169 0.26 0.321 0.335 Silver Plated Copper -55°C 200°C 600
M22759/7-4-7 4 133/25 169 0.26 0.321 0.335 Silver Plated Copper -55°C 200°C 600
M22759/7-4-8 4 133/25 169 0.26 0.321 0.335 Silver Plated Copper -55°C 200°C 600
M22759/7-4-9 4 133/25 169 0.26 0.321 0.335 Silver Plated Copper -55°C 200°C 600

河南三博电子是一家专业镀银铜线M22759/7航空线缆-三博电子0371-55365505的供应商，我公司经营镀银铜线M22759/7航空线缆-三博电子0371-55365505产品多年，质量口碑可靠。如果您有更多的镀银铜线M22759/7航空线缆-三博电子0371-55365505价格问题，欢迎您联系我们厂家
