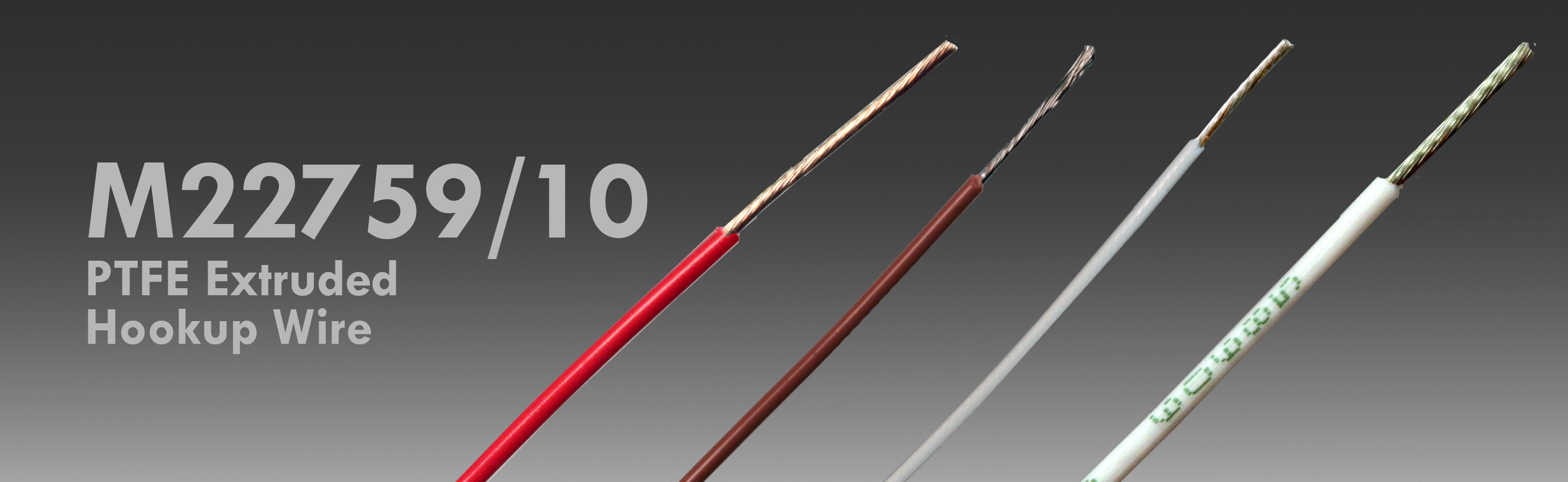

m22759/10系列航空线缆mil-w-22759/10

作者：admin 来源： 日期：2015/9/25 3:23:24

m22759/10航空线缆mil-w-22759/10三博电子供应0371-55365505


m22759航空线缆mil-w-22759/10）

sae-as22759/10

军用规格线缆

m22759/10特性描述：

导体：镀镍铜

绝缘：挤压聚四氟乙烯

m22759/10特性：

额定电压：1000伏

温度等级：-55°C至260°C

m22759/10常见的应用：

mil-w-22759/10可用于航空航天应用领域或其他在高温下，碳烟排放和燃烧收关注的任何应用场合。

PART NUMBER AWG Conductor Stranding Approx LBS/MFT Nom. Dia. of Cond. min O.D. (in) Max O.D. (in) Cond. Material Min. Temp Max. Temp Voltage
M22759/10-28-0 28 7/36 1.9 0.015 0.041 0.045 Nickel Plated Copper -55°C 260°C 1000
M22759/10-28-1 28 7/36 1.9 0.015 0.041 0.045 Nickel Plated Copper -55°C 260°C 1000
M22759/10-28-2 28 7/36 1.9 0.015 0.041 0.045 Nickel Plated Copper -55°C 260°C 1000
M22759/10-28-3 28 7/36 1.9 0.015 0.041 0.045 Nickel Plated Copper -55°C 260°C 1000
M22759/10-28-4 28 7/36 1.9 0.015 0.041 0.045 Nickel Plated Copper -55°C 260°C 1000
M22759/10-28-5 28 7/36 1.9 0.015 0.041 0.045 Nickel Plated Copper -55°C 260°C 1000
M22759/10-28-6 28 7/36 1.9 0.015 0.041 0.045 Nickel Plated Copper -55°C 260°C 1000
M22759/10-28-7 28 7/36 1.9 0.015 0.041 0.045 Nickel Plated Copper -55°C 260°C 1000
M22759/10-28-8 28 7/36 1.9 0.015 0.041 0.045 Nickel Plated Copper -55°C 260°C 1000
M22759/10-28-9 28 7/36 1.9 0.015 0.041 0.045 Nickel Plated Copper -55°C 260°C 1000
M22759/10-26-0 26 19/38 2.6 0.019 0.046 0.05 Nickel Plated Copper -55°C 260°C 1000
M22759/10-26-1 26 19/38 2.6 0.019 0.046 0.05 Nickel Plated Copper -55°C 260°C 1000
M22759/10-26-2 26 19/38 2.6 0.019 0.046 0.05 Nickel Plated Copper -55°C 260°C 1000
M22759/10-26-3 26 19/38 2.6 0.019 0.046 0.05 Nickel Plated Copper -55°C 260°C 1000
M22759/10-26-4 26 19/38 2.6 0.019 0.046 0.05 Nickel Plated Copper -55°C 260°C 1000
M22759/10-26-5 26 19/38 2.6 0.019 0.046 0.05 Nickel Plated Copper -55°C 260°C 1000
M22759/10-26-6 26 19/38 2.6 0.019 0.046 0.05 Nickel Plated Copper -55°C 260°C 1000
M22759/10-26-7 26 19/38 2.6 0.019 0.046 0.05 Nickel Plated Copper -55°C 260°C 1000
M22759/10-26-8 26 19/38 2.6 0.019 0.046 0.05 Nickel Plated Copper -55°C 260°C 1000
M22759/10-26-9 26 19/38 2.6 0.019 0.046 0.05 Nickel Plated Copper -55°C 260°C 1000
M22759/10-24-0 24 19/36 3.3 0.024 0.051 0.055 Nickel Plated Copper -55°C 260°C 1000
M22759/10-24-1 24 19/36 3.3 0.024 0.051 0.055 Nickel Plated Copper -55°C 260°C 1000
M22759/10-24-2 24 19/36 3.3 0.024 0.051 0.055 Nickel Plated Copper -55°C 260°C 1000
M22759/10-24-3 24 19/36 3.3 0.024 0.051 0.055 Nickel Plated Copper -55°C 260°C 1000
M22759/10-24-4 24 19/36 3.3 0.024 0.051 0.055 Nickel Plated Copper -55°C 260°C 1000
M22759/10-24-5 24 19/36 3.3 0.024 0.051 0.055 Nickel Plated Copper -55°C 260°C 1000
M22759/10-24-6 24 19/36 3.3 0.024 0.051 0.055 Nickel Plated Copper -55°C 260°C 1000
M22759/10-24-7 24 19/36 3.3 0.024 0.051 0.055 Nickel Plated Copper -55°C 260°C 1000
M22759/10-24-8 24 19/36 3.3 0.024 0.051 0.055 Nickel Plated Copper -55°C 260°C 1000
M22759/10-24-9 24 19/36 3.3 0.024 0.051 0.055 Nickel Plated Copper -55°C 260°C 1000
M22759/10-22-0 22 19/34 4.6 0.03 0.062 0.062 Nickel Plated Copper -55°C 260°C 1000
M22759/10-22-1 22 19/34 4.6 0.03 0.058 0.062 Nickel Plated Copper -55°C 260°C 1000
M22759/10-22-2 22 19/34 4.6 0.03 0.058 0.062 Nickel Plated Copper -55°C 260°C 1000
M22759/10-22-3 22 19/34 4.6 0.03 0.058 0.062 Nickel Plated Copper -55°C 260°C 1000
M22759/10-22-4 22 19/34 4.6 0.03 0.058 0.062 Nickel Plated Copper -55°C 260°C 1000
M22759/10-22-5 22 19/34 4.6 0.03 0.058 0.062 Nickel Plated Copper -55°C 260°C 1000
M22759/10-22-6 22 19/34 4.6 0.03 0.058 0.062 Nickel Plated Copper -55°C 260°C 1000
M22759/10-22-7 22 19/34 4.6 0.03 0.058 0.062 Nickel Plated Copper -55°C 260°C 1000
M22759/10-22-8 22 19/34 4.6 0.03 0.058 0.062 Nickel Plated Copper -55°C 260°C 1000
M22759/10-22-9 22 19/34 4.6 0.03 0.058 0.062 Nickel Plated Copper -55°C 260°C 1000
M22759/10-20-0 20 19/32 6.4 0.038 0.066 0.07 Nickel Plated Copper -55°C 260°C 1000
M22759/10-20-1 20 19/32 6.4 0.038 0.066 0.07 Nickel Plated Copper -55°C 260°C 1000
M22759/10-20-2 20 19/32 6.4 0.038 0.066 0.07 Nickel Plated Copper -55°C 260°C 1000
M22759/10-20-3 20 19/32 6.4 0.038 0.066 0.07 Nickel Plated Copper -55°C 260°C 1000
M22759/10-20-4 20 19/32 6.4 0.038 0.066 0.07 Nickel Plated Copper -55°C 260°C 1000
M22759/10-20-5 20 19/32 6.4 0.038 0.066 0.07 Nickel Plated Copper -55°C 260°C 1000
M22759/10-20-6 20 19/32 6.4 0.038 0.066 0.07 Nickel Plated Copper -55°C 260°C 1000
M22759/10-20-7 20 19/32 6.4 0.038 0.066 0.07 Nickel Plated Copper -55°C 260°C 1000
M22759/10-20-8 20 19/32 6.4 0.038 0.066 0.07 Nickel Plated Copper -55°C 260°C 1000
M22759/10-20-9 20 19/32 6.4 0.038 0.066 0.07 Nickel Plated Copper -55°C 260°C 1000
M22759/10-18-0 18 19/30 9.1 0.047 0.076 0.08 Nickel Plated Copper -55°C 260°C 1000
M22759/10-18-1 18 19/30 9.1 0.047 0.076 0.08 Nickel Plated Copper -55°C 260°C 1000
M22759/10-18-2 18 19/30 9.1 0.047 0.076 0.08 Nickel Plated Copper -55°C 260°C 1000
M22759/10-18-3 18 19/30 9.1 0.047 0.076 0.08 Nickel Plated Copper -55°C 260°C 1000
M22759/10-18-4 18 19/30 9.1 0.047 0.076 0.08 Nickel Plated Copper -55°C 260°C 1000
M22759/10-18-5 18 19/30 9.1 0.047 0.076 0.08 Nickel Plated Copper -55°C 260°C 1000
M22759/10-18-6 18 19/30 9.1 0.047 0.076 0.08 Nickel Plated Copper -55°C 260°C 1000
M22759/10-18-7 18 19/30 9.1 0.047 0.076 0.08 Nickel Plated Copper -55°C 260°C 1000
M22759/10-18-8 18 19/30 9.1 0.047 0.076 0.08 Nickel Plated Copper -55°C 260°C 1000
M22759/10-18-9 18 19/30 9.1 0.047 0.076 0.08 Nickel Plated Copper -55°C 260°C 1000
M22759/10-16-0 16 19/29 11 0.053 0.083 0.087 Nickel Plated Copper -55°C 260°C 1000
M22759/10-16-1 16 19/29 11 0.053 0.083 0.087 Nickel Plated Copper -55°C 260°C 1000
M22759/10-16-2 16 19/29 11 0.053 0.083 0.087 Nickel Plated Copper -55°C 260°C 1000
M22759/10-16-3 16 19/29 11 0.053 0.083 0.087 Nickel Plated Copper -55°C 260°C 1000
M22759/10-16-4 16 19/29 11 0.053 0.083 0.087 Nickel Plated Copper -55°C 260°C 1000
M22759/10-16-5 16 19/29 11 0.053 0.083 0.087 Nickel Plated Copper -55°C 260°C 1000
M22759/10-16-6 16 19/29 11 0.053 0.083 0.087 Nickel Plated Copper -55°C 260°C 1000
M22759/10-16-7 16 19/29 11 0.053 0.083 0.087 Nickel Plated Copper -55°C 260°C 1000
M22759/10-16-8 16 19/29 11 0.053 0.083 0.087 Nickel Plated Copper -55°C 260°C 1000
M22759/10-16-9 16 19/29 11 0.053 0.083 0.087 Nickel Plated Copper -55°C 260°C 1000
M22759/10-14-0 14 19/27 16.4 0.067 0.097 0.103 Nickel Plated Copper -55°C 260°C 1000
M22759/10-14-1 14 19/27 16.4 0.067 0.097 0.103 Nickel Plated Copper -55°C 260°C 1000
M22759/10-14-2 14 19/27 16.4 0.067 0.097 0.103 Nickel Plated Copper -55°C 260°C 1000
M22759/10-14-3 14 19/27 16.4 0.067 0.097 0.103 Nickel Plated Copper -55°C 260°C 1000
M22759/10-14-4 14 19/27 16.4 0.067 0.097 0.103 Nickel Plated Copper -55°C 260°C 1000
M22759/10-14-5 14 19/27 16.4 0.067 0.097 0.103 Nickel Plated Copper -55°C 260°C 1000
M22759/10-14-6 14 19/27 16.4 0.067 0.097 0.103 Nickel Plated Copper -55°C 260°C 1000
M22759/10-14-7 14 19/27 16.4 0.067 0.097 0.103 Nickel Plated Copper -55°C 260°C 1000
M22759/10-14-8 14 19/27 16.4 0.067 0.097 0.103 Nickel Plated Copper -55°C 260°C 1000
M22759/10-14-9 14 19/27 16.4 0.067 0.097 0.103 Nickel Plated Copper -55°C 260°C 1000
M22759/10-12-0 12 19/25 25.3 0.086 0.116 0.124 Nickel Plated Copper -55°C 260°C 1000
M22759/10-12-1 12 19/25 25.3 0.086 0.116 0.124 Nickel Plated Copper -55°C 260°C 1000
M22759/10-12-2 12 19/25 25.3 0.086 0.116 0.124 Nickel Plated Copper -55°C 260°C 1000
M22759/10-12-3 12 19/25 25.3 0.086 0.116 0.124 Nickel Plated Copper -55°C 260°C 1000
M22759/10-12-4 12 19/25 25.3 0.086 0.116 0.124 Nickel Plated Copper -55°C 260°C 1000
M22759/10-12-5 12 19/25 25.3 0.086 0.116 0.124 Nickel Plated Copper -55°C 260°C 1000
M22759/10-12-6 12 19/25 25.3 0.086 0.116 0.124 Nickel Plated Copper -55°C 260°C 1000
M22759/10-12-7 12 19/25 25.3 0.086 0.116 0.124 Nickel Plated Copper -55°C 260°C 1000
M22759/10-12-8 12 19/25 25.3 0.086 0.116 0.124 Nickel Plated Copper -55°C 260°C 1000
M22759/10-12-9 12 19/25 25.3 0.086 0.116 0.124 Nickel Plated Copper -55°C 260°C 1000
M22759/10-10-0 10 37/26 38.2 0.109 0.137 0.145 Nickel Plated Copper -55°C 260°C 1000
M22759/10-10-1 10 37/26 38.2 0.109 0.137 0.145 Nickel Plated Copper -55°C 260°C 1000
M22759/10-10-2 10 37/26 38.2 0.109 0.137 0.145 Nickel Plated Copper -55°C 260°C 1000
M22759/10-10-3 10 37/26 38.2 0.109 0.137 0.145 Nickel Plated Copper -55°C 260°C 1000
M22759/10-10-4 10 37/26 38.2 0.109 0.137 0.145 Nickel Plated Copper -55°C 260°C 1000
M22759/10-10-5 10 37/26 38.2 0.109 0.137 0.145 Nickel Plated Copper -55°C 260°C 1000
M22759/10-10-6 10 37/26 38.2 0.109 0.137 0.145 Nickel Plated Copper -55°C 260°C 1000
M22759/10-10-7 10 37/26 38.2 0.109 0.137 0.145 Nickel Plated Copper -55°C 260°C 1000
M22759/10-10-8 10 37/26 38.2 0.109 0.137 0.145 Nickel Plated Copper -55°C 260°C 1000
M22759/10-10-9 10 37/26 38.2 0.109 0.137 0.145 Nickel Plated Copper -55°C 260°C 1000
M22759/10-8-0 8 133/29 68.8 0.163 0.202 0.212 Nickel Plated Copper -55°C 260°C 1000
M22759/10-8-1 8 133/29 68.8 0.163 0.202 0.212 Nickel Plated Copper -55°C 260°C 1000
M22759/10-8-2 8 133/29 68.8 0.163 0.202 0.212 Nickel Plated Copper -55°C 260°C 1000
M22759/10-8-3 8 133/29 68.8 0.163 0.202 0.212 Nickel Plated Copper -55°C 260°C 1000
M22759/10-8-4 8 133/29 68.8 0.163 0.202 0.212 Nickel Plated Copper -55°C 260°C 1000
M22759/10-8-5 8 133/29 68.8 0.163 0.202 0.212 Nickel Plated Copper -55°C 260°C 1000
M22759/10-8-6 8 133/29 68.8 0.163 0.202 0.212 Nickel Plated Copper -55°C 260°C 1000
M22759/10-8-7 8 133/29 68.8 0.163 0.202 0.212 Nickel Plated Copper -55°C 260°C 1000
M22759/10-8-8 8 133/29 68.8 0.163 0.202 0.212 Nickel Plated Copper -55°C 260°C 1000
M22759/10-8-9 8 133/29 68.8 0.163 0.202 0.212 Nickel Plated Copper -55°C 260°C 1000

河南三博电子是一家专业m22759/10系列航空线缆mil-w-22759/10的供应商，我公司经营m22759/10系列航空线缆mil-w-22759/10产品多年，质量口碑可靠。如果您有更多的m22759/10系列航空线缆mil-w-22759/10价格问题，欢迎您联系我们厂家
